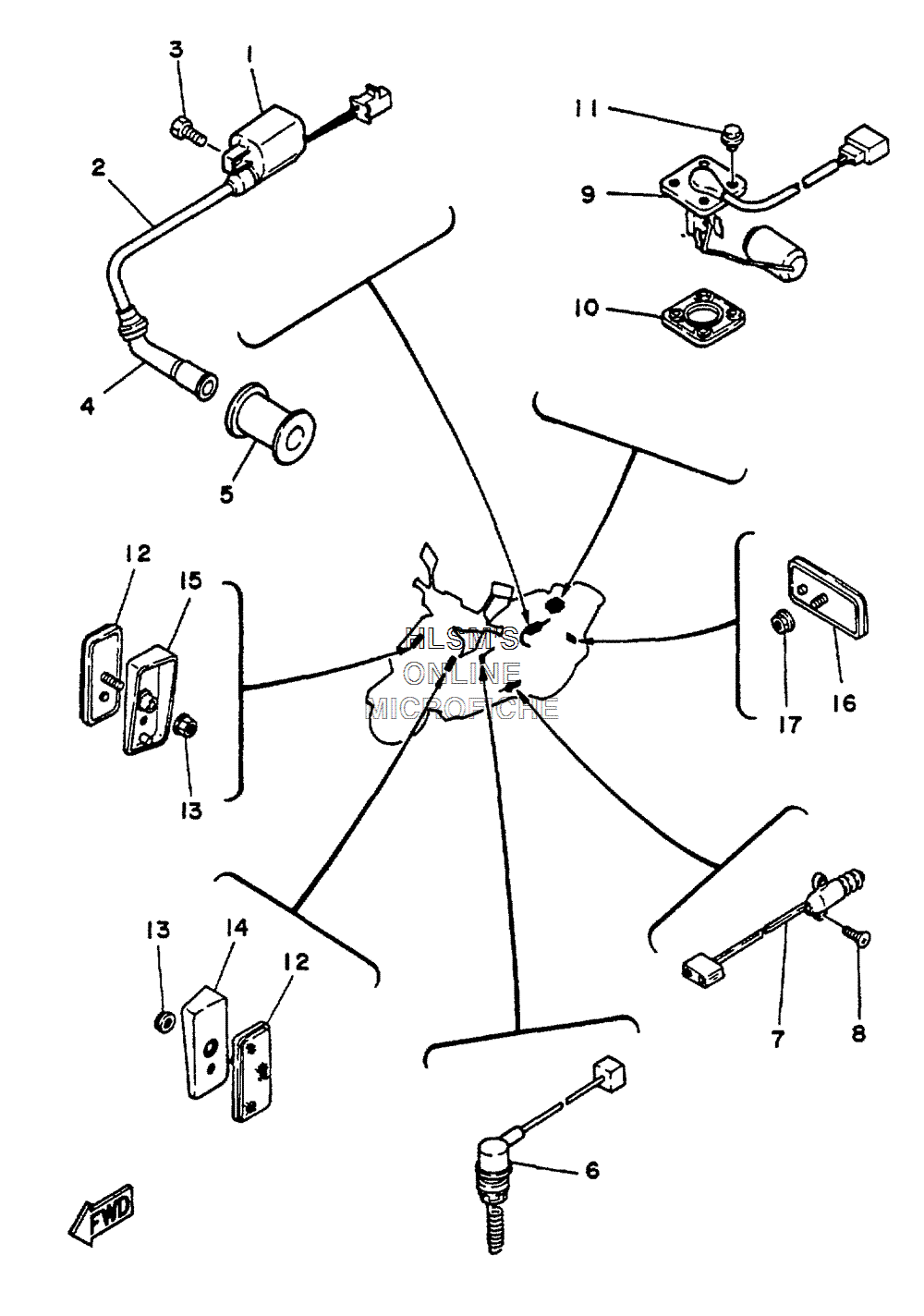

ELECTRICAL 2 для Yamaha RIVA 125 - 2000 года выпуска`
-
№АртикулНазвание
-
125G-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
2137-82341-01-00 CORD, HIGHT TENSION 1CORD, HIGHT TENSION 1
-
397017-06020-00 BOLTBOLT
-
433M-82370-01-00 PLUG CAP ASSYPLUG CAP ASSY
-
550M-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
650W-82530-02-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
750M-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
890152-05020-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
950W-85752-00-00 SENDER UNIT ASSY FUEL METERSENDER UNIT ASSY FUEL METER
-
105G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
1190119-05070-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1250M-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
1395707-05500-00 NUT, FLANGENUT, FLANGE
-
1450M-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
1550M-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
163Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
