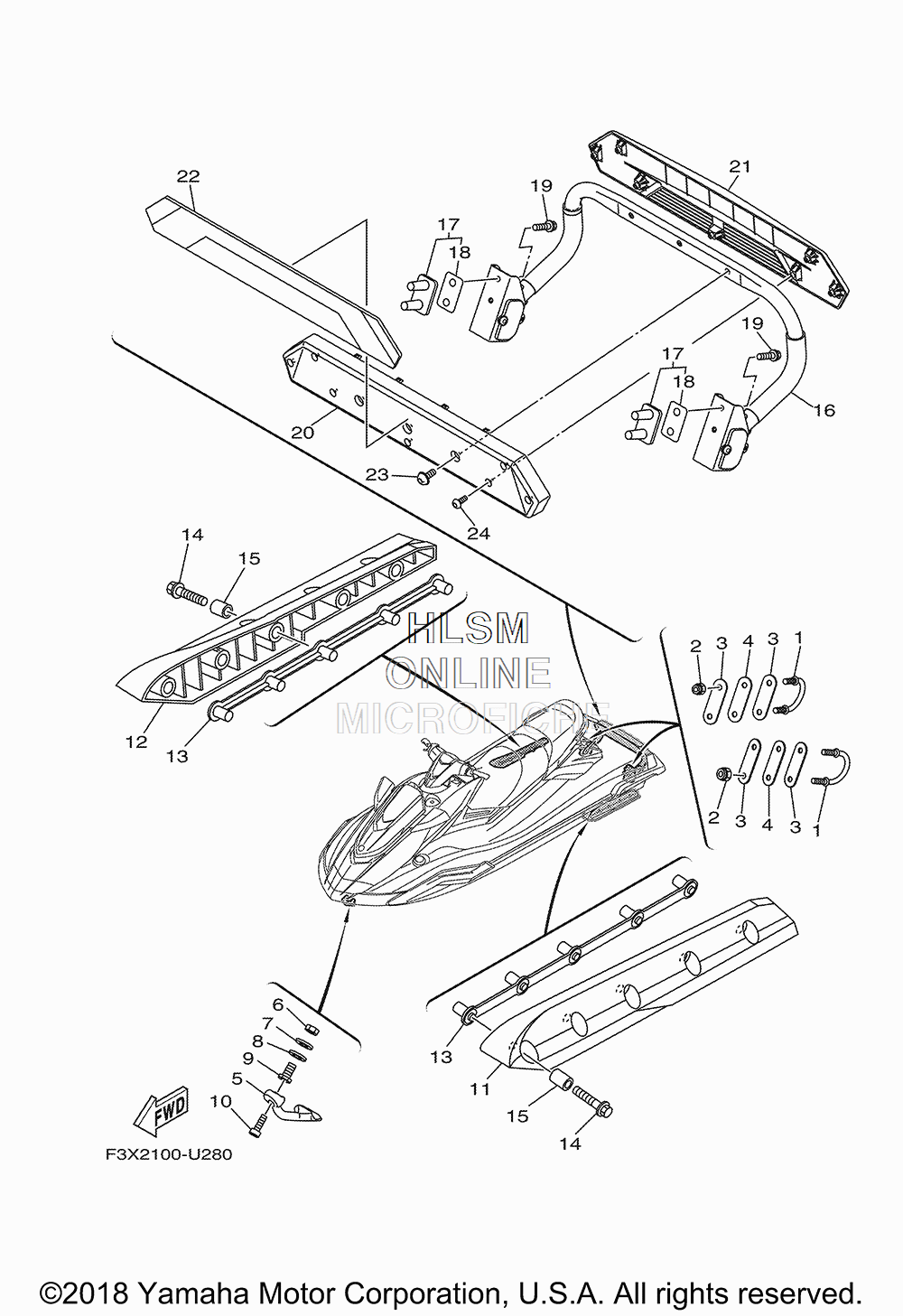

HULL FITTINGS W/ SPONSONS для Yamaha FX HO - 2019 года выпуска`
-
№АртикулНазвание
-
1F2N-U1628-02-00 STERN EYESTERN EYE
-
29572R-08300-00 NUT, FLANGENUT, FLANGE
-
3GP7-U4953-10-00 PLATE APLATE A
-
4F1B-U1653-02-00 PACKINGPACKING
-
5F1K-61624-00-00 BOW EYE 1BOW EYE 1
-
699780-12600-00 NUT. HEX.(COARS)NUT. HEX.(COARS)
-
792990-12200-00 WASHER, PLAINWASHER, PLAIN
-
8F0X-61637-00-00 WASHERWASHER
-
9F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
1090110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
11F1S-U883N-01-00 STABILIZER (LEFT HAND) (BLACK)STABILIZER (LEFT HAND) (BLACK)
-
12F1S-U883P-01-00 STABILIZER (RIGHT HAND) (BLACK)STABILIZER (RIGHT HAND) (BLACK)
-
13F1X-U883T-01-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
1490105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
15F2N-U8169-00-00 SPACERSPACER
-
16F3X-U278A-00-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
17F2S-U278F-00-00 BRACKET, LADDER (LEFT HAND)BRACKET, LADDER (LEFT HAND)
-
18F2S-U278H-00-00 ...PACKING, BRKT. 1...PACKING, BRKT. 1
-
1990119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
20F3X-U882F-00-00 STEPSTEP
-
21F3X-U884R-00-00 PLATE, STEP 1PLATE, STEP 1
-
22F3X-U4994-10-00 COVER STEP 1COVER STEP 1
-
2390119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24F2S-U13C1-00-00 SCREWSCREW
