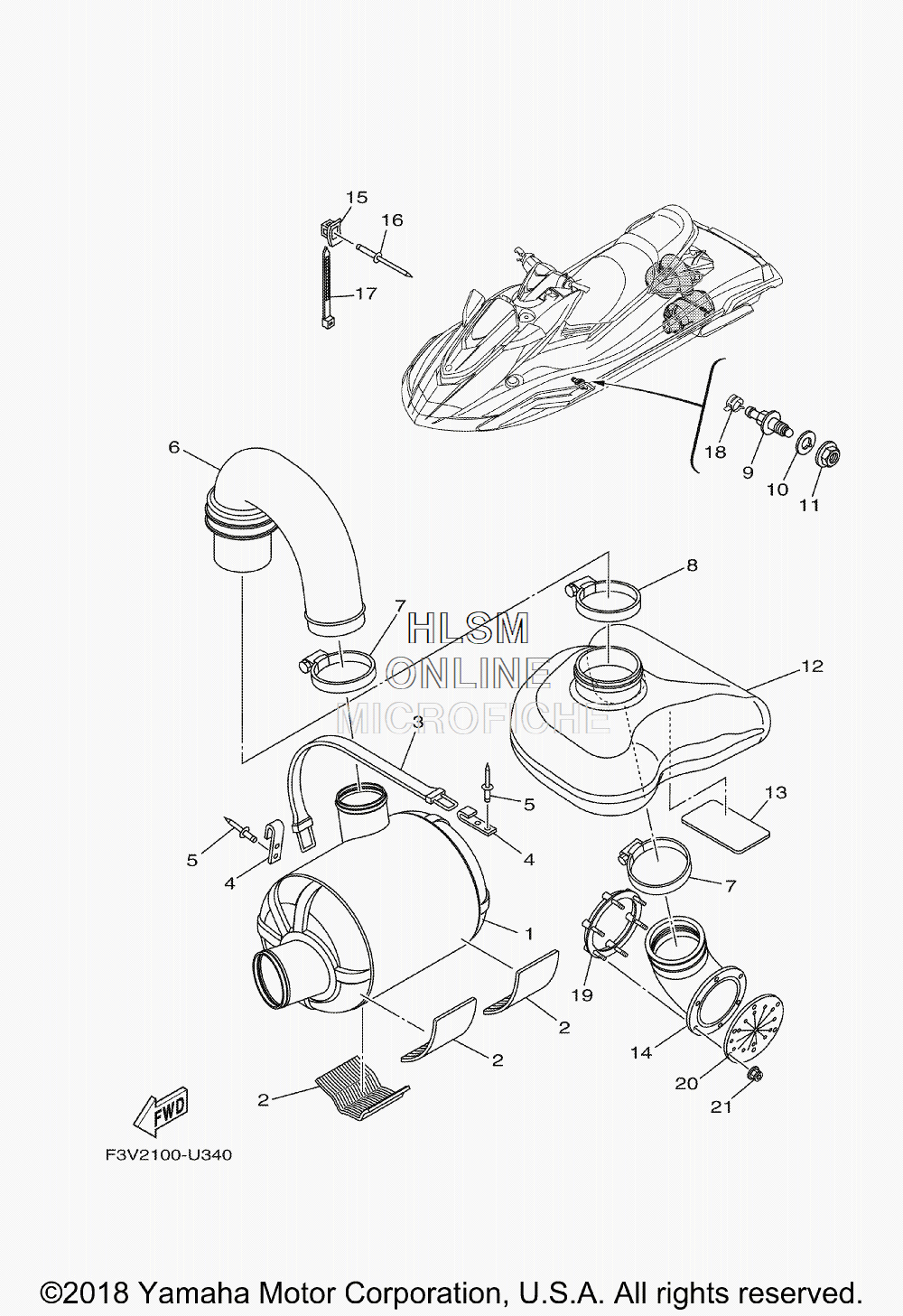

EXHAUST - WATER BOX для Yamaha FX HO - 2019 года выпуска`
-
№АртикулНазвание
-
1F1W-U7550-02-00 WATER LOCK COMP.WATER LOCK COMP.
-
2F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
3EW2-67821-00-00 BAND, FUEL TANKBAND, FUEL TANK
-
4GA7-65772-00-00 HOOK AHOOK A
-
590267-489U1-00 RIVET, BLINDRIVET, BLIND
-
6F3X-U7555-00-00 HOSE, EXHAUSTHOSE, EXHAUST
-
790450-99801-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
890450-99804-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
9F2C-U753B-01-00 PILOT, WATERPILOT, WATER
-
10F2C-U7564-00-00 GASKETGASKET
-
11F2C-U2733-00-00 NUTNUT
-
12F3X-U4261-00-00 TANK, WATERTANK, WATER
-
13F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
14F3X-U758D-00-00 HOSE, EXHAUST 3HOSE, EXHAUST 3
-
15F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1690464-32801-00 CLAMPCLAMP
-
1790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1890467-150A5-00 CLIPCLIP
-
19F1S-U757B-01-00 PLATEPLATE
-
20F1B-U751G-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
21F2N-U142L-00-00 NUT, LOCKNUT, LOCK
