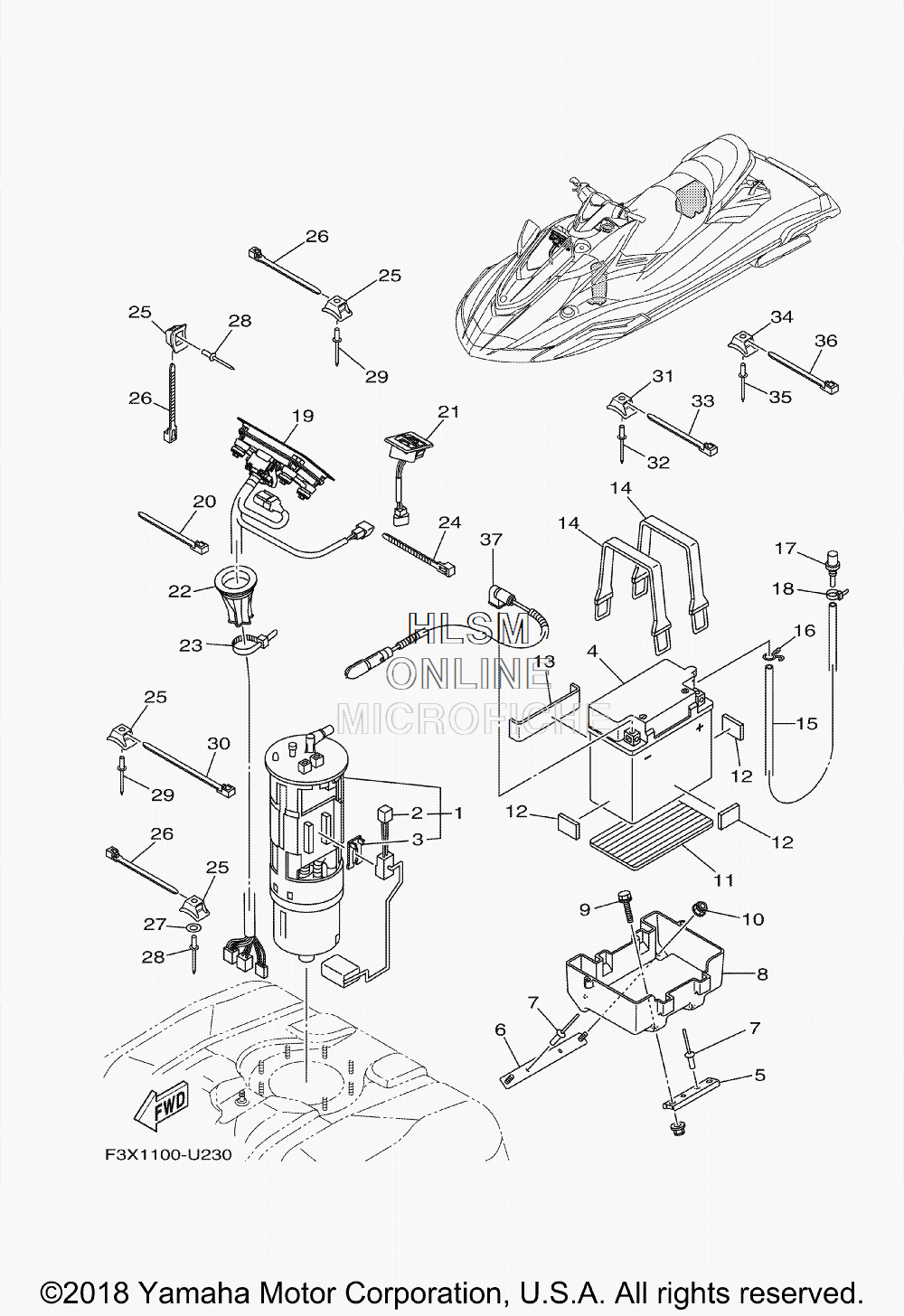

ELECTRICAL - BATTERY для Yamaha FX HO - 2019 года выпуска`
-
№АртикулНазвание
-
16S5-13907-02-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
26S5-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
4EU0-U8217-H2-00 BATTERY (YB16CL-B)BATTERY (YB16CL-B)
-
5F2S-U8592-00-00 PLATE, BASE 2PLATE, BASE 2
-
6F2S-U8593-00-00 PLATE, BASE 3PLATE, BASE 3
-
790267-489U1-00 RIVET,BLINDRIVET,BLIND
-
8F2S-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
990119-06832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
11F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
12EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
13F1K-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
14EU0-U821D-00-00 BAND, BATTERY 1BAND, BATTERY 1
-
15F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1690467-089U1-00 CLIPCLIP
-
17GJ3-6215F-00-00 NIPPLENIPPLE
-
1890465-11829-00 CLAMPCLAMP
-
19F3X-U820A-00-00 METER ASSYMETER ASSY
-
2090464-32801-00 CLAMPCLAMP
-
21F3X-68090-00-00 SWITCH ASSYSWITCH ASSY
-
22F3J-U822E-00-00 GROMMETGROMMET
-
2390464-32801-00 CLAMPCLAMP
-
2490464-32801-00 CLAMPCLAMP
-
25F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2690464-32801-00 CLAMPCLAMP
-
279299R-05200-00 WASHERWASHER
-
2890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2990267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3090464-99804-00 CLAMPCLAMP
-
31F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3390464-32801-00 CLAMPCLAMP
-
34F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3690464-32801-00 CLAMPCLAMP
-
376S5-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
