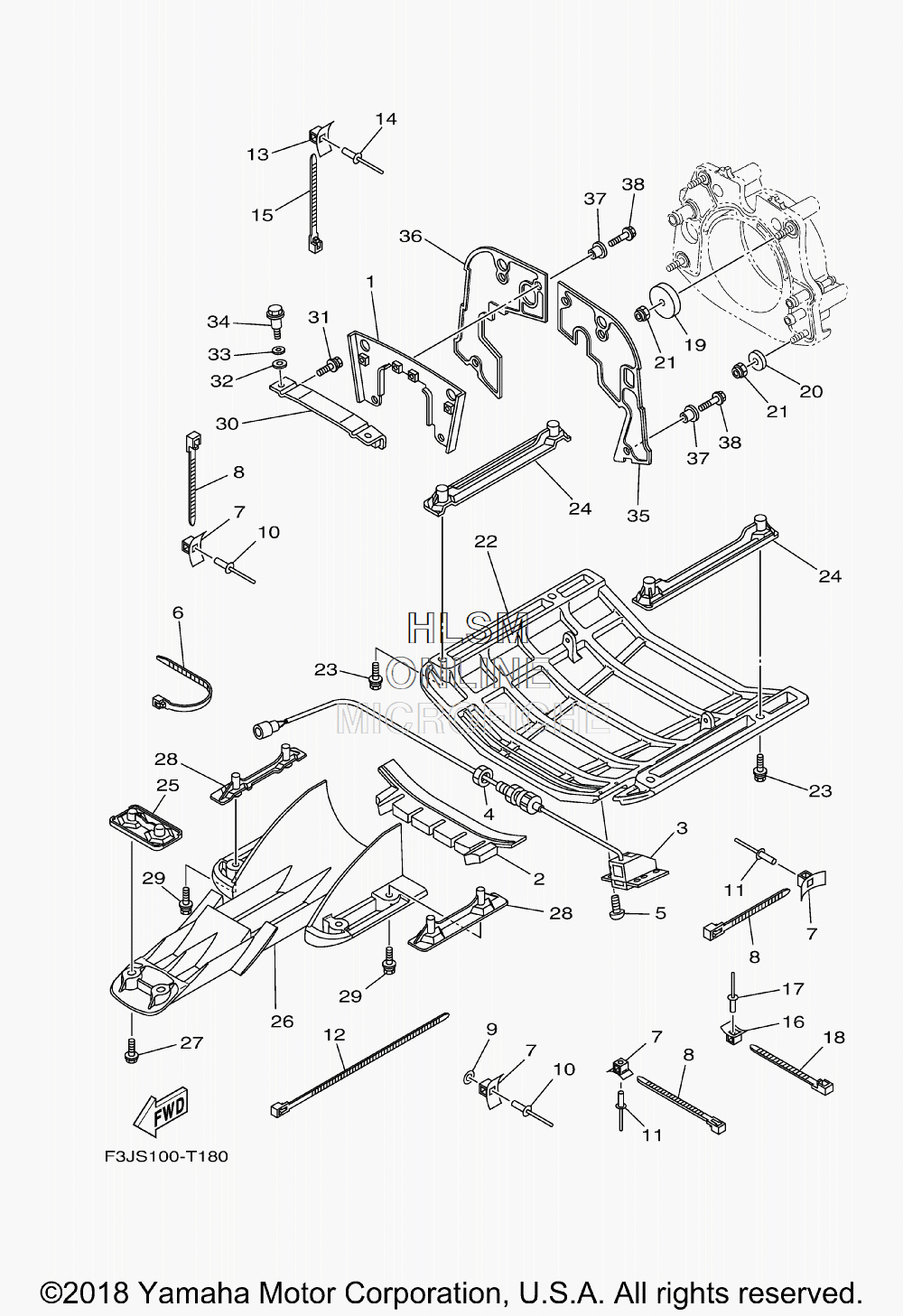

INTAKE AND RIDE PLATE ASSY для Yamaha FX SVHO - 2018 года выпуска`
-
№АртикулНазвание
-
16ET-R1959-00-00 BRACKETBRACKET
-
2F2S-U72C0-01-00 SPACERSPACER
-
3F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
4F2C-U151S-00-00 NUTNUT
-
590150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
690464-32801-00 CLAMPCLAMP
-
7F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
890464-32801-00 CLAMPCLAMP
-
99299R-05200-00 WASHERWASHER
-
1090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1190267-48806-00 RIVET, BLINDRIVET, BLIND
-
1290464-99801-00 CLAMPCLAMP
-
13F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1490267-48806-00 RIVET, BLINDRIVET, BLIND
-
1590464-32801-00 CLAMPCLAMP
-
16F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1790267-48806-00 RIVET, BLINDRIVET, BLIND
-
1890464-32801-00 CLAMPCLAMP
-
19F1S-U725E-01-00 WASHERWASHER
-
2090201-10801-00 WASHER, PLATEWASHER, PLATE
-
219572R-10300-00 NUT, NYLONNUT, NYLON
-
22F3J-6273B-00-00 PLATE 2PLATE 2
-
2390119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24F1B-U8572-01-00 BRACKET 2BRACKET 2
-
25F2S-U8577-00-00 BRACKET, 3BRACKET, 3
-
266ET-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
2790119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
28F1G-U8571-02-00 BRACKET 1BRACKET 1
-
2990119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F2C-U7557-01-00 BRACKETBRACKET
-
3190119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290430-12002-00 GASKETGASKET
-
3392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
3490109-08041-00 BOLTBOLT
-
35F3J-U757E-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
36F3J-U757F-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
3790387-06080-00 COLLARCOLLAR
-
3890119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
