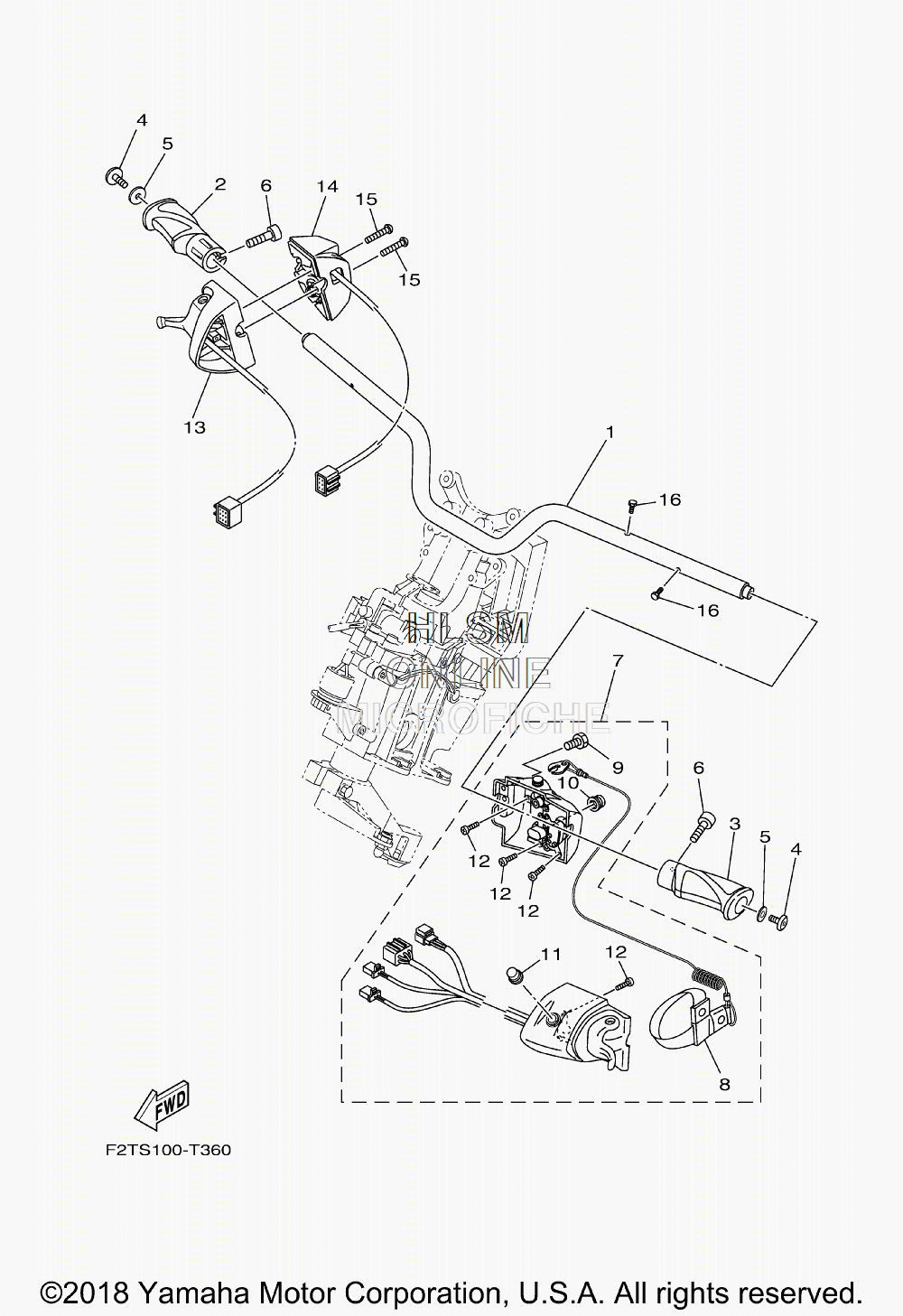

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha FX SVHO - 2018 года выпуска`
-
№АртикулНазвание
-
1F3J-U1552-00-00 HANDLEHANDLE
-
2F2S-U155D-02-00 GRIP, HANDLEGRIP, HANDLE
-
3F2S-U155D-02-00 GRIP, HANDLEGRIP, HANDLE
-
490110-06382-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590201-068G0-00 WASHER, PLATEWASHER, PLATE
-
6F2S-U1516-00-00 BOLTBOLT
-
7F3J-68310-00-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
8EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
96CS-6725F-00-00 ...BOLT, THROTTLE...BOLT, THROTTLE
-
10FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
11FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1297780-30610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
136CS-14305-10-00 THROTTLE LEVER COMPTHROTTLE LEVER COMP
-
146CS-81860-00-00 SWITCH ASSYSWITCH ASSY
-
156CS-6725F-00-00 BOLT, THROTTLEBOLT, THROTTLE
-
1691380-04030-00 BOLTBOLT
