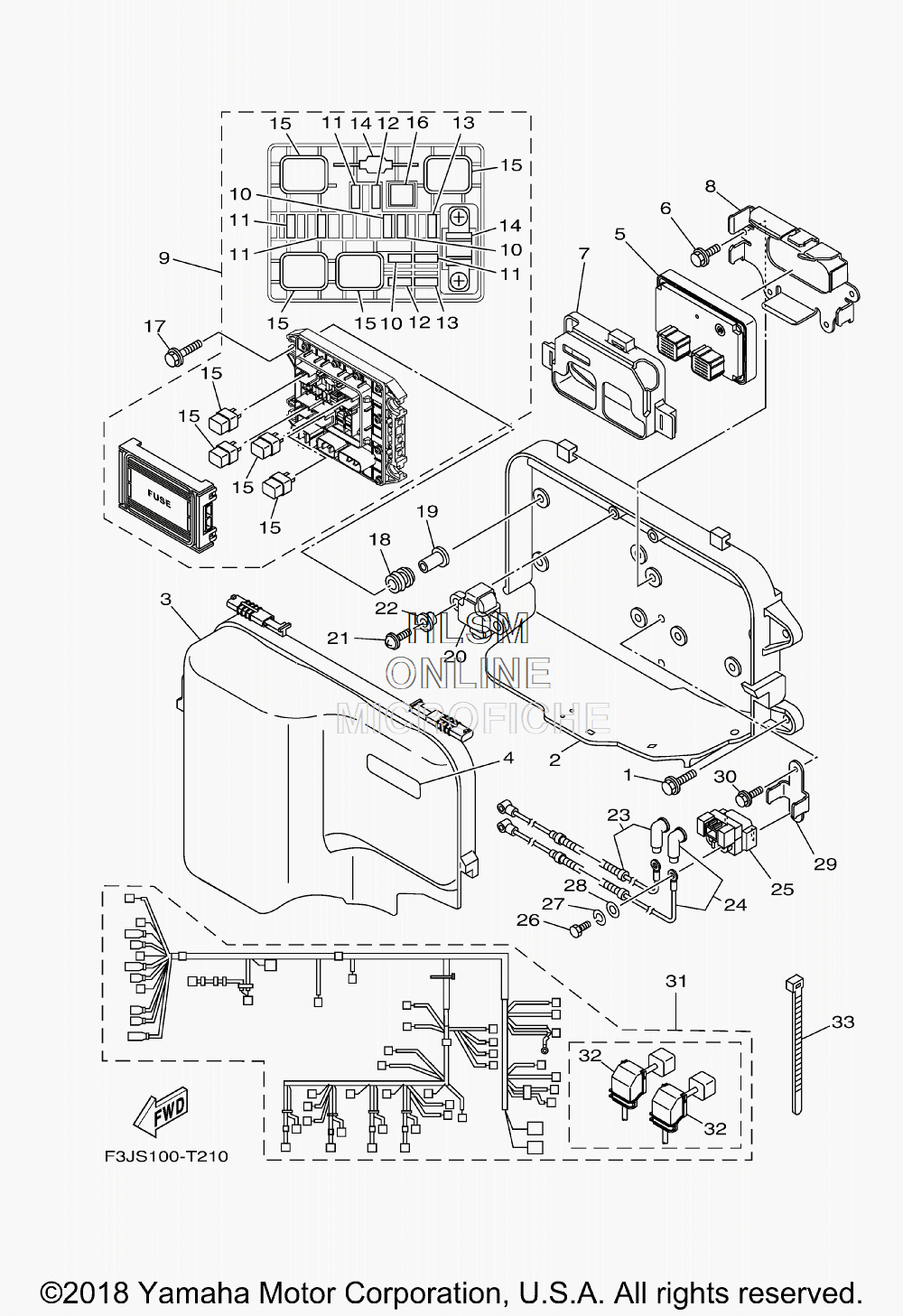

ELECTRICAL 1 для Yamaha FX SVHO - 2018 года выпуска`
-
№АртикулНазвание
-
190119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26CS-81845-10-00 PLATEPLATE
-
36S5-81942-20-00 COVERCOVER
-
460E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
56ET-8591A-40-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
695814-06012-00 BOLT, FLANGEBOLT, FLANGE
-
76EY-8591S-00-00 GROMMET, ECUGROMMET, ECU
-
86ET-81948-00-00 BRACKETBRACKET
-
96EX-82170-01-00 FUSE BOX ASSYFUSE BOX ASSY
-
1067F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
1167F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
1267F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
1367F-82151-10-00 ...FUSE (30A)...FUSE (30A)
-
146EX-82151-00-00 ...FUSE (50A)...FUSE (50A)
-
156EX-8195A-00-00 ...RELAY ASSY...RELAY ASSY
-
166EX-2812A-00-00 ...PULLER, FUSE...PULLER, FUSE
-
1790119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
186A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
1990387-06119-00 COLLARCOLLAR
-
206ET-82576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2197780-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
2290387-06M05-00 COLLARCOLLAR
-
236CS-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
246CS-82117-00-00 WIRE, LEADWIRE, LEAD
-
251B7-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2697095-06012-00 BOLTBOLT
-
2792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2892995-06600-00 WASHERWASHER
-
296CS-81953-00-00 STAY, RELAYSTAY, RELAY
-
3095814-06012-00 BOLT, FLANGEBOLT, FLANGE
-
316ET-8259L-10-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
326EM-82599-00-00 ...COVER, CONNECTER...COVER, CONNECTER
-
3390465-14M66-00 CLAMPCLAMP
