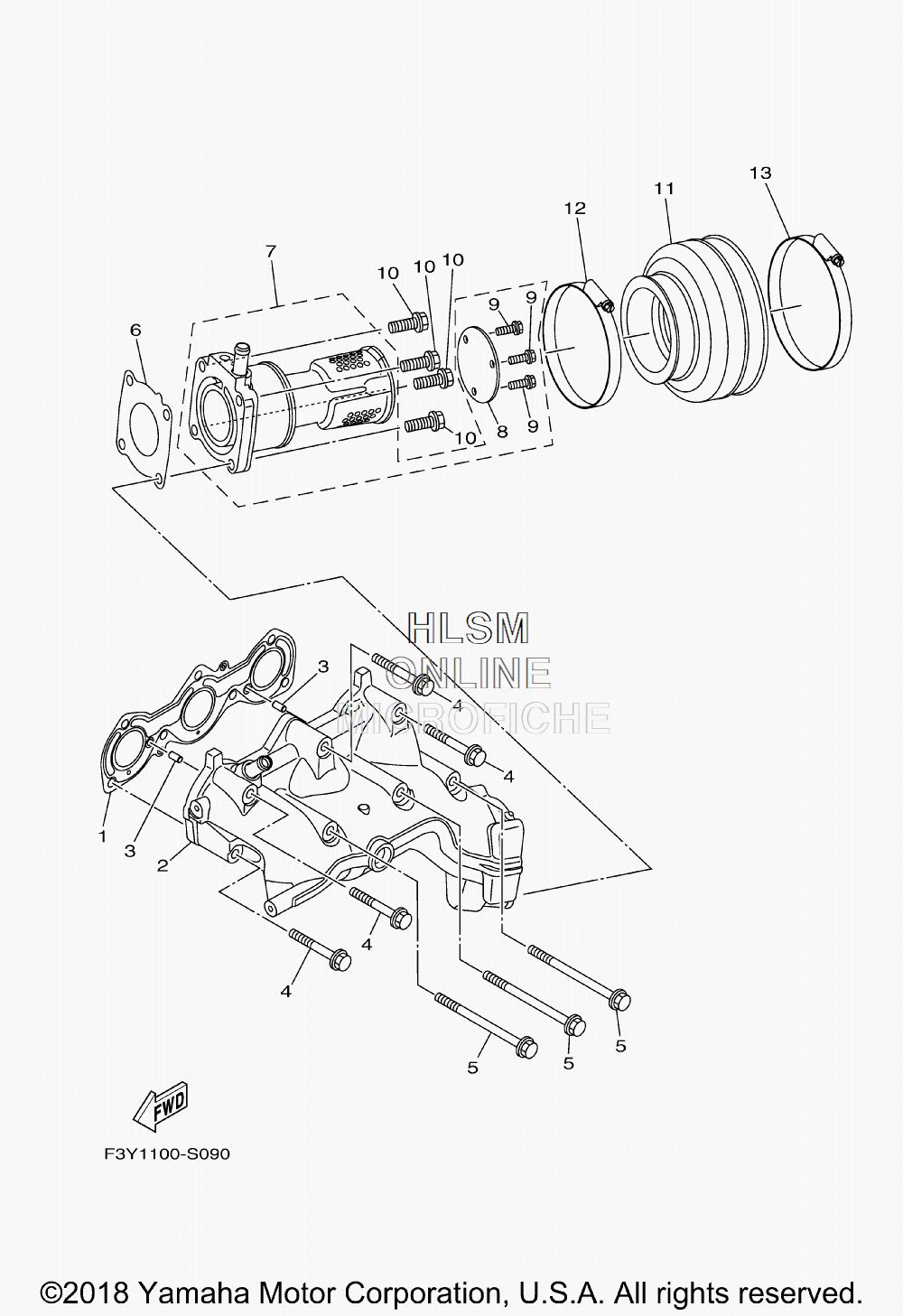

EXHAUST SYSTEM для Yamaha EX - 2018 года выпуска`
-
№АртикулНазвание
-
16GA-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
26GA-14711-00-00 MUFFLER 1MUFFLER 1
-
393606-12019-00 PIN, DOWELPIN, DOWEL
-
490119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-08097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
66GA-14739-00-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
76GA-14784-00-00 PIPE, TAILPIPE, TAIL
-
86GA-1469W-00-00 ...PLATE, SILENCER 6...PLATE, SILENCER 6
-
995024-06016-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
1095024-08030-00 BOLT,FLG,(SMALL HEAD)BOLT,FLG,(SMALL HEAD)
-
116GA-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
1290450-99015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390450-99017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
