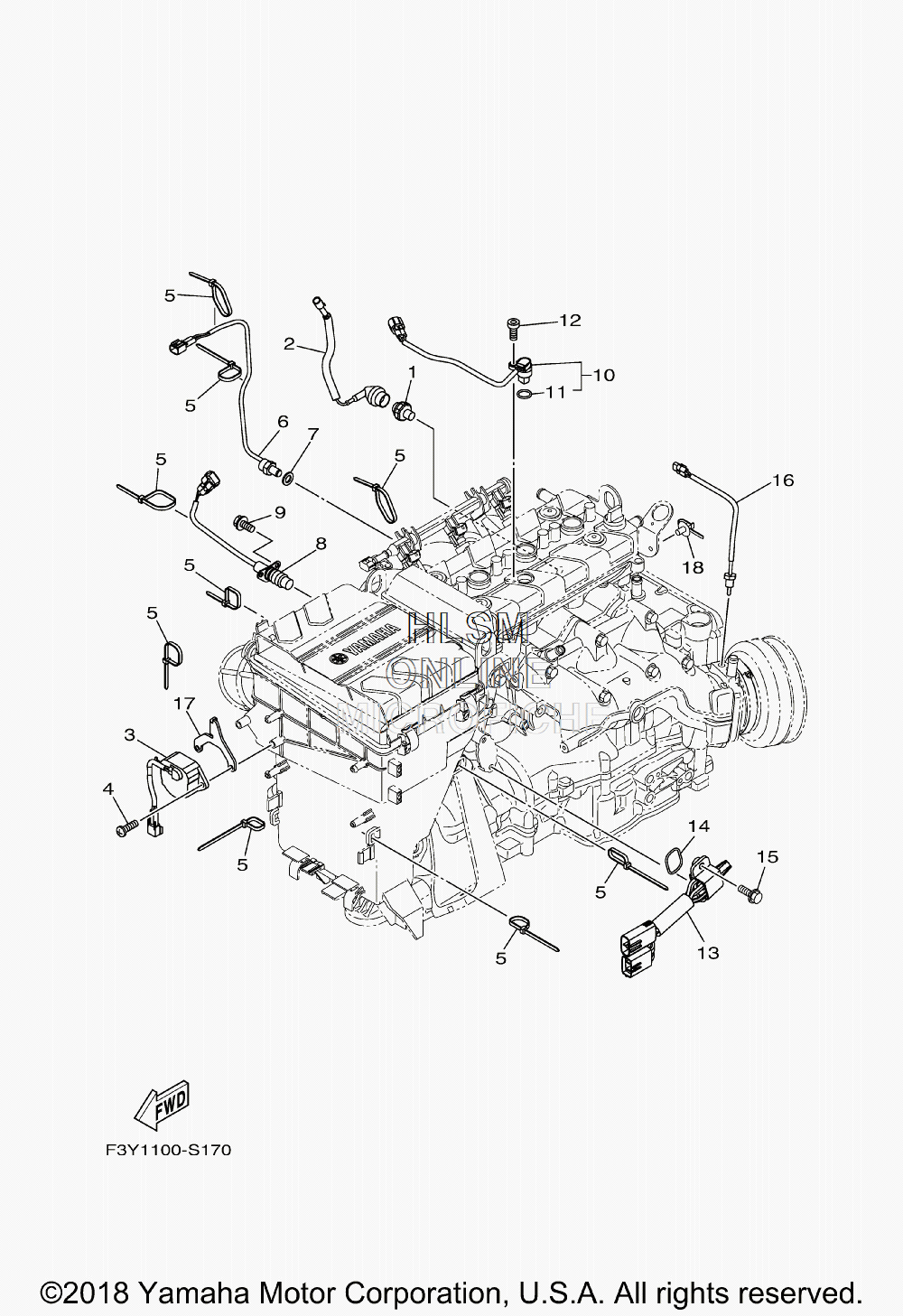

ELECTRICAL 2 для Yamaha EX - 2018 года выпуска`
-
№АртикулНазвание
-
168V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
260E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
360E-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
497780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
590465-13M18-00 CLAMPCLAMP
-
661A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
792990-10600-00 WASHER, PLATEWASHER, PLATE
-
86CR-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
997595-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
102S3-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
114D9-81168-00-00 ...O-RING...O-RING
-
1291380-06016-00 BOLTBOLT
-
136CS-8273J-10-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
1493210-32172-00 O-RINGO-RING
-
1590119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
166DE-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
176EY-83618-00-00 PLATEPLATE
-
1890464-20005-00 CLAMPCLAMP
