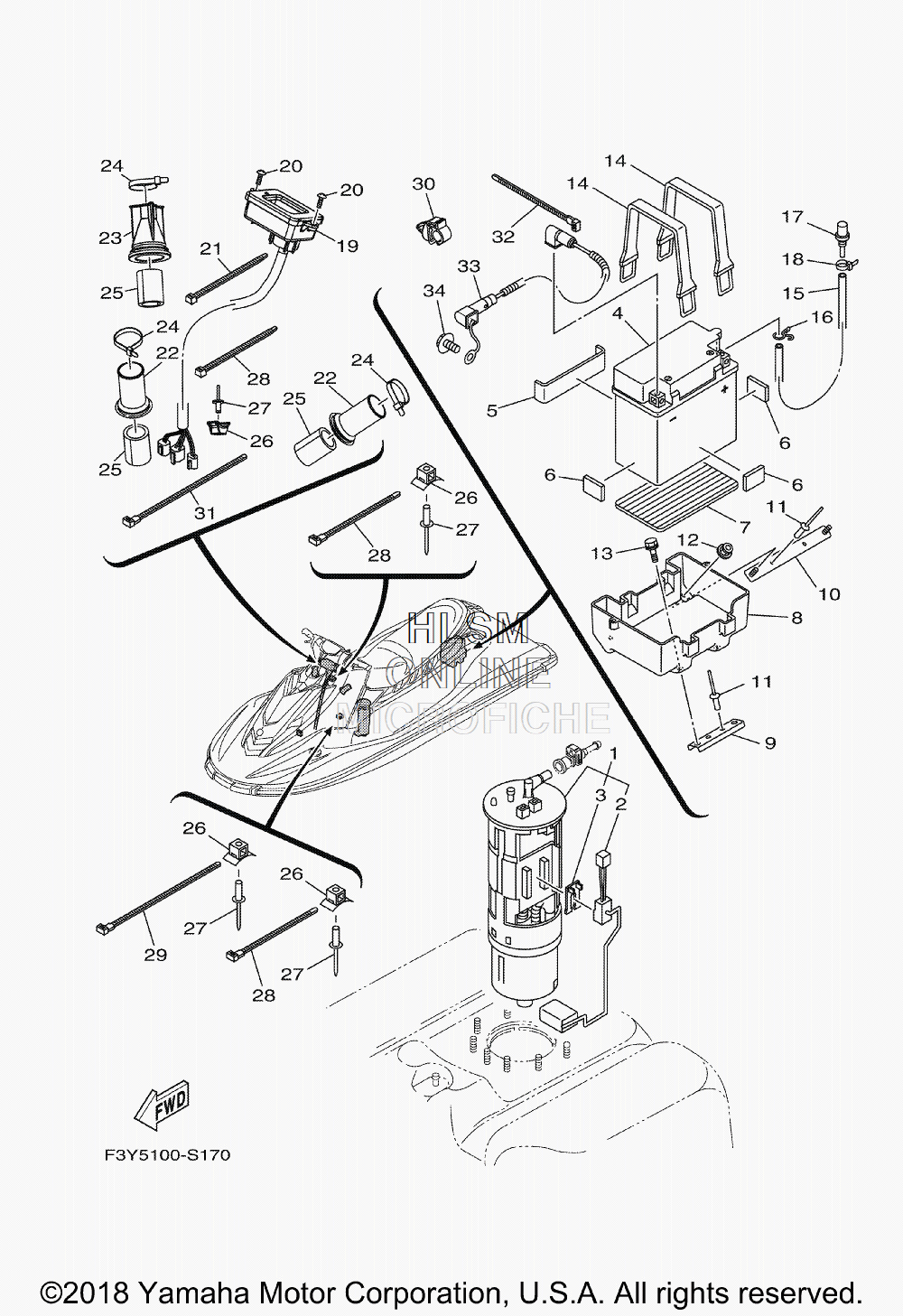

ELECTRICAL 3 для Yamaha EX - 2018 года выпуска`
-
№АртикулНазвание
-
16S5-13907-02-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
26S5-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
4EU0-U8217-H2-00 BATTERY (YB16CL-B)BATTERY (YB16CL-B)
-
5F1K-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
6EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
7F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
8F2S-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
9F2S-U8592-00-00 PLATE, BASE 2PLATE, BASE 2
-
10F2S-U8593-00-00 PLATE, BASE 3PLATE, BASE 3
-
1190267-489U1-00 RIVET,BLINDRIVET,BLIND
-
12F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1390119-06832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
14EU0-U821D-00-00 BAND,BATTERY 1BAND,BATTERY 1
-
15F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1690467-089U1-00 CLIPCLIP
-
17GJ3-6215F-00-00 NIPPLENIPPLE
-
1890465-11829-00 CLAMPCLAMP
-
19F3Y-U820A-00-00 METER ASSYMETER ASSY
-
20F2S-U7823-01-00 SCREWSCREW
-
2190464-32801-00 CLAMPCLAMP
-
22GU2-6822E-01-00 GROMMETGROMMET
-
23F3J-U822E-00-00 GROMMETGROMMET
-
2490464-32801-00 CLAMPCLAMP
-
25GJ1-U7578-21-00 PACKING, HOSE 2PACKING, HOSE 2
-
26F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2890464-32801-00 CLAMPCLAMP
-
2990601-200U2-00 BANDBAND
-
3090464-10008-00 CLAMPCLAMP
-
3190601-200U2-00 BANDBAND
-
3290464-32801-00 CLAMPCLAMP
-
336GA-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
3497513-08514-00 BOLT, WITH WASHERBOLT, WITH WASHER
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- • ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
