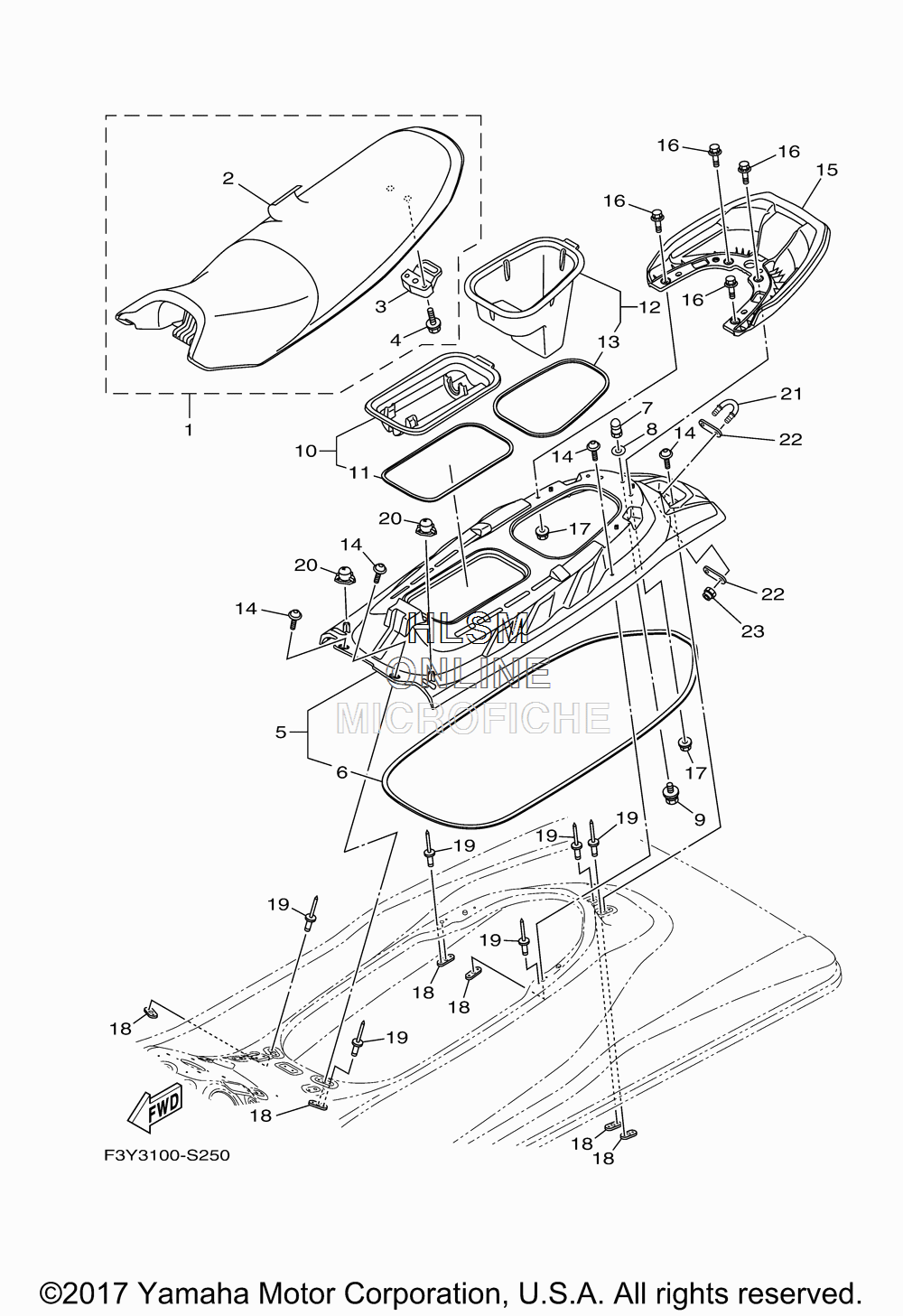

SEAT W/ UNDER LOCKER для Yamaha EX [EX1050CS] - 2017 года выпуска`
-
№АртикулНазвание
-
1F3Y-U371A-01-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2F3Y-U371B-00-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3F1B-U3850-02-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
490119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
5F3Y-U374A-01-00 BASE SEATBASE SEAT
-
6F3Y-U266B-01-00 ...PACKING 3...PACKING 3
-
7F1K-U3774-00-00 PINPIN
-
890201-109U6-00 WASHER, PLATEWASHER, PLATE
-
990119-10804-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10F3Y-U592A-00-00 CASE ASSY 2CASE ASSY 2
-
11F3Y-U266D-00-00 ...PACKING 5...PACKING 5
-
12F3Y-U591A-00-00 CASE ASSY 1CASE ASSY 1
-
13F3Y-U266E-00-00 ...PACKING,6...PACKING,6
-
14F3Y-U491K-01-00 BOLT, SPECIALBOLT, SPECIAL
-
15F3Y-U271B-00-00 GRIP, HANDGRIP, HAND
-
1690119-08829-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
17F3Y-U142L-00-00 NUT, LOCKNUT, LOCK
-
18F2C-U826C-00-00 BRACKETBRACKET
-
1990267-489U1-00 RIVET,BLINDRIVET,BLIND
-
20F3Y-U1338-00-00 GROMMETGROMMET
-
21F2N-U1628-02-00 STERN EYESTERN EYE
-
22GP7-U4953-10-00 PLATE APLATE A
-
239572R-08300-00 NUT, FLANGENUT, FLANGE
