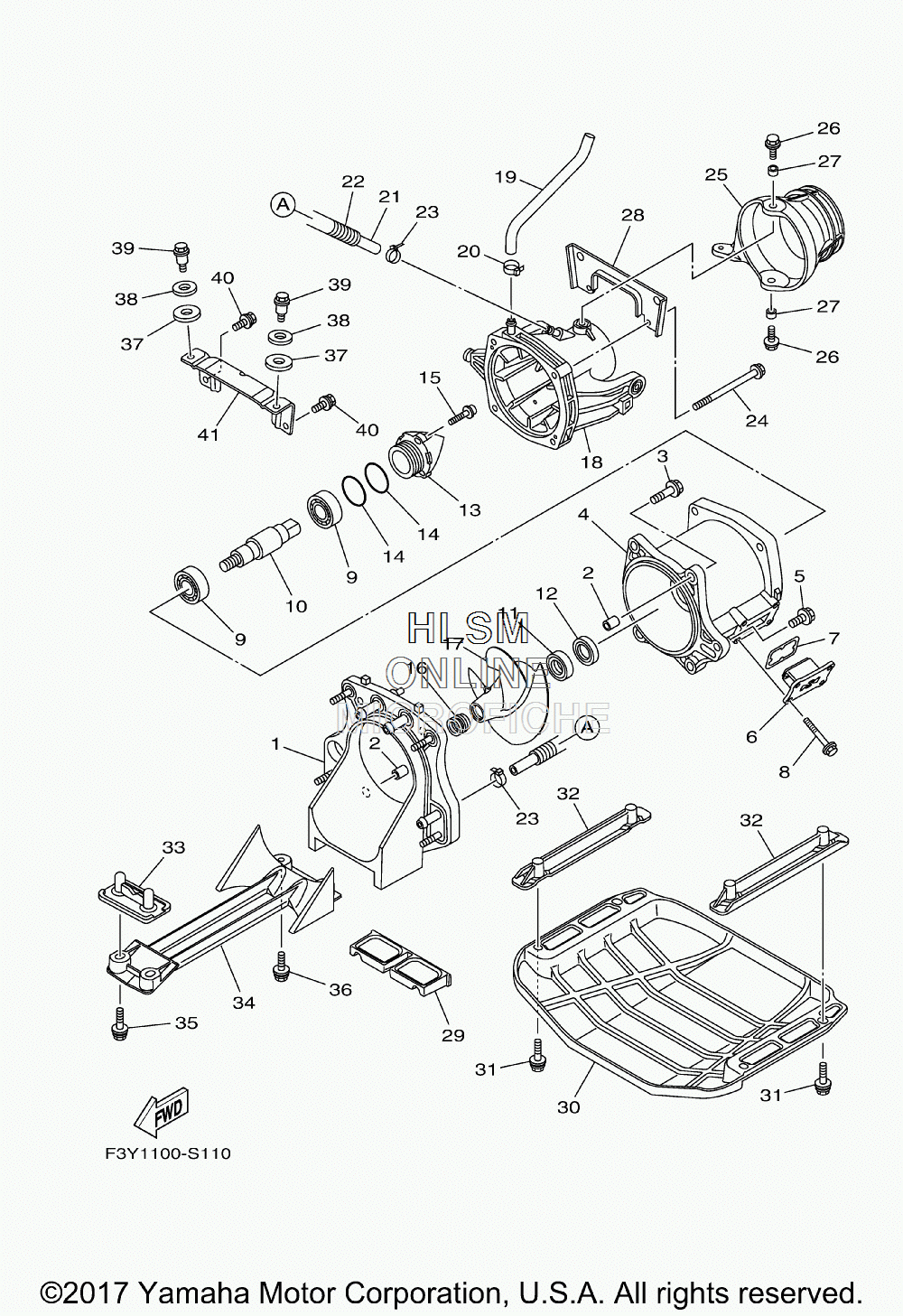

PROPULSION SYSTEM - EXTERNAL для Yamaha EX [EX1050CS] - 2017 года выпуска`
-
№АртикулНазвание
-
16GA-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
299590-14016-00 PIN, DOWELPIN, DOWEL
-
390119-10067-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46GA-R1312-00-00 HOUSING, IMPELLERHOUSING, IMPELLER
-
590119-10808-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
66GA-G6882-00-00 FILTERFILTER
-
76GA-G2414-00-00 O-RINGO-RING
-
890119-06889-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
993306-255X7-00 BEARINGBEARING
-
106GA-G5514-00-00 SHAFT, DRIVE 4SHAFT, DRIVE 4
-
1193102-25M34-00 OIL SEALOIL SEAL
-
1293101-25M50-00 OIL SEALOIL SEAL
-
136EX-R1326-10-00 CAPCAP
-
1493210-44003-00 O-RINGO-RING
-
1590110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
166D3-R1319-00-00 CAP, IMPELLERCAP, IMPELLER
-
176GA-R1321-00-00 IMPELLERIMPELLER
-
186GA-R1318-00-00 NOZZLENOZZLE
-
196GA-U72M2-00-00 HOSE 1HOSE 1
-
2090601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
2190445-14025-00 HOSE (L220)HOSE (L220)
-
2290447-15005-00 TUBE (L180)TUBE (L180)
-
2390465-11829-00 CLAMPCLAMP
-
2490119-08827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
256BU-R1313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
2690119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2790387-08M06-00 COLLARCOLLAR
-
286GA-R1959-00-00 BRACKETBRACKET
-
29F3Y-U72C0-00-00 SPACERSPACER
-
30F3Y-U273B-01-00 PLATE 2PLATE 2
-
31F3Y-U3222-00-00 BOLTBOLT
-
32F0V-U8572-01-00 BRACKET 2BRACKET 2
-
33F2S-U8577-00-00 BRACKET, 3BRACKET, 3
-
346GA-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
35F3Y-U1426-00-00 BOLTBOLT
-
36F3Y-U1426-00-00 BOLTBOLT
-
3790430-12002-00 GASKETGASKET
-
3892990-12200-00 WASHER, PLAINWASHER, PLAIN
-
3990109-08041-00 BOLTBOLT
-
4090119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
41F3Y-U7557-00-00 BRACKETBRACKET
