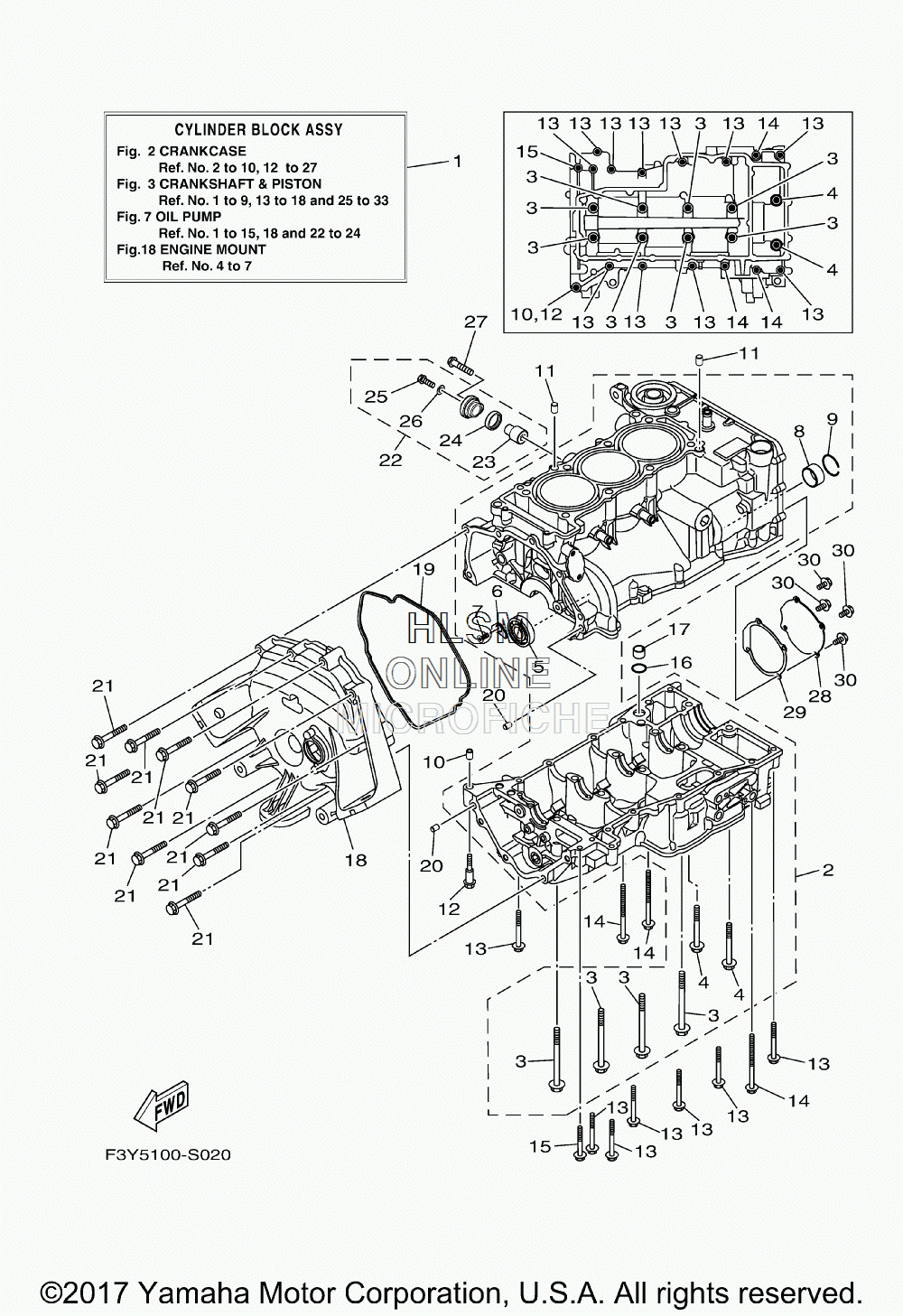

CRANKCASE для Yamaha EX [EX1050CS] - 2017 года выпуска`
-
№АртикулНазвание
-
16EY-W009B-00-00 CYLINDER BLOCK ASSYCYLINDER BLOCK ASSY
-
26EY-15109-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
390119-09004-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
495812-08070-00 ...BOLT, FLANGE...BOLT, FLANGE
-
593306-30323-00 ...BEARING...BEARING
-
64JT-15381-01-00 ...PLATE, BEARING COVER...PLATE, BEARING COVER
-
790151-06024-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
88ES-11428-01-00 ...BEARING 1...BEARING 1
-
993450-32152-00 ...CIRCLIP...CIRCLIP
-
1099530-10014-00 PIN, DOWELPIN, DOWEL
-
1199530-10114-00 PIN, DOWELPIN, DOWEL
-
1290109-06308-00 BOLTBOLT
-
1395814-06055-00 BOLT, FLANGEBOLT, FLANGE
-
1495814-06085-00 BOLT, FLANGEBOLT, FLANGE
-
1595814-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1693210-17010-00 O-RINGO-RING
-
178ES-13284-00-00 PIPEPIPE
-
186EY-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
196EY-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
2099590-08012-00 PIN, DOWELPIN, DOWEL
-
2197513-08555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2269J-11301-10-00 ANODE COVER ASSYANODE COVER ASSY
-
2368V-11325-02-00 ...ANODE...ANODE
-
2467F-11328-00-00 ...GROMMET, ANODE...GROMMET, ANODE
-
2590105-06M07-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2690430-06M03-00 ...GASKET...GASKET
-
2797595-08540-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
286EY-15589-00-00 PLATEPLATE
-
296EY-15463-00-00 GASKET, 2GASKET, 2
-
3095024-06012-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
