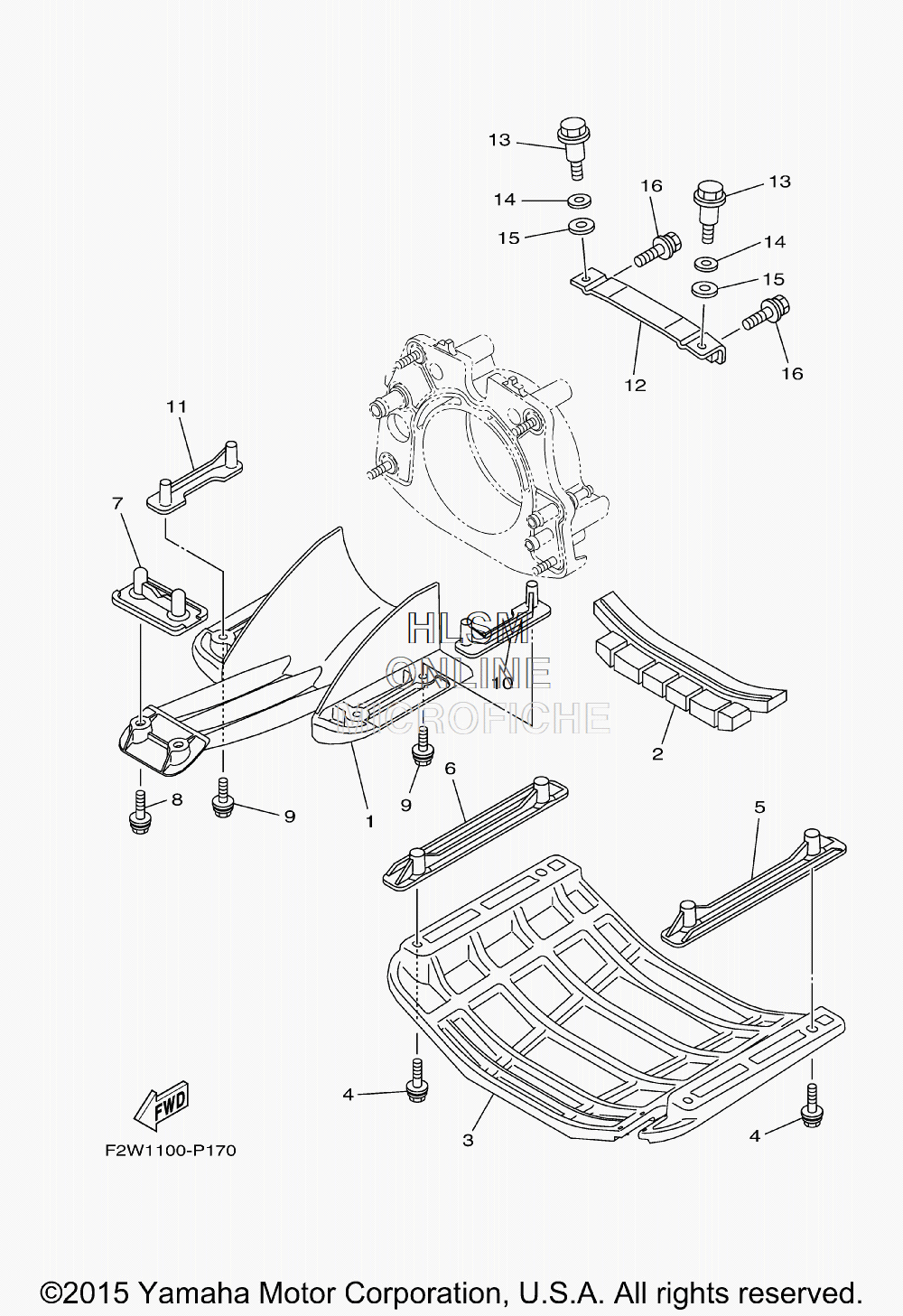

INTAKE AND RIDE PLATE ASSY для Yamaha VXR - 2015 года выпуска`
-
№АртикулНазвание
-
16EX-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
2F2X-U72C0-00-00 SPACERSPACER
-
3F2W-U273B-00-00 PLATE 2PLATE 2
-
490119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5F2X-U8572-00-00 BRACKET 2BRACKET 2
-
6F2X-U8572-00-00 BRACKET 2BRACKET 2
-
7F2S-U8577-00-00 BRACKET 3BRACKET 3
-
890119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10F2X-U8571-00-00 BRACKET 1BRACKET 1
-
11F2X-U8571-00-00 BRACKET 1BRACKET 1
-
12F2C-U7557-01-00 BRACKETBRACKET
-
1390109-08041-00 BOLTBOLT
-
1492990-12200-00 WASHER, PLAINWASHER, PLAIN
-
1590430-12002-00 GASKETGASKET
-
1690119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
