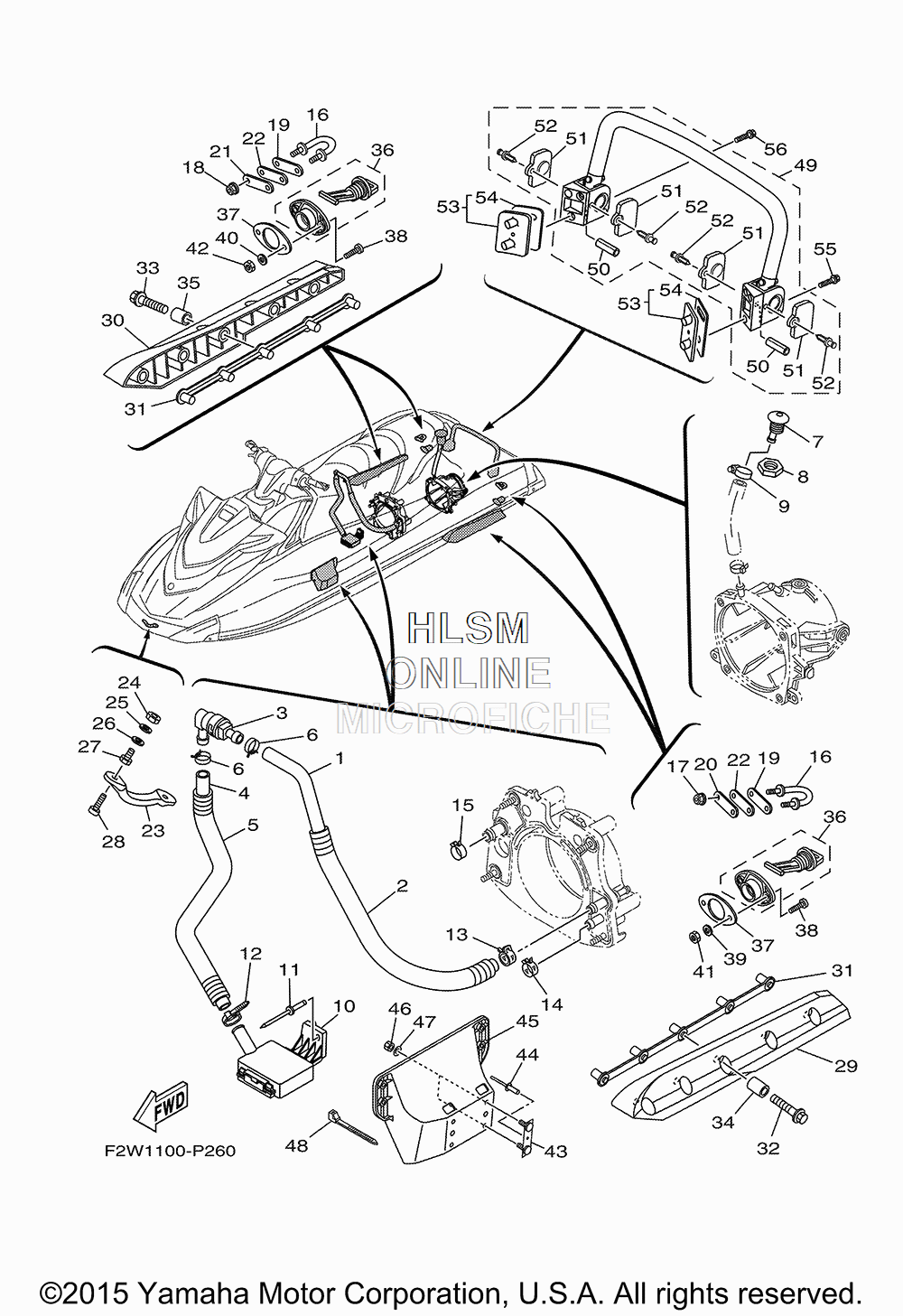

HULL FITTINGS W/ SPONSONS для Yamaha VXR - 2015 года выпуска`
-
№АртикулНазвание
-
190445-20804-00 HOSE (L860)HOSE (L860)
-
26EX-U773E-00-00 TUBE,2TUBE,2
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20800-00 HOSE (L500)HOSE (L500)
-
56EX-U773D-00-00 TUBETUBE
-
690467-18804-00 CLIPCLIP
-
7F1W-U269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1290465-11829-00 CLAMPCLAMP
-
1390467-21800-00 CLIPCLIP
-
1490467-200A0-00 CLIPCLIP
-
1590467-26800-00 CLIPCLIP
-
16F2N-U1628-02-00 STERN EYESTERN EYE
-
179572R-08300-00 NUT, FLANGENUT, FLANGE
-
189572R-08300-00 NUT, FLANGENUT, FLANGE
-
19GP7-U4953-10-00 PLATE APLATE A
-
20GP7-U4953-10-00 PLATE APLATE A
-
21GP7-U4953-10-00 PLATE APLATE A
-
22F1B-U1653-02-00 PACKINGPACKING
-
23F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
2499780-12600-00 NUT.HEX.(COARS)NUT.HEX.(COARS)
-
2592990-12200-00 WASHER, PLAINWASHER, PLAIN
-
26F0X-61637-00-00 WASHERWASHER
-
27F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2890110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
29F1S-U883N-01-00 STABILIZER LEFT HAND (BLACK)STABILIZER LEFT HAND (BLACK)
-
30F1S-U883P-01-00 STABILIZER RIGHT HAND (BLACK)STABILIZER RIGHT HAND (BLACK)
-
31F1X-U883T-01-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
3290105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
3390105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
34F2N-U8169-00-00 SPACERSPACER
-
35F2N-U8169-00-00 SPACERSPACER
-
36F1S-U2280-02-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
37F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
389788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
399299R-05200-00 WASHERWASHER
-
409299R-05200-00 WASHERWASHER
-
419572R-05300-00 NUT, FLANGENUT, FLANGE
-
429572R-05300-00 NUT, FLANGENUT, FLANGE
-
43F1K-U826C-03-00 BRACKETBRACKET
-
4490267-489U1-00 RIVET,BLINDRIVET,BLIND
-
45F1W-U8572-01-00 BRACKET 2BRACKET 2
-
469572R-08300-00 NUT, FLANGENUT, FLANGE
-
479299R-08200-00 WASHERWASHER
-
4890464-32801-00 CLAMPCLAMP
-
49F2X-U278A-00-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
50F1W-U771H-00-00 ...SLEEVE 1...SLEEVE 1
-
51F2C-U377H-00-00 ...INNER, COVER SIDE 1...INNER, COVER SIDE 1
-
52F2C-U1314-00-00 ...PIN...PIN
-
53F2S-U278F-00-00 BRACKET, LADDER LHBRACKET, LADDER LH
-
54F2S-U278H-00-00 ...PACKING, BRACKET 1...PACKING, BRACKET 1
-
5590119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5690119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
