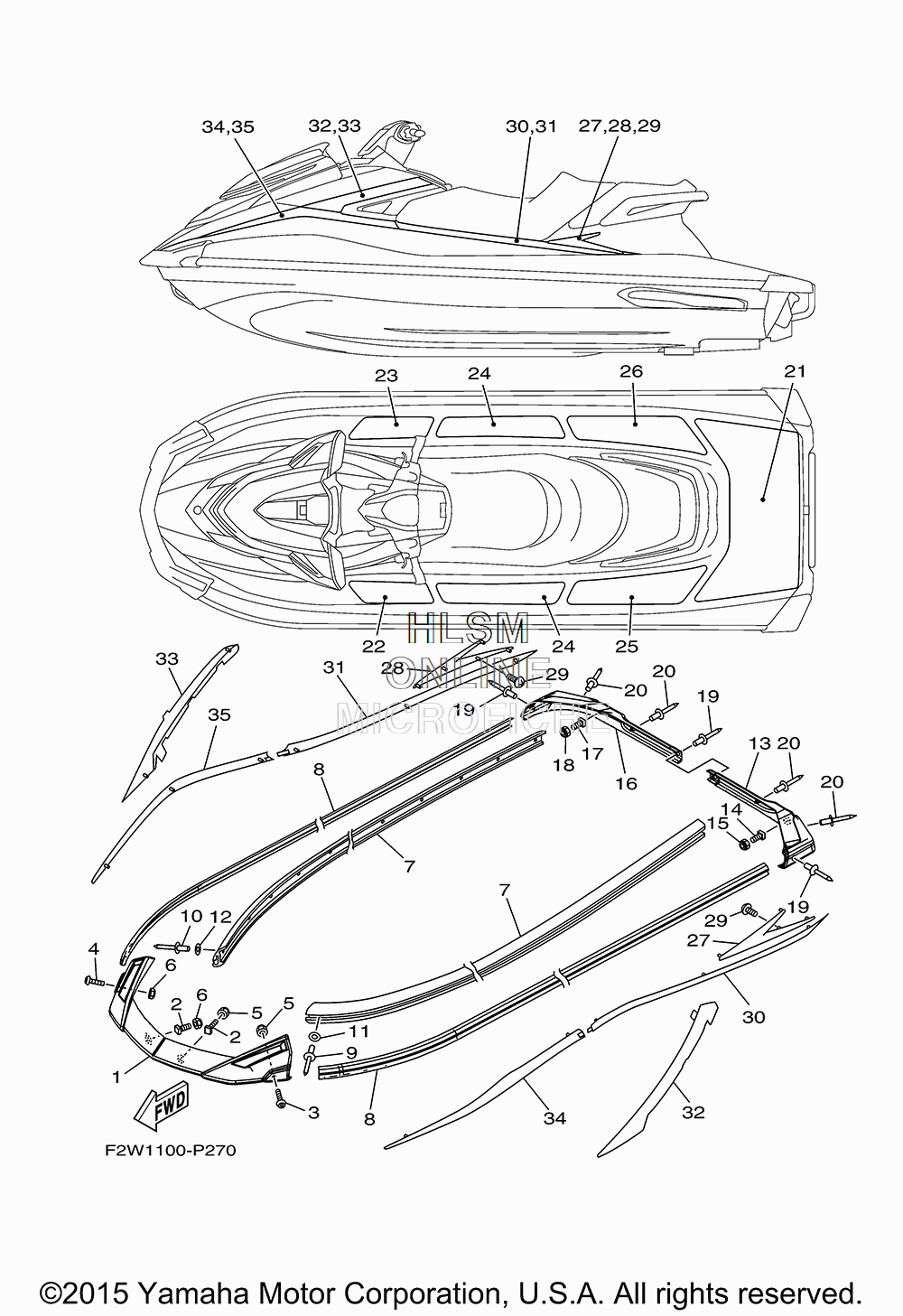

HULL - GUNWALE - MAT для Yamaha VXR - 2015 года выпуска`
-
№АртикулНазвание
-
1F2X-U2511-10-00 GUNWALE, BOWGUNWALE, BOW
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
490111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
5F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
6F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
7F2X-U2512-10-00 GUNWALE, SIDEGUNWALE, SIDE
-
8F2X-U2519-10-00 INNER,GUNWALEINNER,GUNWALE
-
990267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1090267-489U8-00 RIVET, BLINDRIVET, BLIND
-
119299R-05200-00 WASHERWASHER
-
129299R-05200-00 WASHERWASHER
-
13F2X-U251D-10-00 GUNWALE, STERN 1GUNWALE, STERN 1
-
14F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F2X-U251E-10-00 GUNWALE, STERN 2GUNWALE, STERN 2
-
17F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
18F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1990267-48825-00 RIVET, BLINDRIVET, BLIND
-
2090267-48825-00 RIVET, BLINDRIVET, BLIND
-
21F2X-U3581-01-00 MAT, UPPERMAT, UPPER
-
22F2X-U351H-00-00 MAT, STEP 1MAT, STEP 1
-
23F2X-U351J-00-00 MAT, STEP 2MAT, STEP 2
-
24F2X-U351K-00-00 MAT, STEP 3MAT, STEP 3
-
25F2X-U351M-00-00 MAT, STEP 4MAT, STEP 4
-
26F2X-U351N-00-00 MAT, STEP 5MAT, STEP 5
-
27F2W-U517W-00-00 ORNAMENT, LEFT HANDORNAMENT, LEFT HAND
-
28F2W-U517X-00-00 ORNAMENT, RIGHT HANDORNAMENT, RIGHT HAND
-
29F2W-U13C1-01-00 SCREWSCREW
-
30F2X-U89A8-00-00 ORNAMENT, STERN LEFT HANDORNAMENT, STERN LEFT HAND
-
31F2X-U89A9-00-00 ORNAMENT, STERN RIGHT HANDORNAMENT, STERN RIGHT HAND
-
32F2X-U89AA-00-00 ORNAMENT, MIDDLE LEFT HANDORNAMENT, MIDDLE LEFT HAND
-
33F2X-U89AB-00-00 ORNAMENT, MIDDLE RIGHT HANDORNAMENT, MIDDLE RIGHT HAND
-
34F2X-U89AC-00-00 ORNAMENT, BOW LEFT HANDORNAMENT, BOW LEFT HAND
-
35F2X-U89AD-00-00 ORNAMENT, BOW RIGHT HANDORNAMENT, BOW RIGHT HAND
