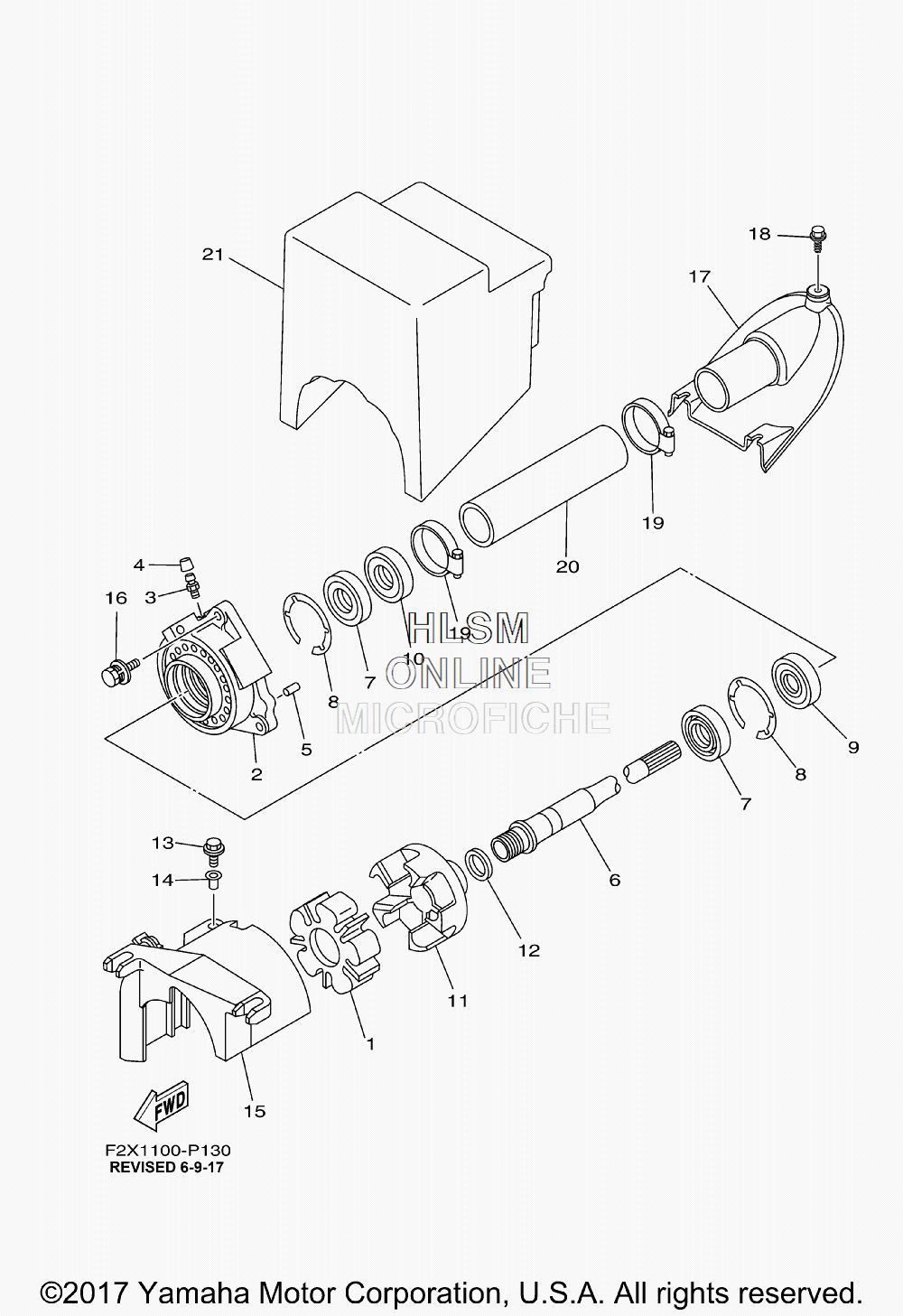

PROPULSION SYSTEM - INTERNAL для Yamaha VX - 2015 года выпуска`
-
№АртикулНазвание
-
16D3-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
261X-45332-03-94 HOUSING, BEARINGHOUSING, BEARING
-
393700-06M03-00 NIPPLE, GREASENIPPLE, GREASE
-
4663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
593606-12019-00 PIN, DOWELPIN, DOWEL
-
66BU-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
793101-25M55-00 OIL SEALOIL SEAL
-
893430-47M04-00 CIRCLIPCIRCLIP
-
993306-205A3-00 BEARINGBEARING
-
1093102-25009-00 OIL SEALOIL SEAL
-
116D3-45593-00-94 FLANGE, COUPLING 1FLANGE, COUPLING 1
-
1290201-24800-00 WASHER, PLATEWASHER, PLATE
-
1390119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490387-06289-00 COLLARCOLLAR
-
1560E-R1381-01-00 COVERCOVER
-
1690119-089UL-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
17F2N-U883E-00-00 JOINT, PIPEJOINT, PIPE
-
1890109-06832-00 BOLTBOLT
-
1990601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
20F2N-U883B-00-00 PIPE 1PIPE 1
-
21F1K-U892D-00-00 PADPAD
