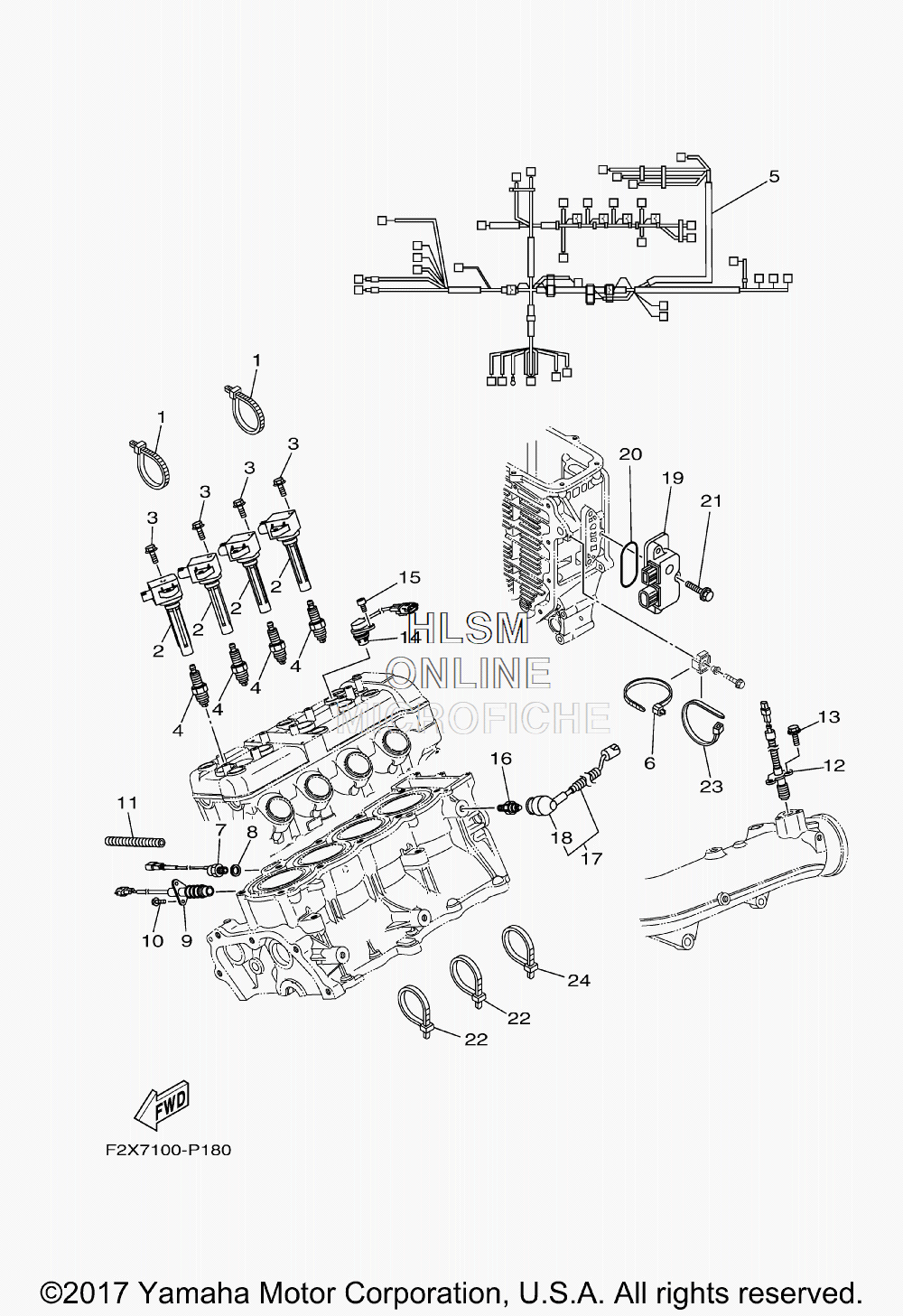

ELECTRICAL 2 для Yamaha VX - 2015 года выпуска`
-
№АртикулНазвание
-
190464-35132-00 CLAMPCLAMP
-
26EX-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
395880-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4NGK-CR9EB-00-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
56EX-8259L-00-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
690465-13M24-00 CLAMPCLAMP
-
761A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
892990-10600-00 WASHER, PLATEWASHER, PLATE
-
960E-82560-A1-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1097595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190446-14M23-00 HOSE (L180)HOSE (L180)
-
126D3-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1397595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1460E-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
1591380-06016-00 BOLTBOLT
-
1668V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
1760E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
1860E-82532-00-00 ...CAP...CAP
-
196D3-8273J-01-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
2093210-60ME8-00 O-RINGO-RING
-
2190119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2290465-13M18-00 CLAMPCLAMP
-
2390465-13152-00 CLAMPCLAMP
-
2490465-13M18-00 CLAMPCLAMP
