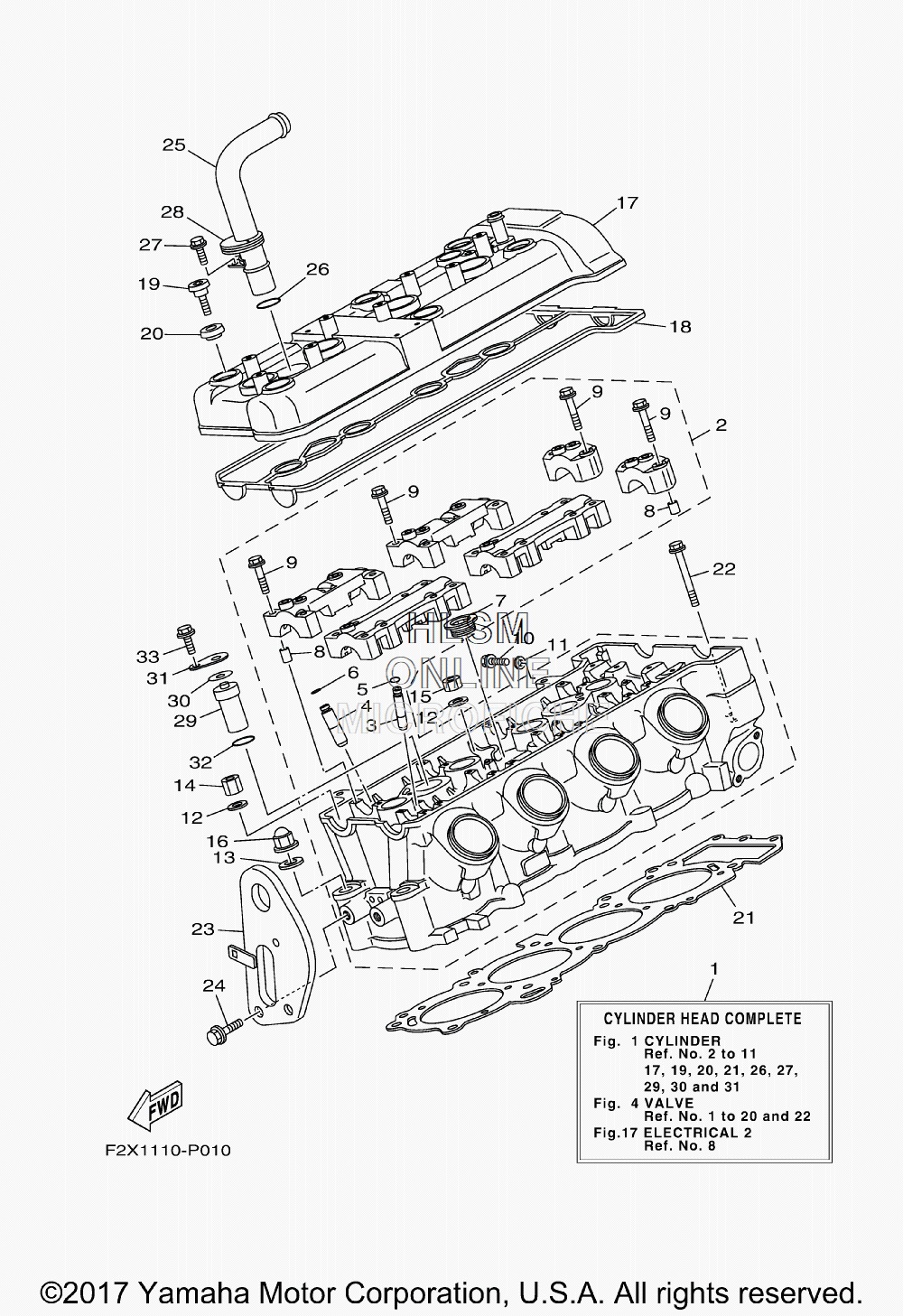

CYLINDER W/ HEAD для Yamaha VX - 2015 года выпуска`
-
№АртикулНазвание
-
16EX-W009A-00-94 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
26D3-11102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
33TJ-11133-10-00 ...GUIDE, VALVE...GUIDE, VALVE
-
41WG-11133-11-00 ...GUIDE, VALVE...GUIDE, VALVE
-
593440-07149-00 ...CIRCLIP...CIRCLIP
-
693440-10153-00 ...CIRCLIP...CIRCLIP
-
790340-27001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
891808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
990105-06026-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095023-06012-00 BOLTBOLT
-
1190430-06014-00 GASKETGASKET
-
1290201-10013-00 WASHER, PLATEWASHER, PLATE
-
1390201-10019-00 WASHER, PLATEWASHER, PLATE
-
1490179-10006-00 NUTNUT
-
1590179-10414-00 NUTNUT
-
1690176-10001-00 NUT, CROWNNUT, CROWN
-
176EX-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
1860E-11193-01-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1990109-066F0-00 BOLTBOLT
-
204KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
216D3-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2297513-06555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
236D3-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
2497513-08520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
256EX-12482-00-00 PIPE 2PIPE 2
-
2693210-18417-00 O-RINGO-RING
-
2791317-06016-00 BOLT, HEX.SOCKET HEADBOLT, HEX.SOCKET HEAD
-
286EX-12494-00-00 SEAL, PIPE 1SEAL, PIPE 1
-
2960E-12483-10-00 PIPE 3PIPE 3
-
3060E-12474-00-00 GASKET 1GASKET 1
-
3160E-12537-01-00 PLATE 2PLATE 2
-
3293210-18417-00 O-RINGO-RING
-
3391317-06016-00 BOLT, HEX.SOCKET HEADBOLT, HEX.SOCKET HEAD
