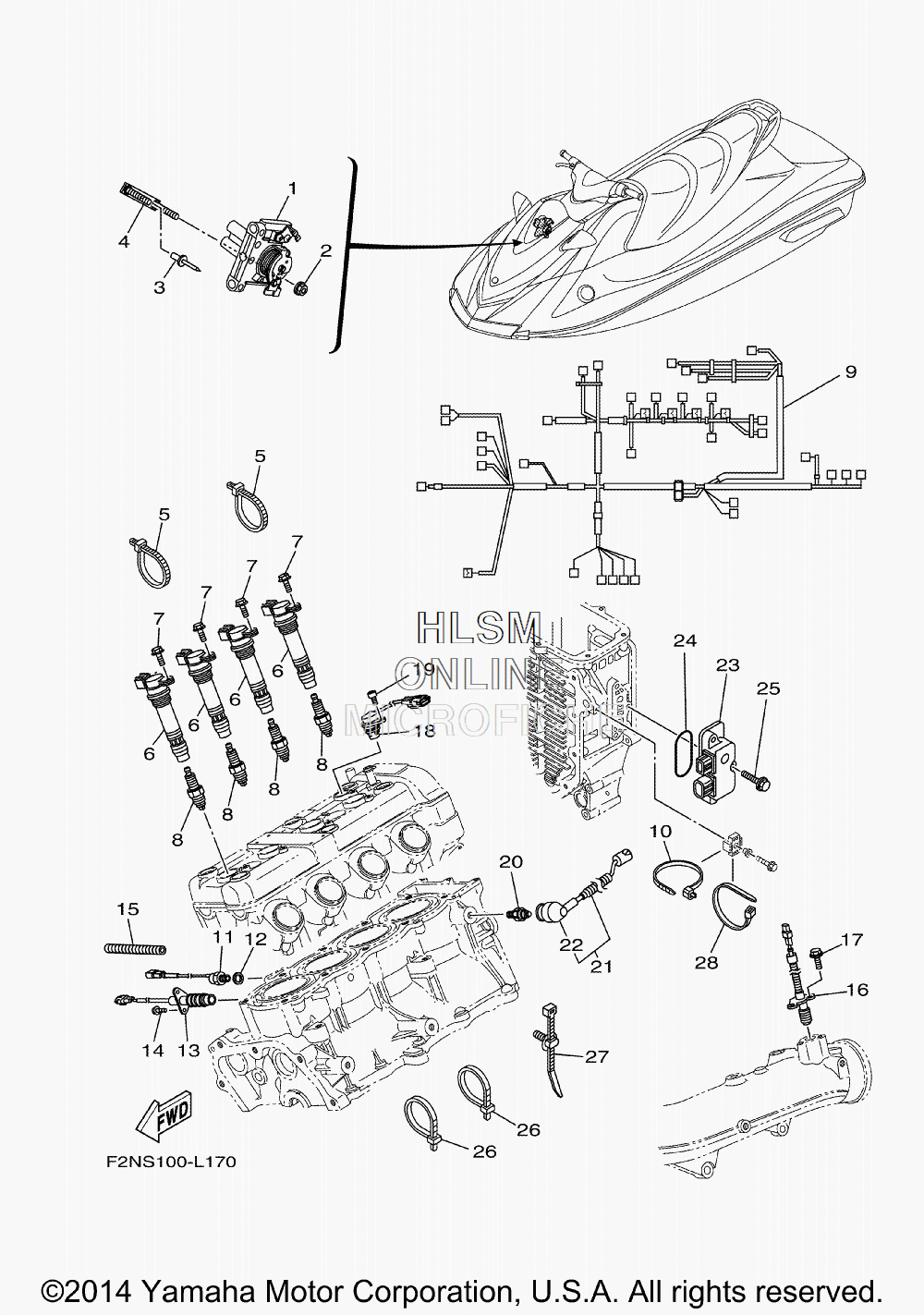

ELECTRICAL 2 для Yamaha V1 - 2015 года выпуска`
-
№АртикулНазвание
-
16D3-14305-21-00 ACCEL. POSITON SENSOR ASSYACCEL. POSITON SENSOR ASSY
-
295780-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
390267-489U1-00 RIVET,BLINDRIVET,BLIND
-
4F2N-U7254-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
590464-35132-00 CLAMPCLAMP
-
66D3-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
795880-06016-00 BOLT, FLANGEBOLT, FLANGE
-
8CR9-EB000-00-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
96BU-8259L-20-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
1090465-13M24-00 CLAMPCLAMP
-
1161A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1292990-10600-00 WASHER, PLATEWASHER, PLATE
-
1360E-82560-A1-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1497595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590446-14M23-00 HOSE (L180)HOSE (L180)
-
166D3-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1797595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
186D3-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
1991380-06016-00 BOLTBOLT
-
2068V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
2160E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
2260E-82532-00-00 ...CAP...CAP
-
236D3-8273J-01-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
2493210-60ME8-00 O-RINGO-RING
-
2590119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690465-13M18-00 CLAMPCLAMP
-
2790464-45002-00 CLAMPCLAMP
-
2890465-13152-00 CLAMPCLAMP
