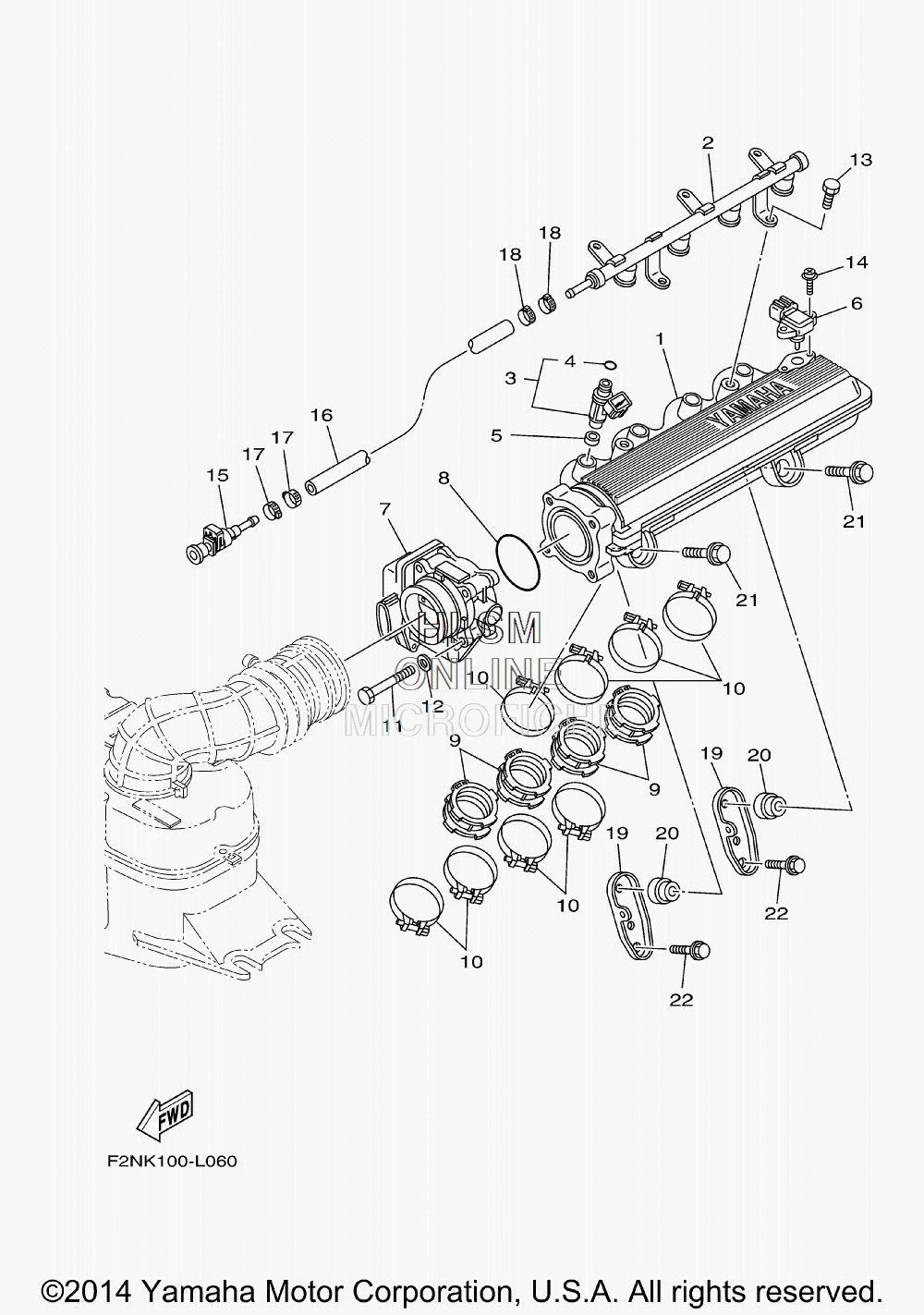

THROTTLE BODY ASSY. для Yamaha V1 - 2015 года выпуска`
-
№АртикулНазвание
-
16D3-13641-00-00 MANIFOLD, INTAKE 1MANIFOLD, INTAKE 1
-
26BU-12880-11-00 DELIVERY PIPEDELIVERY PIPE
-
360E-13761-20-00 INJECTORINJECTOR
-
468V-1416A-00-00 ...O-RING...O-RING
-
58FP-13556-10-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
668F-83688-10-00 SENSOR ASSYSENSOR ASSY
-
76BU-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
86D3-14457-00-00 SEALSEAL
-
96D3-13795-01-00 JOINT, THROTTLE BODY 1JOINT, THROTTLE BODY 1
-
1090450-57006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1168V-13573-00-00 BOLT 1BOLT 1
-
1268V-14475-00-00 WASHERWASHER
-
1363P-14446-00-00 BOLTBOLT
-
146D3-81147-00-00 SCREW 3SCREW 3
-
156S5-24300-01-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
166D3-14294-10-00 HOSEHOSE
-
1790450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1890450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
196D3-14414-10-00 STAY 2STAY 2
-
2060E-14449-00-94 COLLARCOLLAR
-
2190119-08050-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2290119-08074-00 BOLT, WITH WASHERBOLT, WITH WASHER
