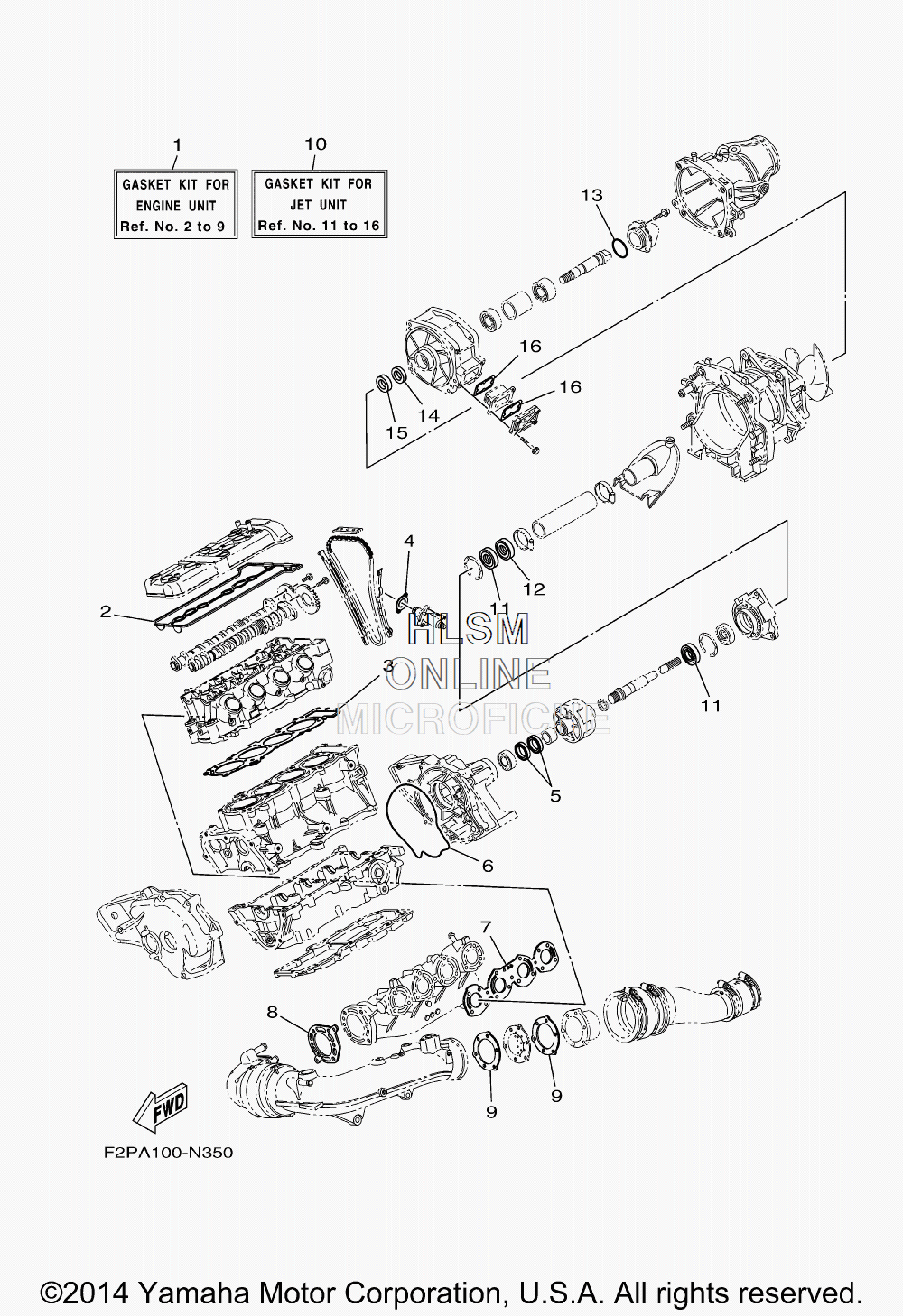

GASKET KIT - ENGINE AND JET UNIT для Yamaha V1 - 2015 года выпуска`
-
№АртикулНазвание
-
16D3-W0001-01-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
260E-11193-01-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
36D3-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
44FM-12213-00-00 ...GASKET, TENSIONER CASE...GASKET, TENSIONER CASE
-
593101-35004-00 ...OIL SEAL...OIL SEAL
-
66B6-13475-01-00 ...GASKET...GASKET
-
76D3-14613-10-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
86D3-14739-10-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
960E-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
106BU-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
1193101-25M55-00 ...OIL SEAL S-TYPE...OIL SEAL S-TYPE
-
1293102-25009-00 ...OIL SEAL...OIL SEAL
-
1393210-464A3-00 ...O-RING...O-RING
-
1493101-21002-00 ...OIL SEAL...OIL SEAL
-
1593101-21001-00 ...OIL SEAL...OIL SEAL
-
1666V-42414-00-00 ...O-RING...O-RING
