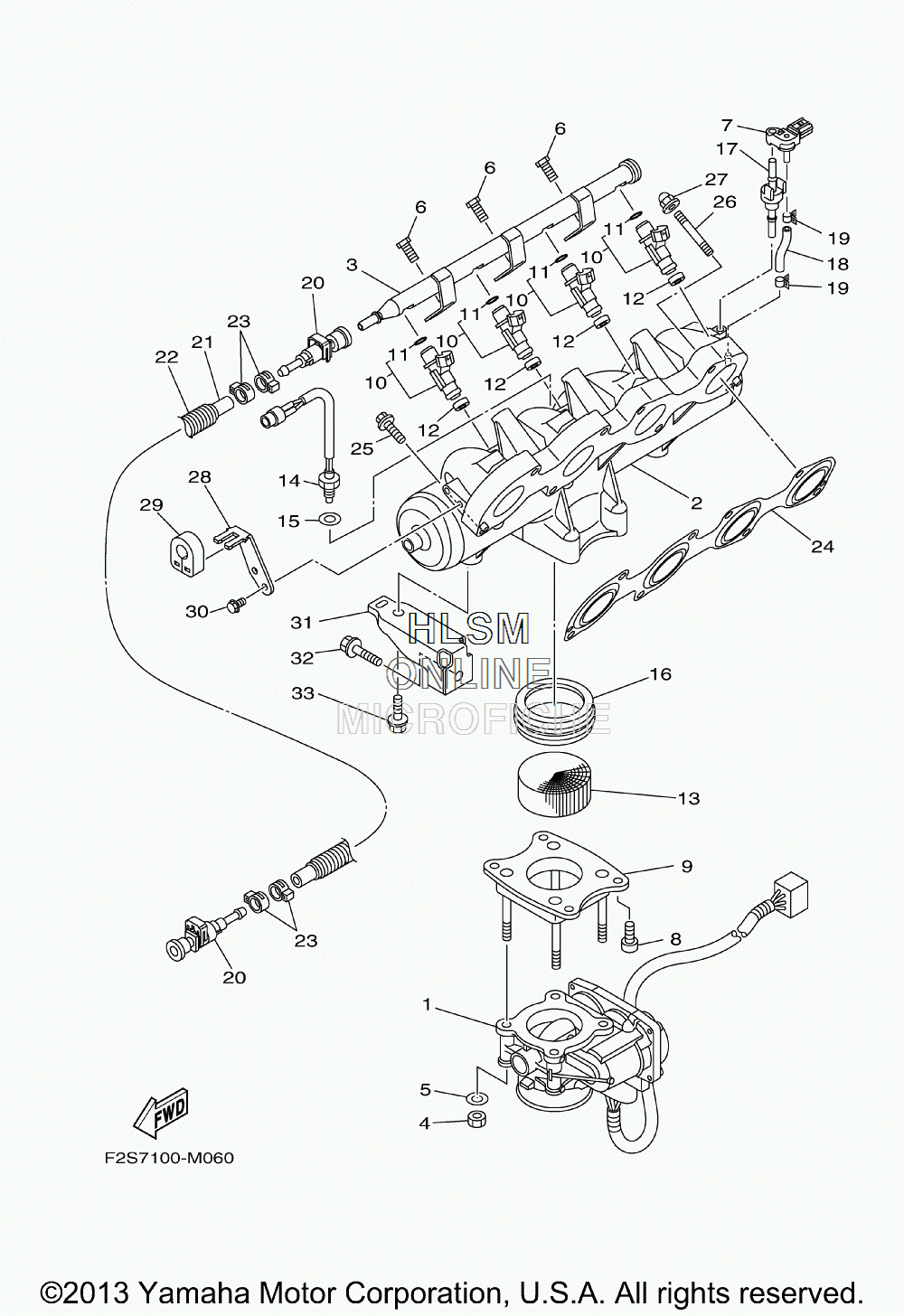

THROTTLE BODY ASSY. для Yamaha FX SHO - 2014 года выпуска`
-
№АртикулНазвание
-
16S5-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26S5-13641-A1-00 MANIFOLD, INTAKE 1MANIFOLD, INTAKE 1
-
36CS-12880-00-00 DELIVERY PIPEDELIVERY PIPE
-
46P2-13588-00-00 NUTNUT
-
56P2-13578-00-00 WASHERWASHER
-
66CS-14446-00-00 BOLTBOLT
-
76BH-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
86S5-14496-00-00 BOLTBOLT
-
96S5-14360-10-00 THROTTLE DAMPER ASSYTHROTTLE DAMPER ASSY
-
106S5-13761-10-00 INJECTORINJECTOR
-
1168V-1416A-00-00 ...O-RING...O-RING
-
128FP-13556-10-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
136D3-1444B-00-00 RIBBONRIBBON
-
146S5-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
156S5-14285-00-00 WASHERWASHER
-
166S5-14457-00-00 HOLDERHOLDER
-
176BH-14445-00-00 GROMMETGROMMET
-
186S5-13532-00-00 HOSE, VACUUM SENSING 3HOSE, VACUUM SENSING 3
-
196S5-14159-00-00 CLIPCLIP
-
206S5-24300-01-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
216AN-14294-10-00 HOSEHOSE
-
2290447-19017-00 TUBE (L495)TUBE (L495)
-
2390450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
246BH-13645-00-00 GASKET, MANIFOLD 1GASKET, MANIFOLD 1
-
2597513-08535-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690116-08032-00 BOLT, STUDBOLT, STUD
-
2790176-08080-00 NUT, CROWNNUT, CROWN
-
286CS-14572-00-00 PLATE, STAYPLATE, STAY
-
296CS-14445-00-00 GROMMETGROMMET
-
3095023-06012-00 BOLTBOLT
-
316CS-14413-00-00 STAYSTAY
-
3290119-08099-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390119-08074-00 BOLT, WITH WASHERBOLT, WITH WASHER
