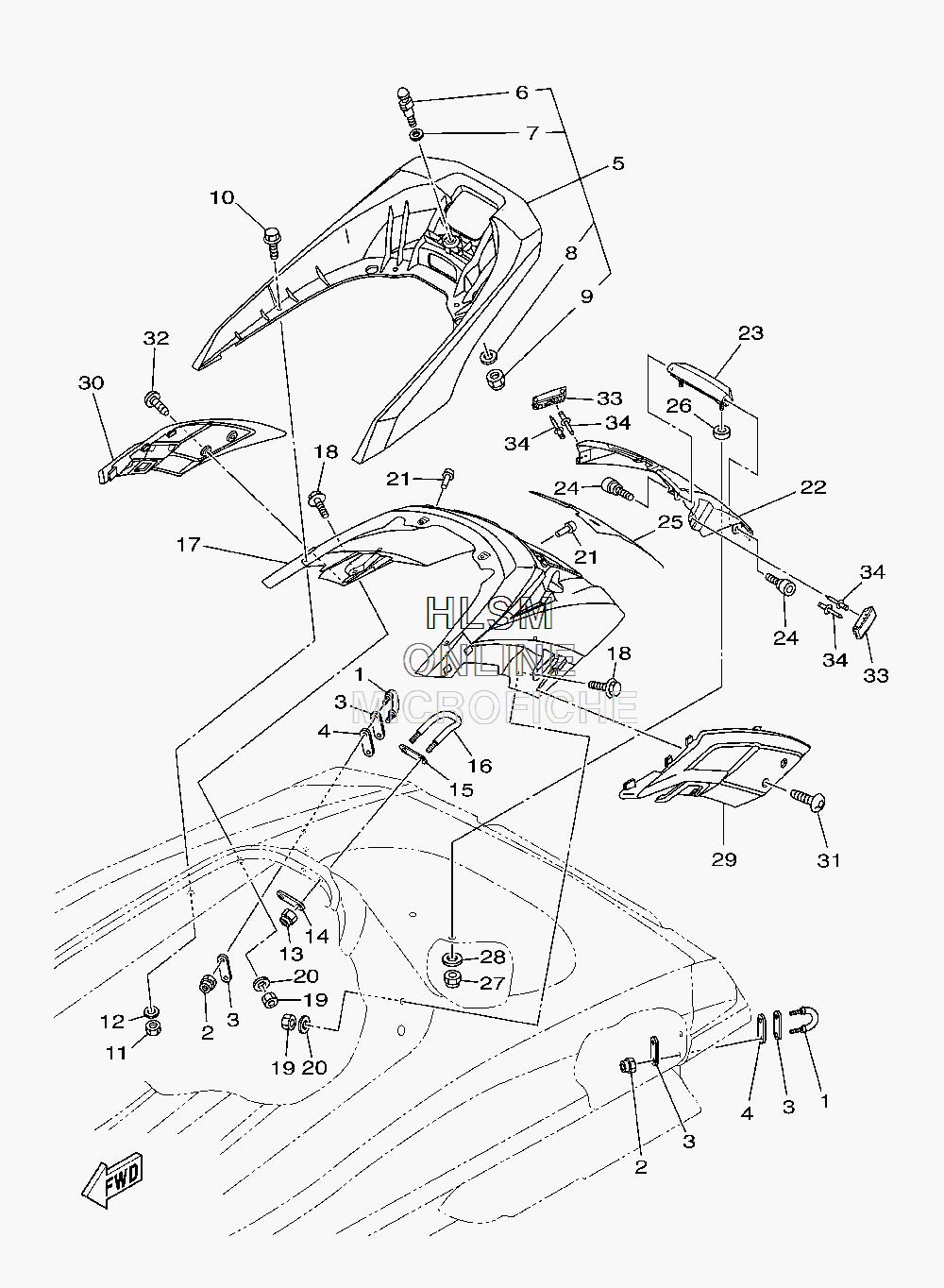

HULL-DECK 2 для Yamaha FX SHO - 2014 года выпуска`
-
№АртикулНазвание
-
1F2N-U1628-02-00 STERN EYESTERN EYE
-
29572R-08300-00 NUT, FLANGENUT, FLANGE
-
3GP7-U4953-10-00 PLATE APLATE A
-
4F1B-U1653-02-00 PACKINGPACKING
-
5F2S-U270B-10-00 GRIP ASSYGRIP ASSY
-
6GH1-U3774-00-00 ...PIN...PIN
-
790201-109U6-00 ...WASHER, PLATE...WASHER, PLATE
-
89299R-10200-00 ...WASHER...WASHER
-
99572R-10300-00 ...NUT, NYLON...NUT, NYLON
-
1090119-08829-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
119572R-08300-00 NUT, FLANGENUT, FLANGE
-
129299R-08200-00 WASHERWASHER
-
139572R-08300-00 NUT, FLANGENUT, FLANGE
-
14GP7-U4953-10-00 PLATE APLATE A
-
15GP7-U4953-10-00 PLATE APLATE A
-
16F1B-U1629-00-00 SKI TOWSSKI TOWS
-
17F2S-U89A1-01-P7 STORAGE, STERN (PURW)STORAGE, STERN (PURW)
-
1890119-08832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
199572R-08300-00 NUT, FLANGENUT, FLANGE
-
209299R-08200-00 WASHERWASHER
-
21F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
22F2S-U518M-01-P7 LID LOCKER STERN (PURW)LID LOCKER STERN (PURW)
-
23F2S-U271F-01-00 GRIP, LOWERGRIP, LOWER
-
24F2S-U2624-00-00 BOLTBOLT
-
25F2S-U519D-20-00 PACKING CASEPACKING CASE
-
26F2S-U2284-00-00 PACKINGPACKING
-
279572R-08300-00 NUT, FLANGENUT, FLANGE
-
289299R-08200-00 WASHERWASHER
-
29F2S-U890M-11-00 STERN COVER ASSY 1STERN COVER ASSY 1
-
30F2S-U890N-11-00 STERN COVER ASSY 2STERN COVER ASSY 2
-
31F2S-U13C1-00-00 SCREWSCREW
-
32F2S-U13C1-00-00 SCREWSCREW
-
33F2S-U264L-01-00 LOCK 1LOCK 1
-
3490267-409U3-00 RIVET, BLINDRIVET, BLIND
