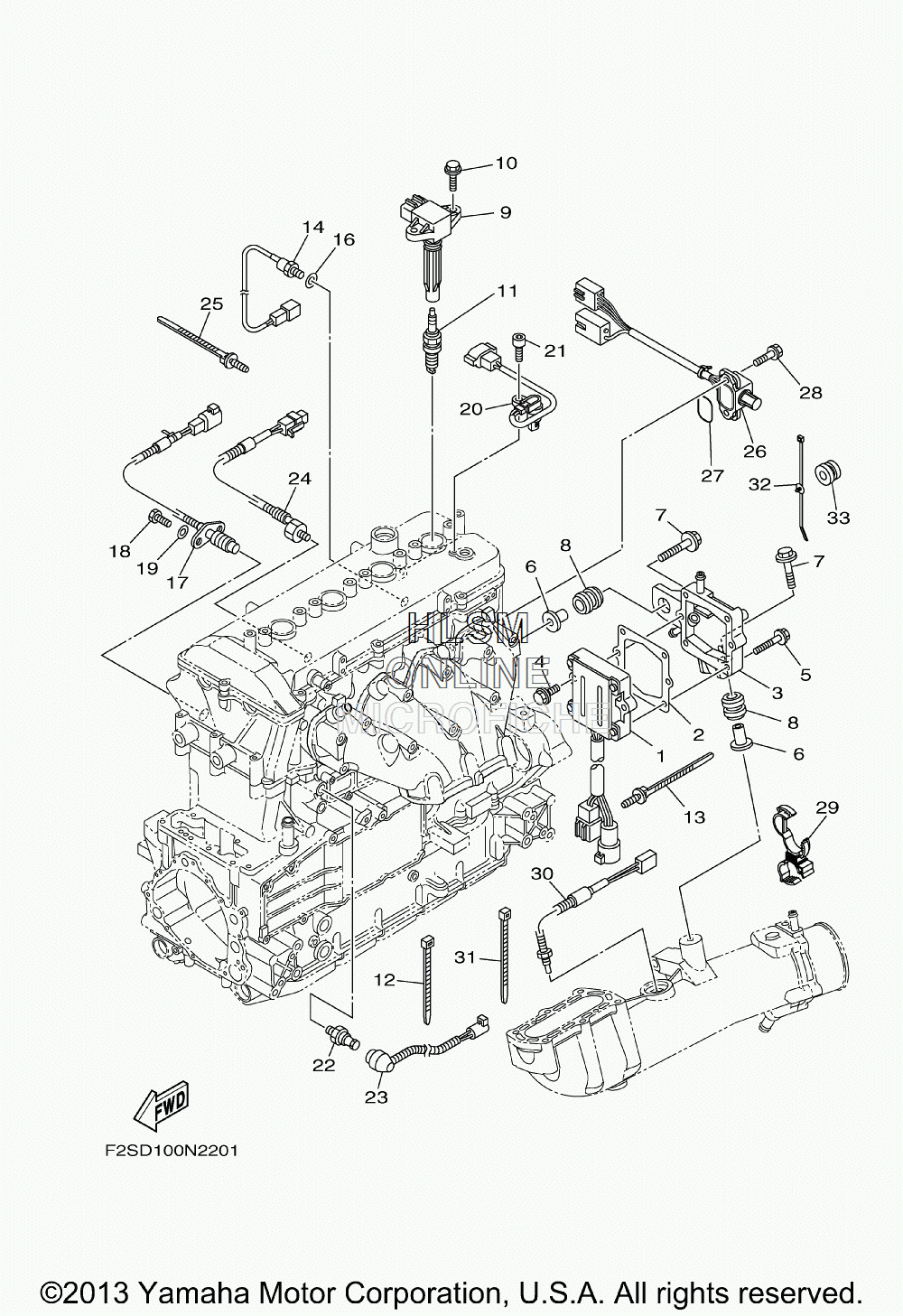

ELECTRICAL 2 для Yamaha FX SHO - 2014 года выпуска
-
№АртикулНазвание
-
16S5-81960-10-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
26S5-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
36S5-81972-01-94 COVER, RECTIFIERCOVER, RECTIFIER
-
490119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690387-08M37-00 COLLARCOLLAR
-
790119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890480-22M15-00 GROMMETGROMMET
-
96S5-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1090105-06903-00 BOLT WASHER BASEDBOLT WASHER BASED
-
11LFR-6A000-00-00 PLUG, SPARK (NGK LFR6A)PLUG, SPARK (NGK LFR6A)
-
1290465-13M18-00 CLAMPCLAMP
-
1390464-31001-00 CLAMPCLAMP
-
1461A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1692990-10600-00 WASHER, PLATEWASHER, PLATE
-
1760E-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1897095-06016-00 BOLTBOLT
-
1992995-06600-00 WASHERWASHER
-
2060E-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
2191380-06016-00 BOLTBOLT
-
2268V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
236S5-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
246AN-85780-00-00 SENSOR, KNOCKSENSOR, KNOCK
-
2590464-31001-00 CLAMPCLAMP
-
266CS-8273J-00-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
2793210-32172-00 O-RINGO-RING
-
2890119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990464-20008-00 CLAMPCLAMP
-
306AA-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
3190464-31001-00 CLAMPCLAMP
-
3290464-31002-00 CLAMPCLAMP
-
3390480-20132-00 GROMMETGROMMET
