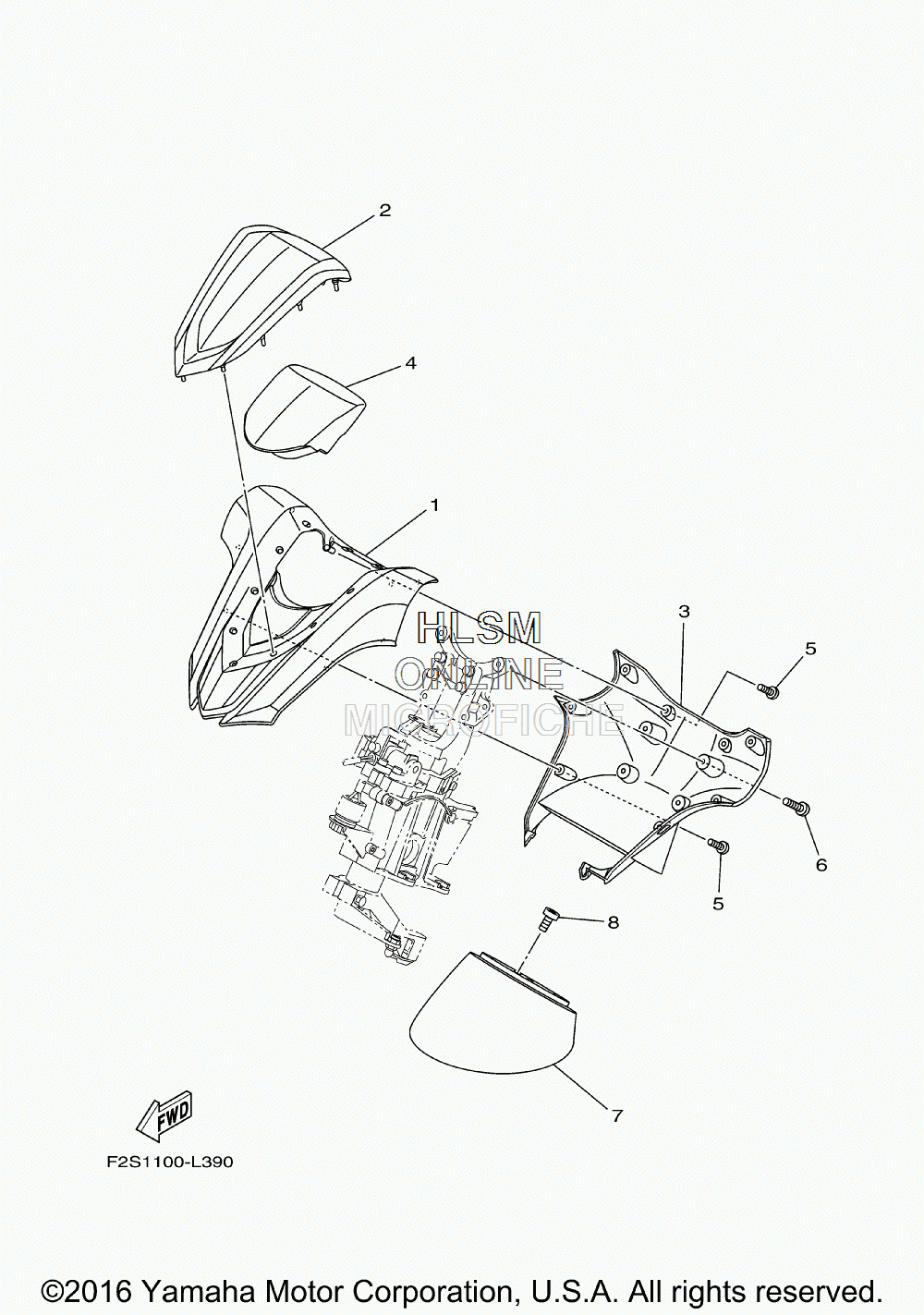

STEERING - PADDING для Yamaha FX HO - 2014 года выпуска
-
№АртикулНазвание
-
1F2S-U143D-10-00 PAD, STEERING 1PAD, STEERING 1
-
2F2S-U142D-30-00 COVER, PADCOVER, PAD
-
3F2S-U143E-10-00 PAD, STEERING 2PAD, STEERING 2
-
4F2S-U142E-00-00 CUSHION, PAD 1CUSHION, PAD 1
-
5F2S-U13C1-00-00 SCREWSCREW
-
690154-06017-00 SCREW, BINDINGSCREW, BINDING
-
7F2S-U143L-00-00 PAD, STEERING 3PAD, STEERING 3
-
890154-06030-00 SCREW, BINDINGSCREW, BINDING
