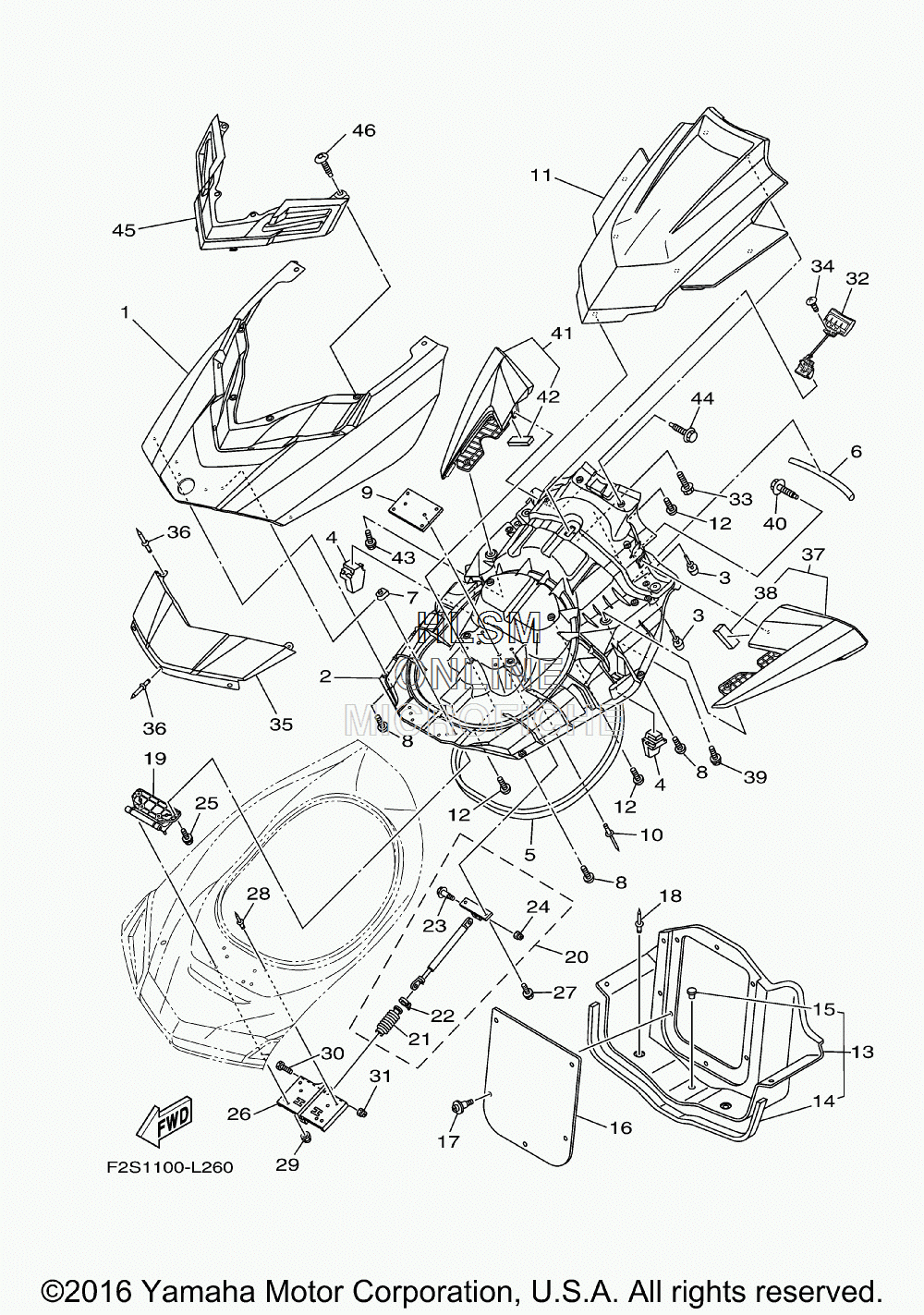

FRONT STORAGE W/ COVER для Yamaha FX HO - 2014 года выпуска`
-
№АртикулНазвание
-
1F2S-U517B-01-P3 LID, ENGINE ROOM (BMG) (BLACK)LID, ENGINE ROOM (BMG) (BLACK)
-
1F2S-U517B-01-P5 LID, ENGINE ROOM (DPBMT) (BLUE)LID, ENGINE ROOM (DPBMT) (BLUE)
-
2F2S-U519G-02-00 INNER, ENGINE HATCHINNER, ENGINE HATCH
-
3F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
4F2S-U5135-00-00 STOPPER, HATCH 1STOPPER, HATCH 1
-
5F2S-U2663-00-00 PACKING 1PACKING 1
-
6F2S-U266B-00-00 PACKING 3PACKING 3
-
790183-06902-00 NUT, SPRINGNUT, SPRING
-
8F2S-U13C1-00-00 SCREWSCREW
-
9F1W-U5148-00-00 PLATE, HATCHPLATE, HATCH
-
1090267-48807-00 RIVET, BLINDRIVET, BLIND
-
11F2S-U515N-01-P3 VISOR (BMG) (BLACK)VISOR (BMG) (BLACK)
-
11F2S-U515N-01-P5 VISOR (DPBMT) (BLUE)VISOR (DPBMT) (BLUE)
-
12F2S-U13C1-00-00 SCREWSCREW
-
13F2S-U475B-00-00 LOCKER,BOWLOCKER,BOW
-
14F2N-U266C-01-00 ...PACKING 4...PACKING 4
-
1590605-502U1-00 ...PLUG, BLIND...PLUG, BLIND
-
16F2S-U475F-00-00 PLATE, LOKER BOWPLATE, LOKER BOW
-
1790269-08801-00 RIVETRIVET
-
1890269-08801-00 RIVETRIVET
-
19F2S-U517D-00-00 HINGE, LIDHINGE, LID
-
20F2S-6514S-00-00 DAMPER ASSYDAMPER ASSY
-
21F1W-6514T-00-00 ...COVER, DAMPER...COVER, DAMPER
-
221UA-82591-00-00 ...BAND...BAND
-
2390109-06218-00 ...BOLT...BOLT
-
2495720-06300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2590119-06895-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26F2S-U518E-00-00 PLATE, HINGE LIDPLATE, HINGE LID
-
2790119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2890267-48020-00 RIVET, BLINDRIVET, BLIND
-
299572R-06300-00 NUT, NYLONNUT, NYLON
-
3090109-06218-00 BOLTBOLT
-
319572R-06300-00 NUT, NYLONNUT, NYLON
-
32F2S-U517C-01-00 LOCK, LIDLOCK, LID
-
3390119-059U4-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
349778R-50010-00 SCREW, TAPPINGSCREW, TAPPING
-
35F2S-U513M-01-P5 COVER, FRONT (DPBMT) (BLUE)COVER, FRONT (DPBMT) (BLUE)
-
35F2S-U513M-01-P3 COVER, FRONT (BMG) (BLACK)COVER, FRONT (BMG) (BLACK)
-
3690267-489U6-00 RIVET, BLINDRIVET, BLIND
-
37F2S-U590D-21-00 MIRROR ASSY. 1MIRROR ASSY. 1
-
38F1K-U266B-00-00 ...PACKING 3...PACKING 3
-
3990119-089UL-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4090119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
41F2S-U590E-21-00 MIRROR ASSY. 2MIRROR ASSY. 2
-
42F1K-U266B-00-00 ...PACKING 3...PACKING 3
-
4390119-089UL-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4490119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
45F2S-U510D-01-00 CENTER ORNAMENT ASSYCENTER ORNAMENT ASSY
-
46F2S-U13C1-00-00 SCREWSCREW
