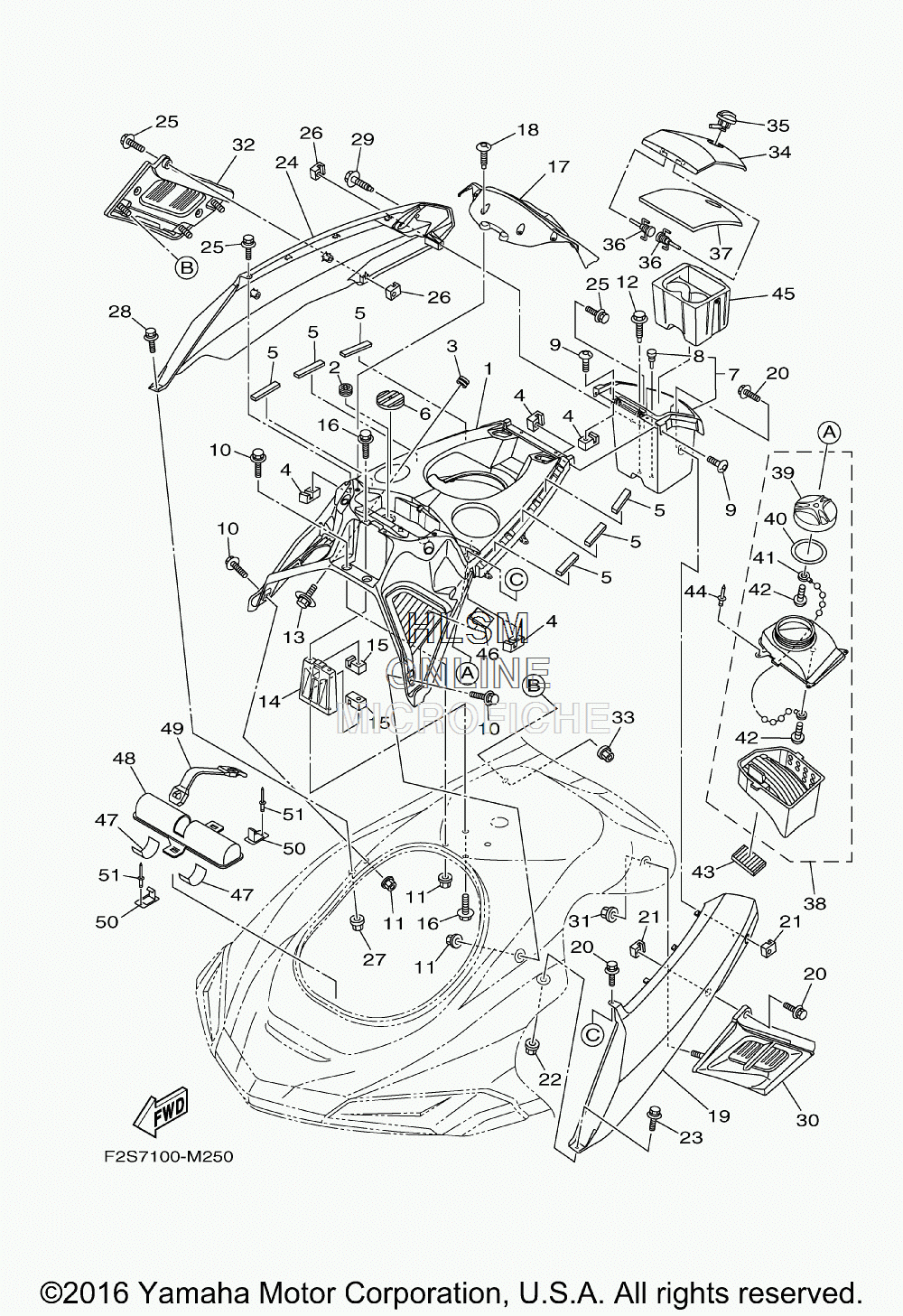

SIDE COVERS для Yamaha FX HO - 2014 года выпуска`
-
№АртикулНазвание
-
1F2S-U5554-02-00 COVER, CENTERCOVER, CENTER
-
2F1X-U828E-01-00 DAMPER 1DAMPER 1
-
390480-19800-00 GROMMETGROMMET
-
4F1X-U517E-01-00 NUTNUT
-
5F0X-U515E-01-00 DAMPER 2DAMPER 2
-
6F2S-U3844-00-00 MATMAT
-
7F2S-U1708-02-00 GLOVE BOX HATCH ASSY.GLOVE BOX HATCH ASSY.
-
890605-502U2-00 ...PLUG...PLUG
-
9F2N-67823-10-00 SCREWSCREW
-
1090119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1290119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-05803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
14F2S-U517F-00-00 HOOK,LID LOCKHOOK,LID LOCK
-
15F1X-U517E-01-00 NUTNUT
-
1690119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
17F2S-U8262-01-P0 COVER METER (BMG)COVER METER (BMG)
-
18F2S-U13C1-00-00 SCREWSCREW
-
19F2S-U377B-02-P3 COVER,SIDE 1 (BMG) (BLACK)COVER,SIDE 1 (BMG) (BLACK)
-
19F2S-U377B-02-P5 COVER,SIDE 1 (DPBMT) (BLUE)COVER,SIDE 1 (DPBMT) (BLUE)
-
2090119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
21F1X-U517E-01-00 NUTNUT
-
22F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
2390119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24F2S-U377C-02-P5 COVER,SIDE 2 (DPBMT) (BLUE)COVER,SIDE 2 (DPBMT) (BLUE)
-
24F2S-U377C-02-P3 COVER,SIDE 2 (BMG) (BLACK)COVER,SIDE 2 (BMG) (BLACK)
-
2590119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26F1X-U517E-01-00 NUTNUT
-
27F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
2890119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F2S-U370J-00-00 SIDE ORNAMENT ASSY 1SIDE ORNAMENT ASSY 1
-
31F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
32F2S-U370K-00-00 SIDE ORNAMENT ASSY 2SIDE ORNAMENT ASSY 2
-
33F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
34F2S-U517H-00-00 LID HATCHLID HATCH
-
35F1X-62875-00-00 LOCKLOCK
-
36F1B-6517R-00-00 PIN, HINGEPIN, HINGE
-
37F2S-U519D-00-00 PACKING CASEPACKING CASE
-
38F2S-U591A-00-00 CASE ASSY 1CASE ASSY 1
-
39F1W-U591C-01-00 ...CAP,CASE...CAP,CASE
-
40F1W-U591D-00-00 ...PACKING,CASE...PACKING,CASE
-
41F2S-U7835-01-00 ...CHAIN BALL...CHAIN BALL
-
42F2S-U316C-00-00 ...SCREW (FL66314300)...SCREW (FL66314300)
-
43F1K-U759C-00-00 MAT 2MAT 2
-
4490267-48807-00 RIVET, BLINDRIVET, BLIND
-
45F2S-U5633-00-00 HOLDER, DRINKHOLDER, DRINK
-
46GJ1-U759C-00-00 MAT 2MAT 2
-
47F1K-U759C-00-00 MAT 2MAT 2
-
48F1K-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
49F2P-U828K-00-00 BAND 1BAND 1
-
50F1K-U5772-04-00 HOOK AHOOK A
-
5190267-489U1-00 RIVET,BLINDRIVET,BLIND
