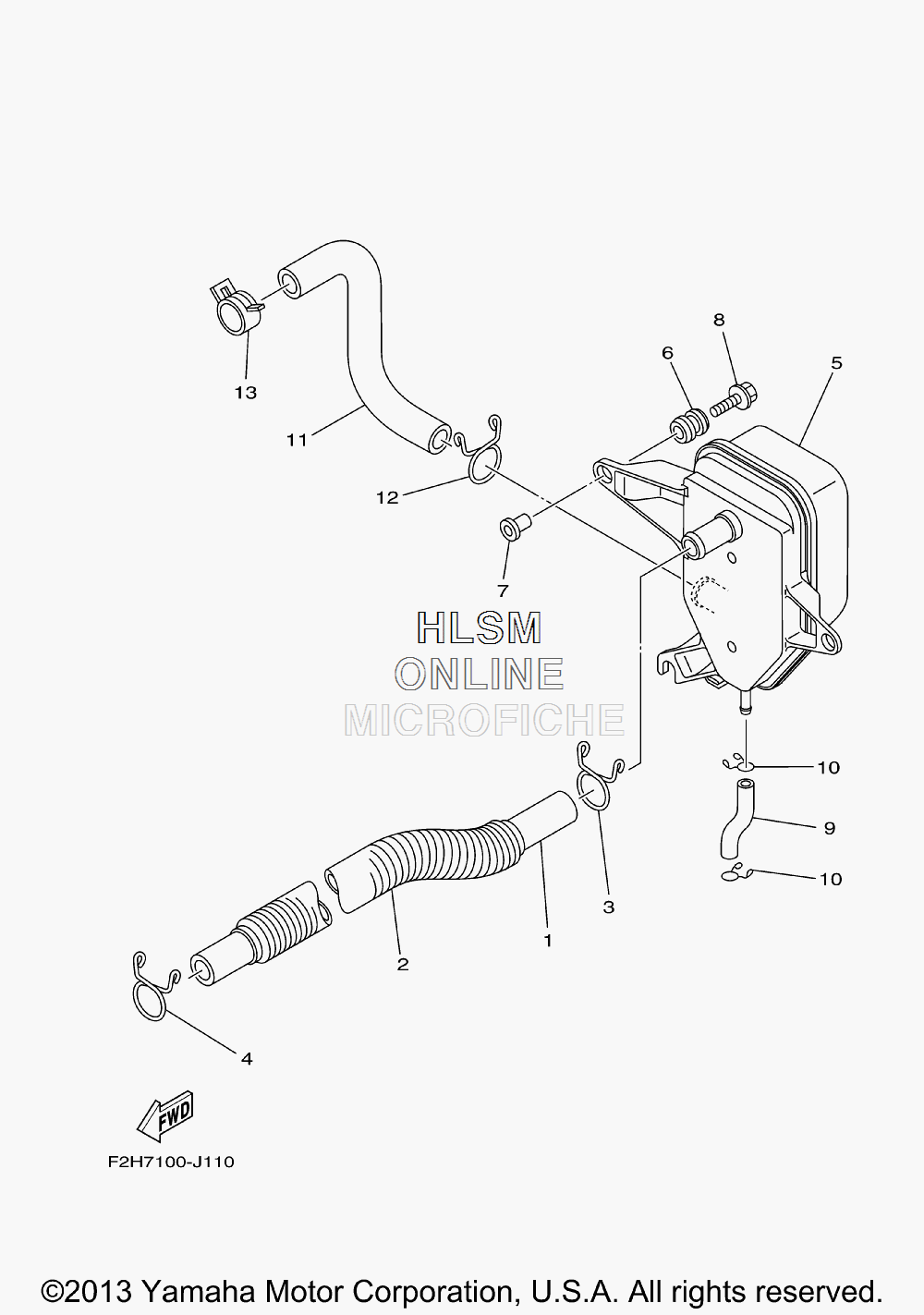

OIL BREATHER ASSY. для Yamaha FX HWAVERUNNER FX HO [FY1800K] - 2011 года выпуска`
-
№АртикулНазвание
-
16S5-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
290446-30MF1-00 HOSE (L600)HOSE (L600)
-
390467-240A2-00 CLIPCLIP
-
490467-240A2-00 CLIPCLIP
-
56BH-11160-00-00 BREATHER ASSYBREATHER ASSY
-
661N-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
790387-06119-00 COLLARCOLLAR
-
895824-06030-00 BOLT, FLANGEBOLT, FLANGE
-
96S5-11125-00-00 PIPE, BREATHER 4PIPE, BREATHER 4
-
1090467-11019-00 CLIPCLIP
-
116S5-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1290467-240A2-00 CLIPCLIP
-
1390467-240A0-00 CLIPCLIP
