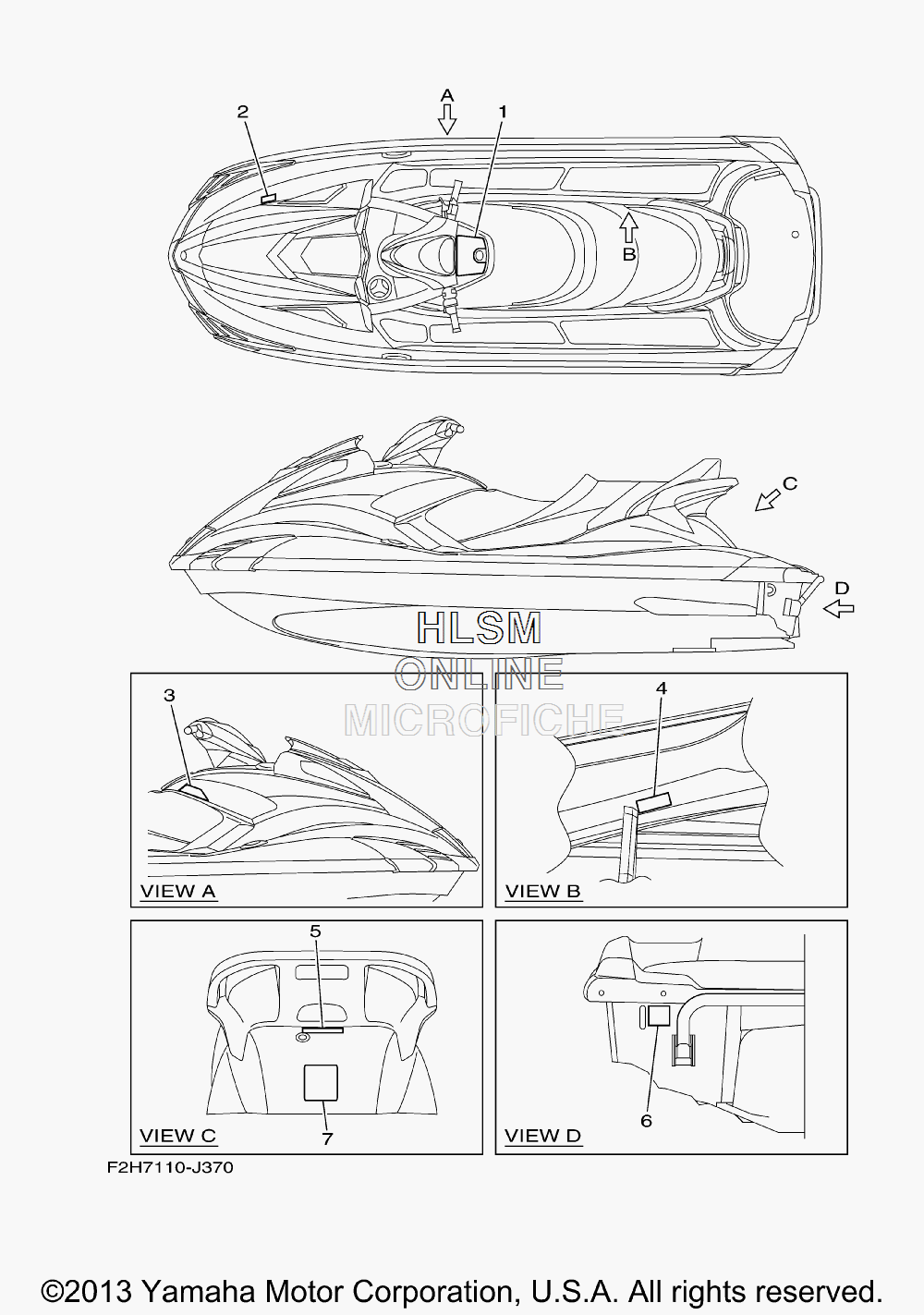

GRAPHICS - WARNING / CAUTION для Yamaha FX HWAVERUNNER FX HO [FY1800K] - 2011 года выпуска
‹-+›
-
№АртикулНазвание
-
1F1W-U41B1-00-00 LABEL, WARNING UNIFORM 1LABEL, WARNING UNIFORM 1
-
2F1S-U415B-01-00 LABEL, WARNING (FUEL)LABEL, WARNING (FUEL)
-
3F0V-U41D5-21-00 LABEL, WARNING SHIFT LEVERLABEL, WARNING SHIFT LEVER
-
4F0V-U41DB-02-00 LABEL, WARNING BATTERYLABEL, WARNING BATTERY
-
5F0V-U41F5-01-00 LABEL, FIRE EXTINGUISHER 1LABEL, FIRE EXTINGUISHER 1
-
6F1G-U418F-00-00 LABEL, RIGHTINGLABEL, RIGHTING
-
7F1S-U41E1-01-00 LABEL, SET 1LABEL, SET 1
