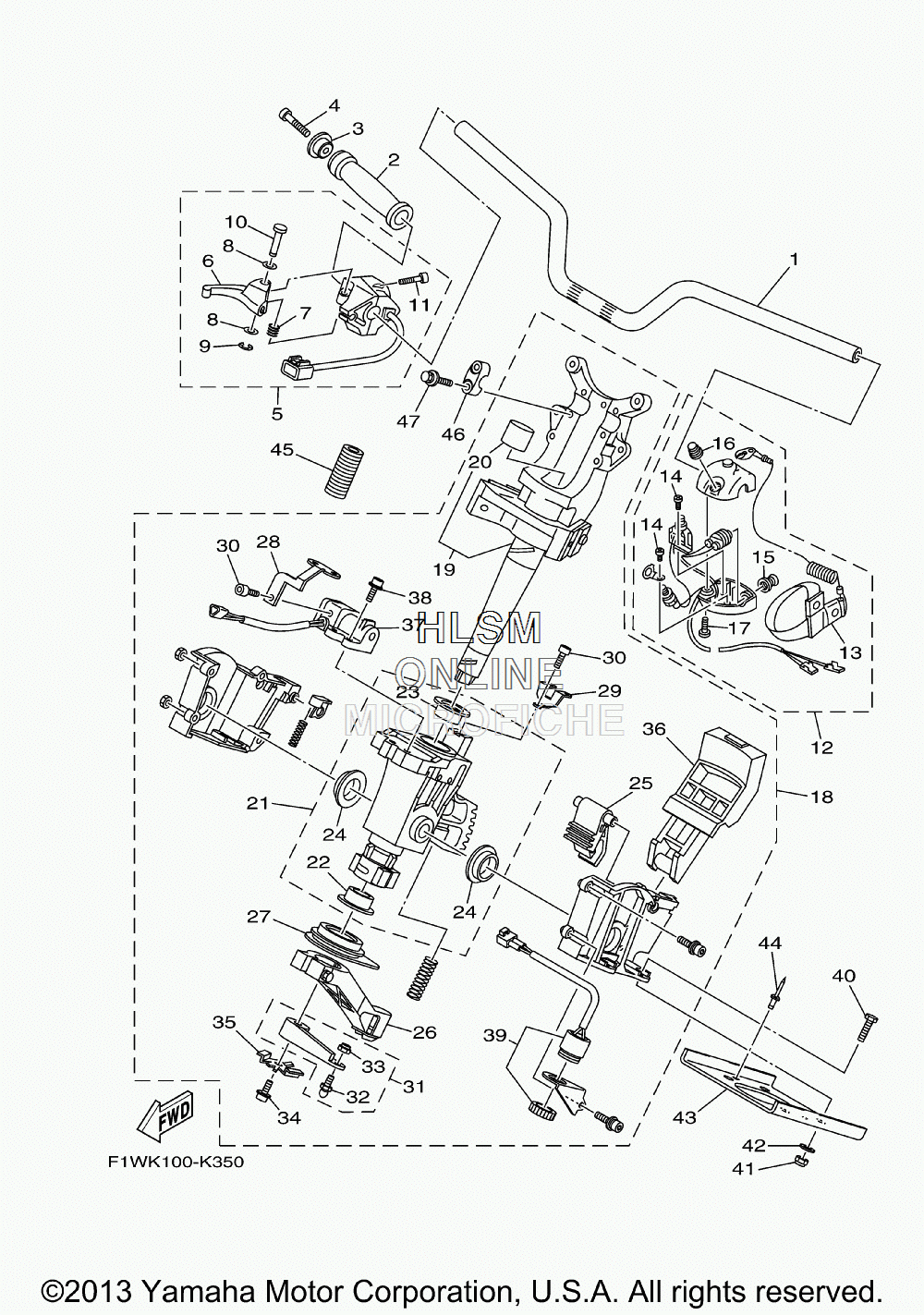

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha FX HWAVERUNNER FX HO [FY1800K] - 2011 года выпуска
-
№АртикулНазвание
-
1F1B-61552-00-00 HANDLEHANDLE
-
2GP7-U155D-01-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F1W-67250-01-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-02-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
11F1X-6725F-01-00 ...BOLT, THROTTLE...BOLT, THROTTLE
-
12F1S-68310-01-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F1W-61400-00-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
19F1W-67410-00-00 ...SHAFT ASSY...SHAFT ASSY
-
20F1W-61435-00-00 ......SEAL, PIPE 30......SEAL, PIPE 30
-
21F1W-6773D-00-00 ...TUBE & BUSHING SET...TUBE & BUSHING SET
-
22F1S-6134M-00-00 ......BUSH......BUSH
-
23F2C-6134M-00-00 ......BUSH......BUSH
-
24F1S-6134M-10-00 ......BUSH......BUSH
-
25F1S-61782-00-00 ...LOCK 1...LOCK 1
-
26F1S-6146A-00-00 ...CABLE STOPPER ASSY....CABLE STOPPER ASSY.
-
27F1S-6143C-00-00 ...SEAL, RUBBER...SEAL, RUBBER
-
28F1W-65938-00-00 ...STAY 1...STAY 1
-
29F1S-65939-00-00 ...STAY 2...STAY 2
-
30F1B-613C1-00-00 ...SCREW...SCREW
-
31F1S-6153R-01-00 ...ARM ASSY....ARM ASSY.
-
32EU0-61461-02-00 ......STUD, JOINT BALL......STUD, JOINT BALL
-
3395720-06300-00 ......NUT, SELF-LOCKING......NUT, SELF-LOCKING
-
34F1W-61355-00-00 ...BOLT...BOLT
-
35F1W-6142B-00-00 ...PLATE, RETAINING...PLATE, RETAINING
-
36F1W-6151M-00-00 ...LEVER ASSY...LEVER ASSY
-
37F1W-68303-00-00 ...SENSOR ASSY...SENSOR ASSY
-
38F1S-61355-00-00 ...BOLT...BOLT
-
39F1S-68341-00-00 ...BUZZER...BUZZER
-
4097080-08035-00 BOLTBOLT
-
419572R-08300-00 NUT, FLANGENUT, FLANGE
-
42F1W-U725E-00-00 WASHERWASHER
-
43F1X-U1554-00-00 PLATE, RETAININGPLATE, RETAINING
-
4490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
4590447-16800-00 HOSE WITH SPRINGHOSE WITH SPRING
-
46EU0-23814-31-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4790119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
