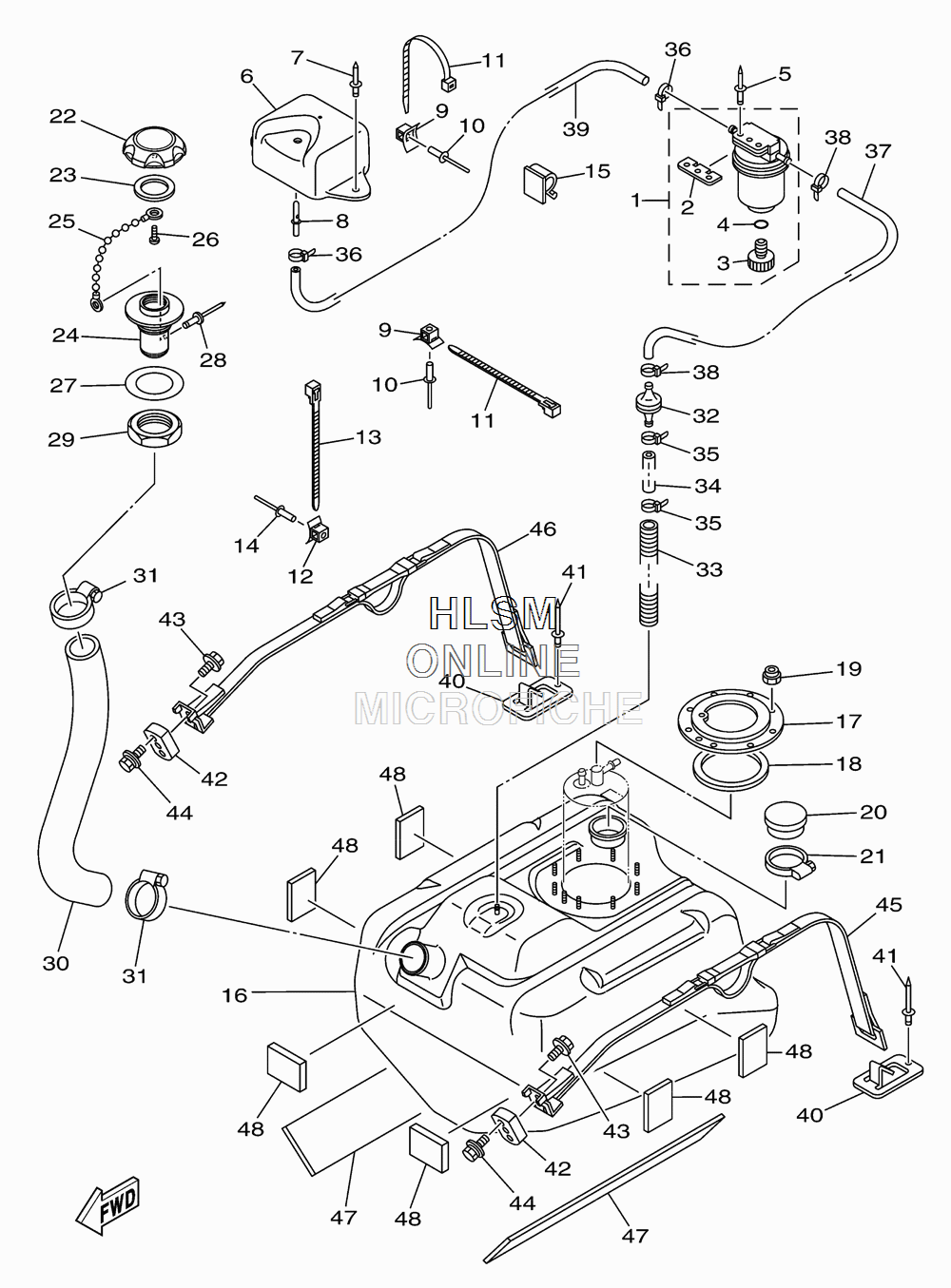

FUEL TANK для Yamaha FZR - 2010 года выпуска`
-
№АртикулНазвание
-
1F2F-6214A-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
2EW2-62142-00-00 PLATE, FILTERPLATE, FILTER
-
370R-24543-00-00 PLUG, DRAINPLUG, DRAIN
-
470R-24489-00-00 O-RINGO-RING
-
590267-489U2-00 RIVET, BLINDRIVET, BLIND
-
6F1W-U2159-00-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
8F1G-62149-00-00 PIPE, VENTILATIONPIPE, VENTILATION
-
9F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1190464-32801-00 CLAMPCLAMP
-
12F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1390464-32801-00 CLAMPCLAMP
-
1490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1590464-17800-00 CLAMPCLAMP
-
16F1W-U7711-01-00 TANK, FUELTANK, FUEL
-
17F1B-U7773-00-00 RINGRING
-
18F1B-67747-00-00 PACKING, SEALPACKING, SEAL
-
199572R-06300-00 NUT, NYLONNUT, NYLON
-
20FN8-6771K-00-00 COVERCOVER
-
2190601-162U5-00 BAND, HOSE 62BAND, HOSE 62
-
22F2N-U7831-01-00 CAP, FUEL FILLER BLACKCAP, FUEL FILLER BLACK
-
23GP7-U7832-01-00 PACKINGPACKING
-
24GP7-U7833-11-00 SOCKETSOCKET
-
25GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
2690169-049U1-00 TAPPING SCREWTAPPING SCREW
-
27GP7-U7834-10-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
2890267-329UR-00 RIVET, BLINDRIVET, BLIND
-
29GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
-
30F2C-U7844-00-00 HOSEHOSE
-
3190601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
32EU0-67767-31-00 CHECK VALVECHECK VALVE
-
3390447-22804-00 TUBETUBE
-
34F2C-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
3590465-11829-00 CLAMPCLAMP
-
3690465-11829-00 CLAMPCLAMP
-
37F2C-U785G-00-00 HOSE, AIR VENTHOSE, AIR VENT
-
3890465-11829-00 CLAMPCLAMP
-
39F0D-U7856-10-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
40F1K-U5772-03-00 HOOK AHOOK A
-
4190267-489U1-00 RIVET,BLINDRIVET,BLIND
-
42F1X-U2873-00-00 NUT, SPECIALNUT, SPECIAL
-
4390119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4490119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
45F2C-67743-00-00 BELT, TANK 1BELT, TANK 1
-
46F2C-67743-10-00 BELT, TANK 1BELT, TANK 1
-
47F1W-U759B-00-00 MAT 1MAT 1
-
48F1W-U759C-01-00 MAT 2MAT 2
