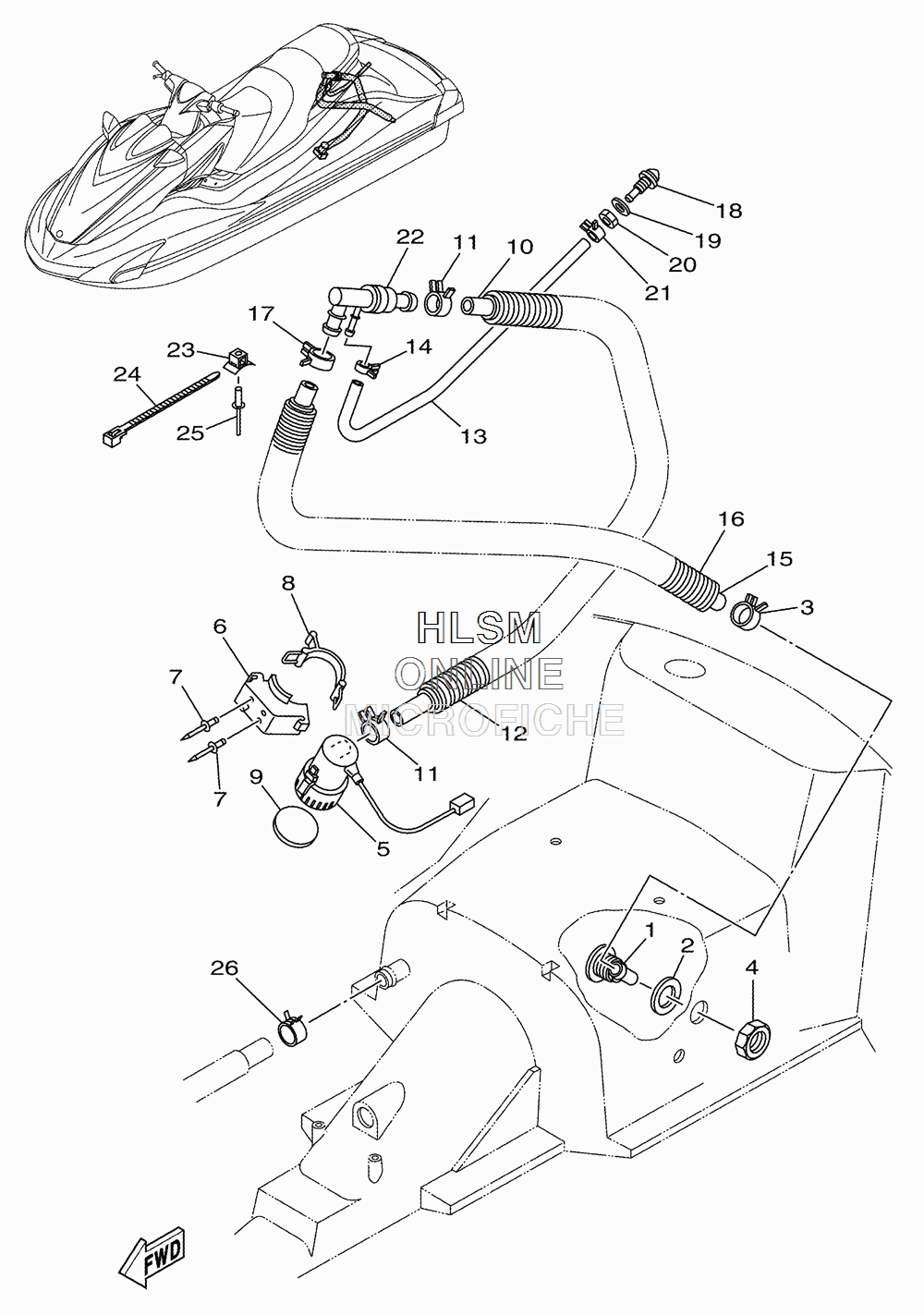

BILGE PUMP для Yamaha FZR - 2010 года выпуска`
-
№АртикулНазвание
-
1F1W-U224E-00-00 BODY, DRAIN 3BODY, DRAIN 3
-
2F1S-U7525-01-00 PACKINGPACKING
-
390467-26800-00 CLIPCLIP
-
4F1B-62241-00-00 DRAIN, COCKPITDRAIN, COCKPIT
-
5F1B-U8360-01-00 BILGE PUMP ASSYBILGE PUMP ASSY
-
6F1B-U7698-01-00 BRACKETBRACKET
-
790267-489UP-00 RIVET, BLINDRIVET, BLIND
-
8GA7-68218-00-00 BAND, BATTERYBAND, BATTERY
-
9F1B-U7656-00-00 PACKING, BILGEPACKING, BILGE
-
10F1B-U7626-00-00 HOSE 1HOSE 1
-
1190467-25801-00 CLIPCLIP
-
1290447-28004-00 HOSE, WITH SPRING (L800)HOSE, WITH SPRING (L800)
-
13F1W-U7629-00-00 HOSE, DRAIN 2HOSE, DRAIN 2
-
1490467-14803-00 CLIPCLIP
-
15F1B-U7628-00-00 HOSE, DRAIN 3HOSE, DRAIN 3
-
1690447-28004-00 HOSE, WITH SPRING (L800)HOSE, WITH SPRING (L800)
-
1790467-26800-00 CLIPCLIP
-
18GH7-6753B-00-00 PILOT,WATERPILOT,WATER
-
1990430-16910-00 GASKETGASKET
-
20GP7-61652-00-00 NUTNUT
-
2190467-14803-00 CLIPCLIP
-
22F1S-67620-00-00 HOSE JOINTHOSE JOINT
-
23F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
24F2C-U4256-00-00 CLAMPCLAMP
-
2590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2690467-26800-00 CLIPCLIP
