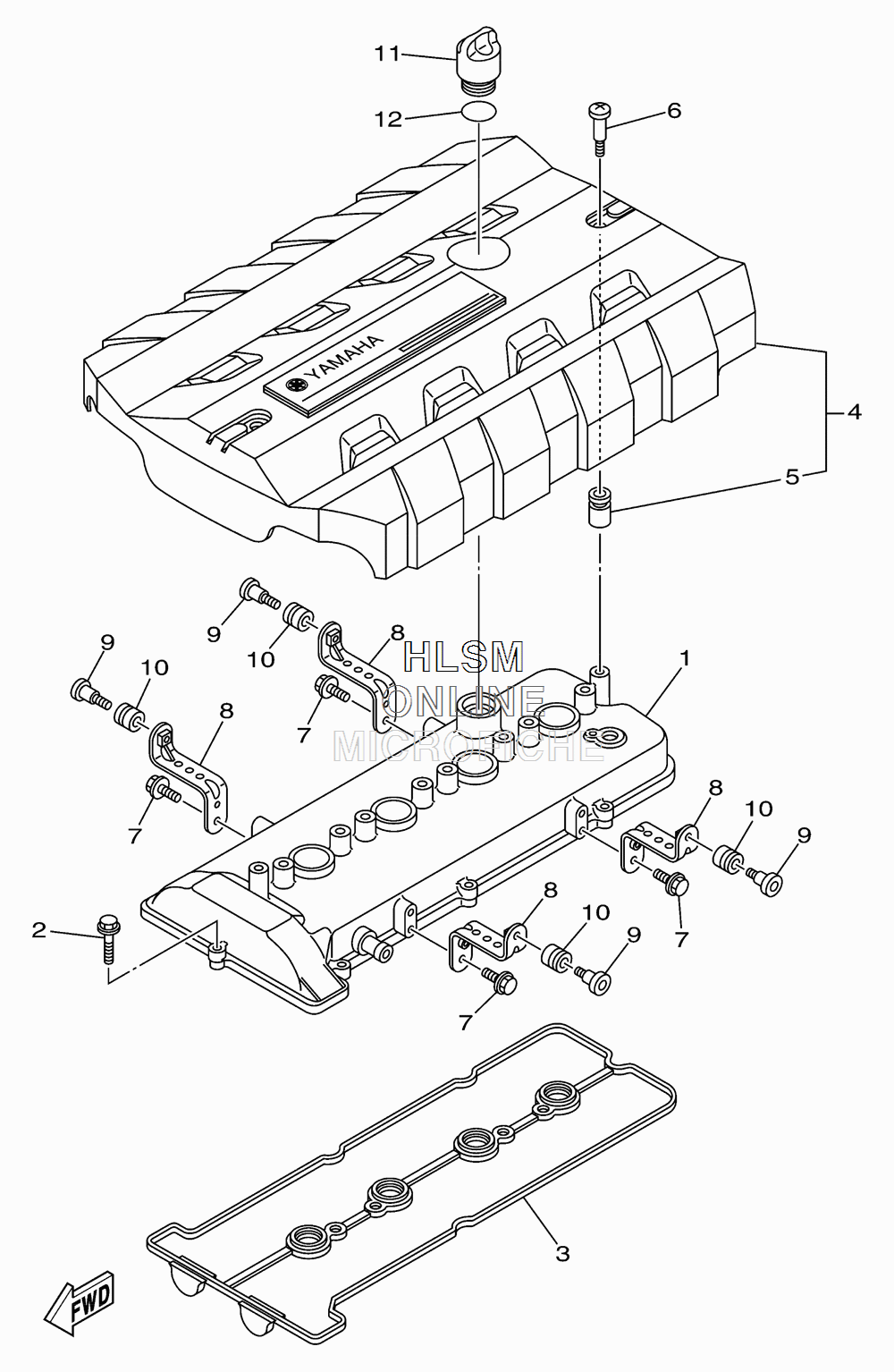

CYLINDER HEAD COVER ASSY. для Yamaha FZR - 2010 года выпуска`
-
№АртикулНазвание
-
16S5-11191-00-94 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
290105-06028-00 BOLT, FLANGEBOLT, FLANGE
-
36S5-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
46S5-E110M-00-00 COVER ASSY 1COVER ASSY 1
-
56S5-E1328-00-00 GROMMET, ANODEGROMMET, ANODE
-
66S5-E118E-00-00 BOLT, COVER MOUNTINGBOLT, COVER MOUNTING
-
795814-06012-00 BOLT, FLANGEBOLT, FLANGE
-
86S5-11941-00-00 STAYSTAY
-
96S5-11026-00-00 BOLT, MOUNTBOLT, MOUNT
-
106S5-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
116S5-15363-00-00 PLUG, OILPLUG, OIL
-
1293210-24M79-00 O-RINGO-RING
Все узлы модели:
- AIR CLEANER ASSY.
- BILGE PUMP
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER 2
- • CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- SUPER CHARGER ASSY
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
