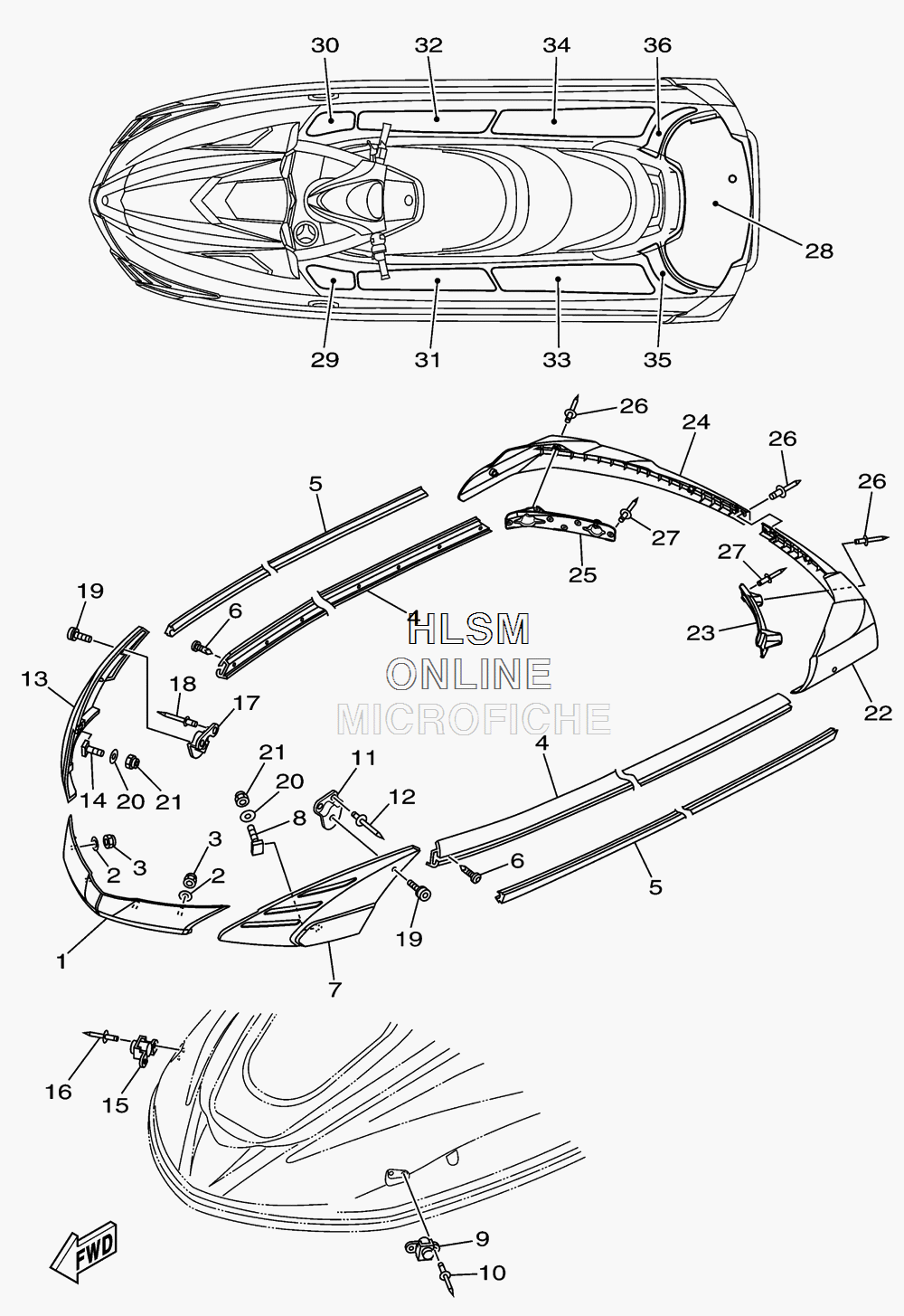

HULL - GUNWALE - MAT для Yamaha FX CRUISER HO - 2010 года выпуска`
-
№АртикулНазвание
-
1F1W-U2501-01-00 BOW GUNWALE COMP.BOW GUNWALE COMP.
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, NYLONNUT, NYLON
-
4F1B-U2512-20-00 GUNWALE, SIDEGUNWALE, SIDE
-
5F1B-U2519-10-00 INNER,GUNWALE (BLACK)INNER,GUNWALE (BLACK)
-
690169-059U1-00 SCREW,TAPPINGSCREW,TAPPING
-
7F1W-U252E-01-00 JOINT, GUNWALE LEFT HANDJOINT, GUNWALE LEFT HAND
-
8F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
9F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
11F1W-U4949-00-00 BRACKETBRACKET
-
1290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
13F1W-U252F-01-00 JOINT, GUNWALE RIGHT HANDJOINT, GUNWALE RIGHT HAND
-
14F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
15F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1690267-489U6-00 RIVET, BLINDRIVET, BLIND
-
17F1W-U4949-00-00 BRACKETBRACKET
-
1890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1990111-06114-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
209299R-06200-00 WASHERWASHER
-
219572R-06300-00 NUT, NYLONNUT, NYLON
-
22F1W-U251D-02-00 GUNWALE, STERN 1GUNWALE, STERN 1
-
23F1W-U251L-01-00 BRACKET, GUNWALE 1BRACKET, GUNWALE 1
-
24F1W-U251E-02-00 GUNWALE, STERN 2GUNWALE, STERN 2
-
25F1W-U251M-01-00 BRACKET, GUNWALE 2BRACKET, GUNWALE 2
-
2690267-48825-00 RIVET, BLINDRIVET, BLIND
-
2790267-489U8-00 RIVET, BLINDRIVET, BLIND
-
28F1W-U3581-10-00 MAT, UPPERMAT, UPPER
-
29F1W-U351H-10-00 MAT, STEP 1MAT, STEP 1
-
30F1W-U351J-10-00 MAT, STEP 2MAT, STEP 2
-
31F1W-U351K-10-00 MAT, STEP 3MAT, STEP 3
-
32F1W-U351M-10-00 MAT, STEP 4MAT, STEP 4
-
33F1W-U351N-10-00 MAT, STEP 5MAT, STEP 5
-
34F1W-U351P-10-00 MAT, STEP 6MAT, STEP 6
-
35F1W-U351R-10-00 MAT, STEP 7MAT, STEP 7
-
36F1W-U351S-10-00 MAT, STEP 8MAT, STEP 8
