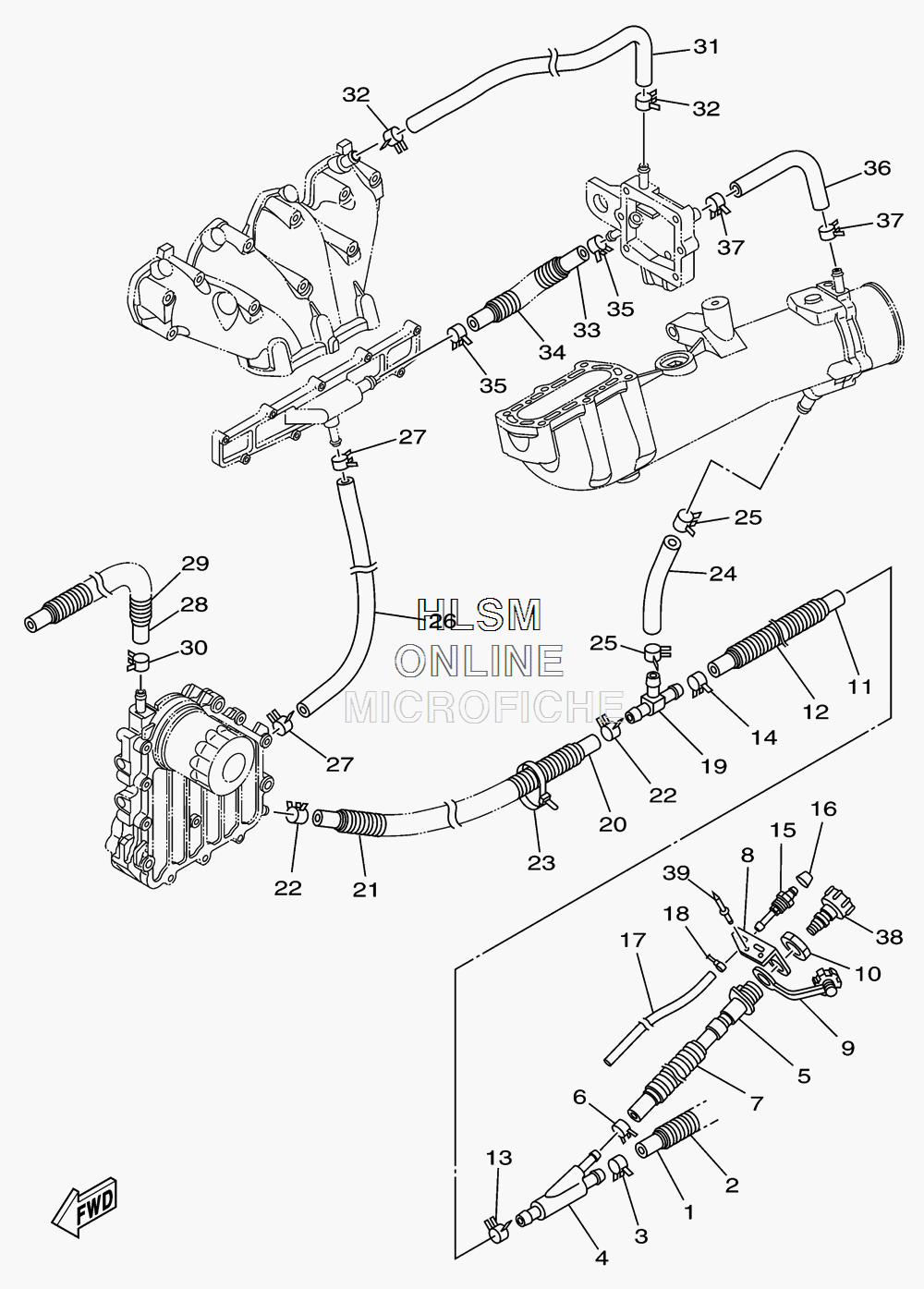

EXHAUST - HOSES для Yamaha FX CRUISER HO - 2010 года выпуска`
-
№АртикулНазвание
-
190445-21806-00 HOSE (L250)HOSE (L250)
-
290447-22801-00 TUBE (L200)TUBE (L200)
-
390467-200A0-00 CLIPCLIP
-
460E-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
563M-12580-00-00 JOINT ASSYJOINT ASSY
-
690467-150A0-00 CLIPCLIP
-
790447-19801-00 TUBE(L485)TUBE(L485)
-
86S5-12443-00-00 STAYSTAY
-
9682-84385-01-00 CAP,1CAP,1
-
10EU0-61652-00-00 NUTNUT
-
116S5-1243E-00-00 HOSE 2HOSE 2
-
1290447-22011-00 TUBE (L170)TUBE (L170)
-
1390467-200A0-00 CLIPCLIP
-
1490467-200A0-00 CLIPCLIP
-
1561L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
16663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
1790445-09M21-00 HOSE (L445)HOSE (L445)
-
1890465-11829-00 CLAMPCLAMP
-
196BH-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
2090445-18012-00 HOSE (L400)HOSE (L400)
-
2190447-19005-00 HOSE, WITH SPRING (L260)HOSE, WITH SPRING (L260)
-
2290467-160A0-00 CLIPCLIP
-
2390464-35132-00 CLAMPCLAMP
-
246S5-12589-00-00 HOSE 6HOSE 6
-
2590467-200A0-00 CLIPCLIP
-
266BH-1244H-00-00 HOSE 5HOSE 5
-
2790467-150A1-00 CLIPCLIP
-
286S5-12588-00-00 HOSE 5HOSE 5
-
2990447-19006-00 HOSE, WITH SPRING (L=630)HOSE, WITH SPRING (L=630)
-
3090467-160A0-00 CLIPCLIP
-
316BH-12577-00-00 HOSE 2HOSE 2
-
3290467-160A0-00 CLIPCLIP
-
336S5-12579-00-00 HOSE 4HOSE 4
-
3490447-19011-00 TUBE(L150)TUBE(L150)
-
3590467-160A0-00 CLIPCLIP
-
3690445-16013-00 HOSE (L220)HOSE (L220)
-
3790467-160A0-00 CLIPCLIP
-
3867X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
3990267-489U1-00 RIVET,BLINDRIVET,BLIND
