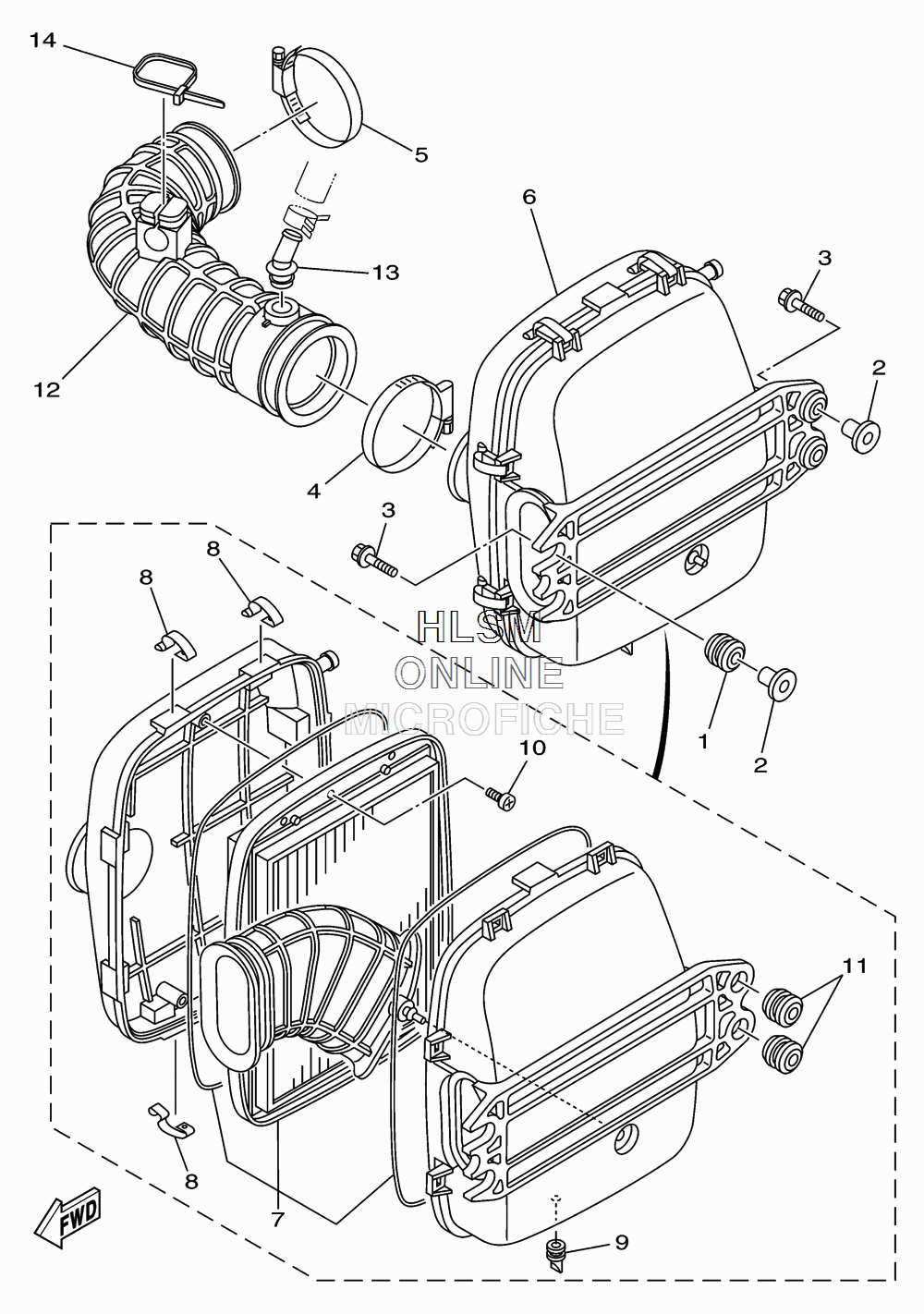

AIR CLEANER ASSY. для Yamaha FX CRUISER HO - 2010 года выпуска`
-
№АртикулНазвание
-
190480-22M15-00 GROMMETGROMMET
-
26D3-14495-00-00 COLLARCOLLAR
-
390119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490450-90001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
590450-90001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
66S5-E4410-01-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
76S5-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
86S5-E4436-00-00 HOOKHOOK
-
96S5-G2717-00-00 RUBBER, SEAL 2RUBBER, SEAL 2
-
1097780-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
1190480-22801-00 GROMMETGROMMET
-
126BH-E4419-00-00 PIPEPIPE
-
136BH-R1142-00-00 CONNECTIONCONNECTION
-
1490464-40825-00 CLAMPCLAMP
