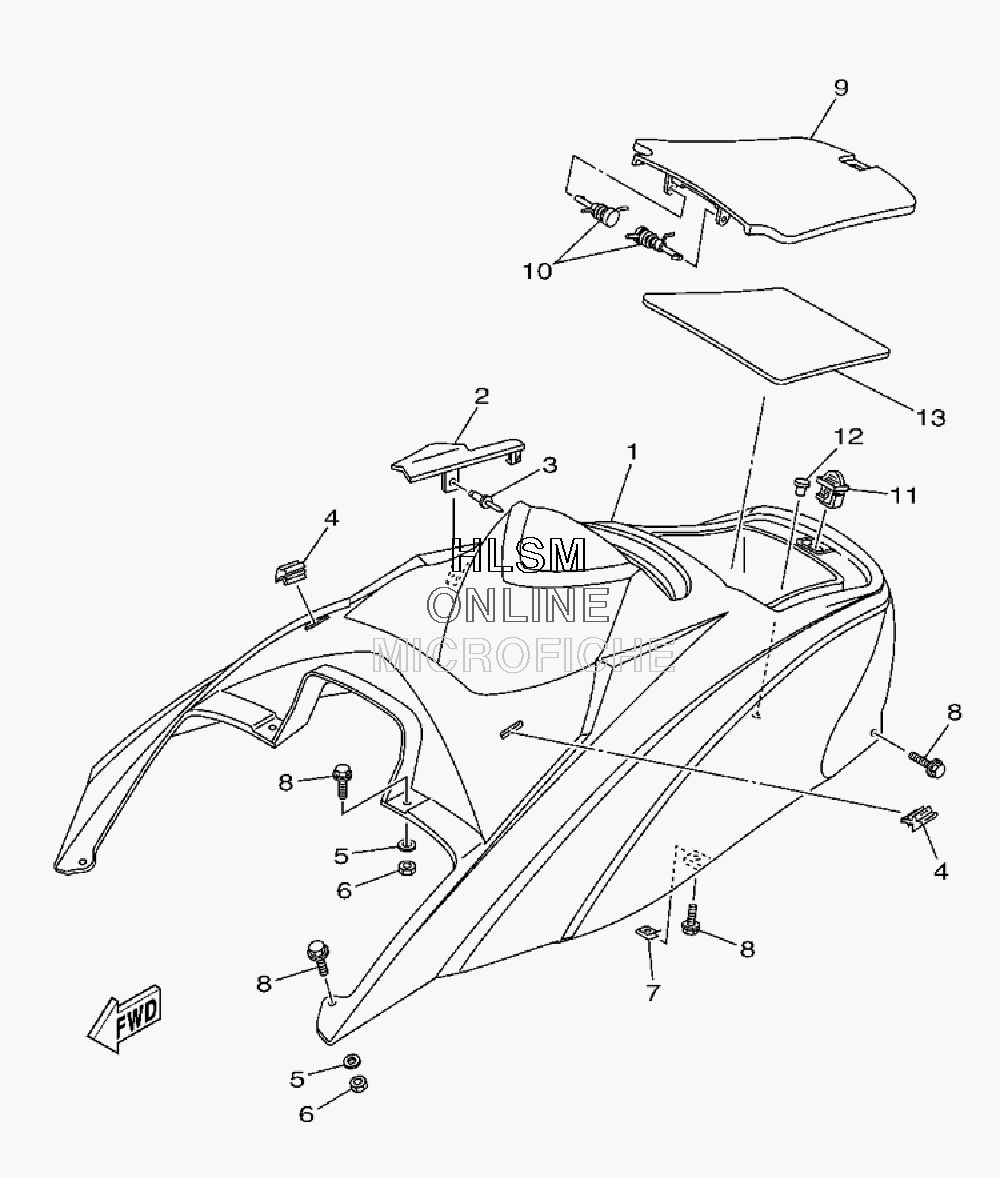

SIDE COVERS для Yamaha VX 3-PASS - 2009 года выпуска
-
№АртикулНазвание
-
1F1K-U516N-11-P0 COVER, ENGINE HATCH (DPBMT)COVER, ENGINE HATCH (DPBMT)
-
1F1K-U516N-03-P0 COVER, ENGINE HATCH (RM4)COVER, ENGINE HATCH (RM4)
-
2F1K-U2723-00-00 SEALSEAL
-
390269-09805-00 RIVETRIVET
-
4F1K-U266C-00-00 PACKING 4PACKING 4
-
59299R-06200-00 WASHERWASHER
-
69572R-06300-00 NUT, NYLONNUT, NYLON
-
790183-06902-00 NUT, SPRINGNUT, SPRING
-
890119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
9F1K-U517H-01-00 LID HATCHLID HATCH
-
10F0X-6517R-01-00 PIN, HINGEPIN, HINGE
-
11GU2-62875-01-00 LOCKLOCK
-
1290605-502U1-00 PLUG, BLINDPLUG, BLIND
-
13F1K-U519D-00-00 PACKING CASEPACKING CASE
