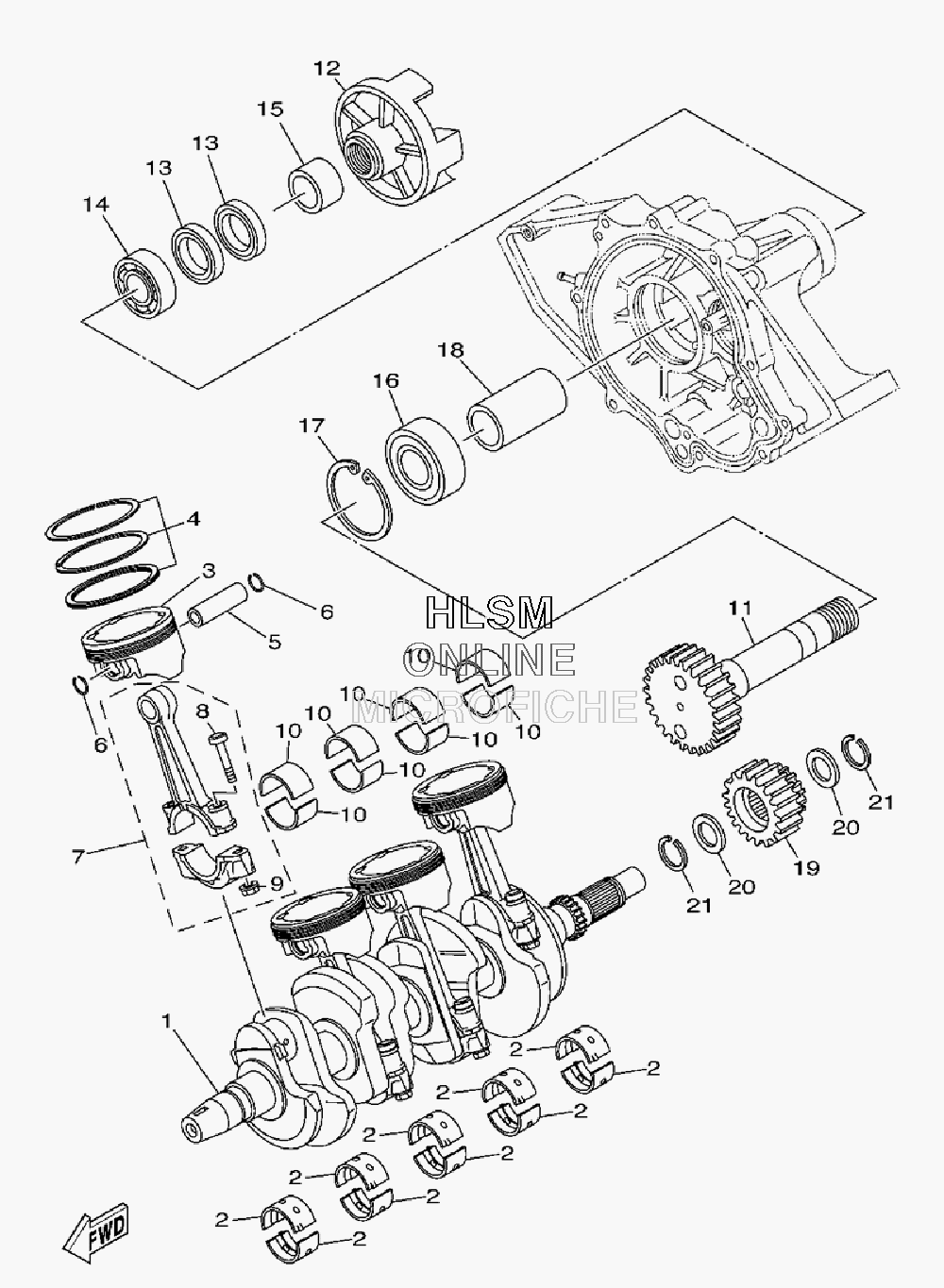

CRANKSHAFT W/ PISTON для Yamaha VX 3-PASS - 2009 года выпуска`
-
№АртикулНазвание
-
160E-11411-11-00 CRANKSHAFTCRANKSHAFT
-
26D3-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
26D3-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
26D3-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (RED)PLANE BEARING, CRANKSHAFT 1 (RED)
-
26D3-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
26D3-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
36D3-11631-00-B0 PISTON (STD)PISTON (STD)
-
46D3-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
54XV-11633-00-00 PIN, PISTONPIN, PISTON
-
690468-12069-00 CLIPCLIP
-
76D3-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
85JW-11654-00-00 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
990179-08327-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1060E-11656-00-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
1060E-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
1060E-11656-20-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
1060E-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
116D3-17572-00-00 SHAFT, TRANSFERSHAFT, TRANSFER
-
126D3-45813-00-94 FLANGE, COUPLINGFLANGE, COUPLING
-
1393101-35004-00 OIL SEALOIL SEAL
-
1493306-07801-00 BEARINGBEARING
-
156B6-11478-00-00 COLLARCOLLAR
-
1693306-30610-00 BEARINGBEARING
-
1799009-72500-00 CIRCLIPCIRCLIP
-
186B6-17585-00-00 COLLAR, GEARCOLLAR, GEAR
-
196B6-17586-00-00 GEAR, TRANSFER DRIVEGEAR, TRANSFER DRIVE
-
2090209-25008-00 WASHERWASHER
-
2193440-28062-00 CIRCLIP, OUTERCIRCLIP, OUTER
