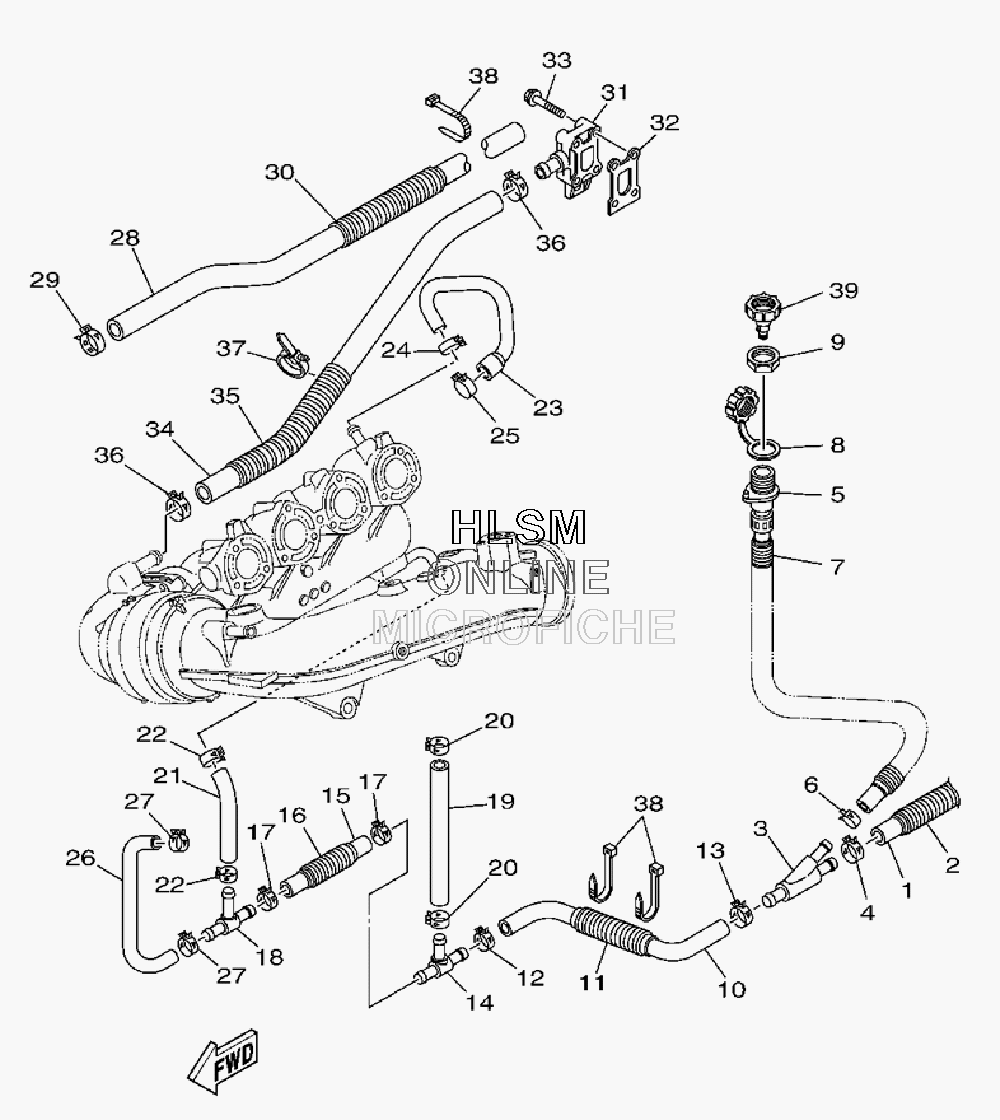

EXHAUST - HOSES для Yamaha VX 3-PASS - 2009 года выпуска`
-
№АртикулНазвание
-
190445-21805-00 HOSE (L300)HOSE (L300)
-
290447-22004-00 HOSE, WITH SPRING (L200)HOSE, WITH SPRING (L200)
-
360E-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
490467-200A0-00 CLIPCLIP
-
563M-12580-00-00 JOINT ASSYJOINT ASSY
-
690467-150A0-00 CLIPCLIP
-
790446-24M79-00 HOSE (L230)HOSE (L230)
-
8682-84385-01-00 CAP,1CAP,1
-
9EU0-61652-00-00 NUTNUT
-
106D3-1243A-10-00 HOSE 1HOSE 1
-
1190447-22004-00 HOSE, WITH SPRING (L200)HOSE, WITH SPRING (L200)
-
1290467-200A0-00 CLIPCLIP
-
1390467-200A0-00 CLIPCLIP
-
1460E-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
156D3-1243E-10-00 HOSE 2HOSE 2
-
1690447-22001-00 HOSE, WITH SPRING (L100)HOSE, WITH SPRING (L100)
-
1790467-200A0-00 CLIPCLIP
-
186D3-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
196D3-1244H-10-00 HOSE 5HOSE 5
-
2090467-160A0-00 CLIPCLIP
-
2190445-18M03-00 HOSE (L108)HOSE (L108)
-
2290467-160A0-00 CLIPCLIP
-
236D3-12577-10-00 HOSE 2HOSE 2
-
2490467-170A0-00 CLIPCLIP
-
2590467-200A0-00 CLIPCLIP
-
266D3-1244G-10-00 HOSE, 4HOSE, 4
-
2790467-160A0-00 CLIPCLIP
-
2890445-22003-00 HOSE (L1010)HOSE (L1010)
-
2990467-210A0-00 CLIPCLIP
-
3090447-22005-00 HOSE, WITH SPRING (L200)HOSE, WITH SPRING (L200)
-
316D3-12446-00-00 JOINTJOINT
-
3260E-12435-00-00 GASKETGASKET
-
3390105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
3490445-21004-00 HOSE (L530)HOSE (L530)
-
3590447-22005-00 HOSE, WITH SPRING (L200)HOSE, WITH SPRING (L200)
-
3690467-200A0-00 CLIPCLIP
-
3790464-31001-00 CLAMPCLAMP
-
3890464-35132-00 CLAMPCLAMP
-
3967X-E2590-00-00 CONDUCTION ASSY (US)CONDUCTION ASSY (US)
