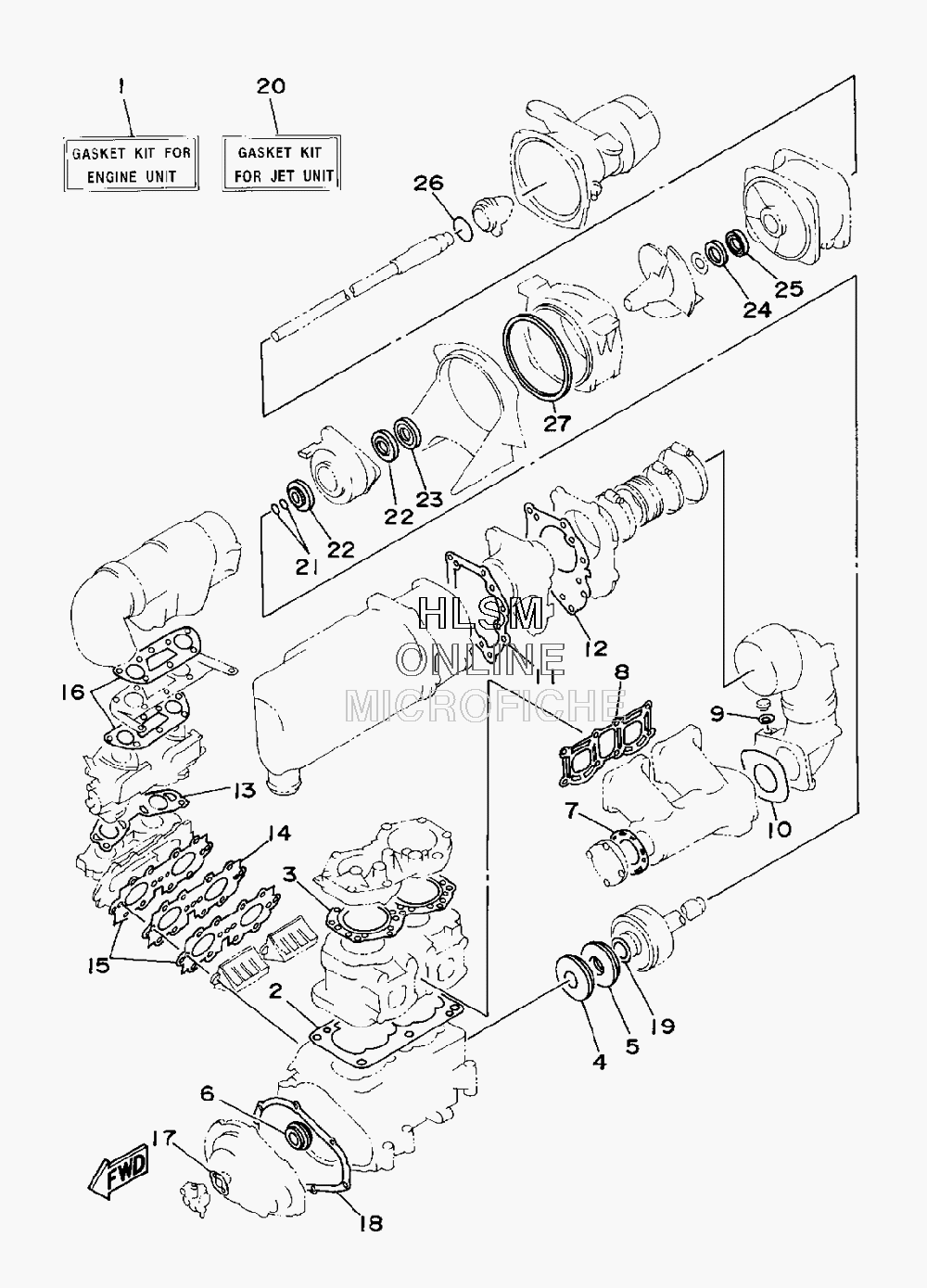

GASKET KIT - ENGINE AND JET UNIT для Yamaha SUPER JET - 2009 года выпуска`
-
№АртикулНазвание
-
164U-W0001-00-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
26M6-11351-A2-00 GASKET, CYLINDERGASKET, CYLINDER
-
362T-11181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
493102-36M33-00 OIL SEALOIL SEAL
-
593101-36M46-00 OIL SEALOIL SEAL
-
693103-32M01-00 OIL SEALOIL SEAL
-
76M6-14739-A1-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
861X-14613-A1-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
990430-08020-00 GASKETGASKET
-
106R7-14749-A1-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
116R7-14755-A0-00 GASKET, SILENCERGASKET, SILENCER
-
126R7-41114-A0-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
1362T-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
1462T-13624-00-00 PLATE, REED VALVEPLATE, REED VALVE
-
1562T-13566-00-00 GASKETGASKET
-
1662T-13674-00-00 GASKET, AIR COOLER COVER 1GASKET, AIR COOLER COVER 1
-
176R8-13116-A0-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
186M6-81365-A0-00 GASKET, HOLE COVERGASKET, HOLE COVER
-
1962T-45127-00-00 SEALSEAL
-
2061X-W0001-22-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
2193210-17MA4-00 O-RINGO-RING
-
2293101-25M55-00 OIL SEALOIL SEAL
-
2393101-25M56-00 OIL SEALOIL SEAL
-
2493102-25M34-00 OIL SEALOIL SEAL
-
2593101-25M50-00 OIL SEALOIL SEAL
-
2693210-46M16-00 O-RINGO-RING
-
276R7-51117-01-00 PACKINGPACKING
