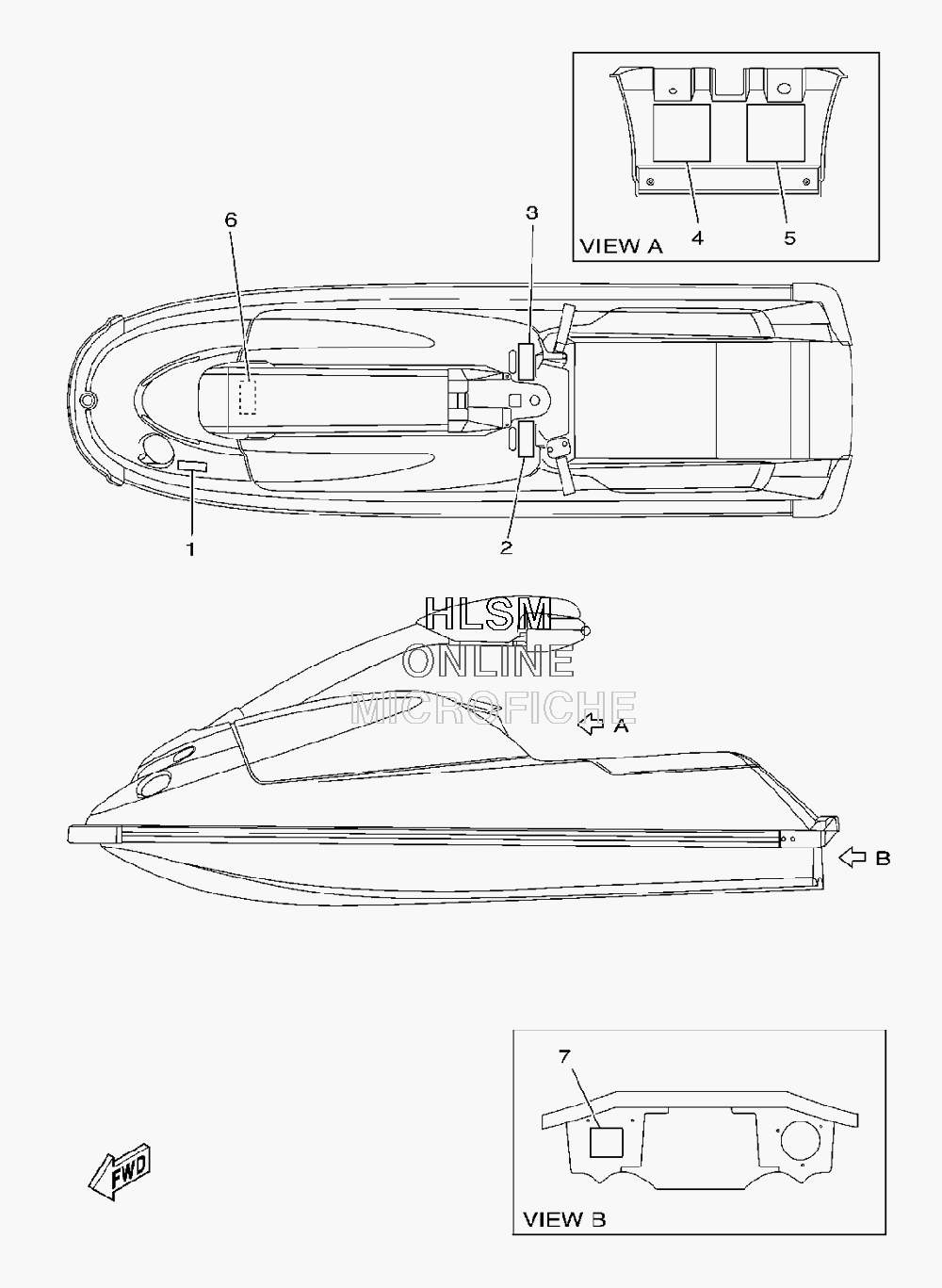

GRAPHICS - WARNING / CAUTION для Yamaha SUPER JET - 2009 года выпуска`
-
№АртикулНазвание
-
1F1N-6415B-00-00 LABEL, WARNING (FUEL)LABEL, WARNING (FUEL)
-
2GM6-641B1-01-00 LABEL, WARNING JDC 1LABEL, WARNING JDC 1
-
3GM6-641B1-10-00 LABEL, WARNING JDC 1LABEL, WARNING JDC 1
-
4GM6-641B2-00-00 LABEL, WARNING JDC 2LABEL, WARNING JDC 2
-
5GM6-641B2-10-00 LABEL, WARNING JDC 2LABEL, WARNING JDC 2
-
6F1N-641DB-00-00 LABEL, WARNING BATTERYLABEL, WARNING BATTERY
-
7EU0-64188-00-00 LABEL, RIGHTINGLABEL, RIGHTING
