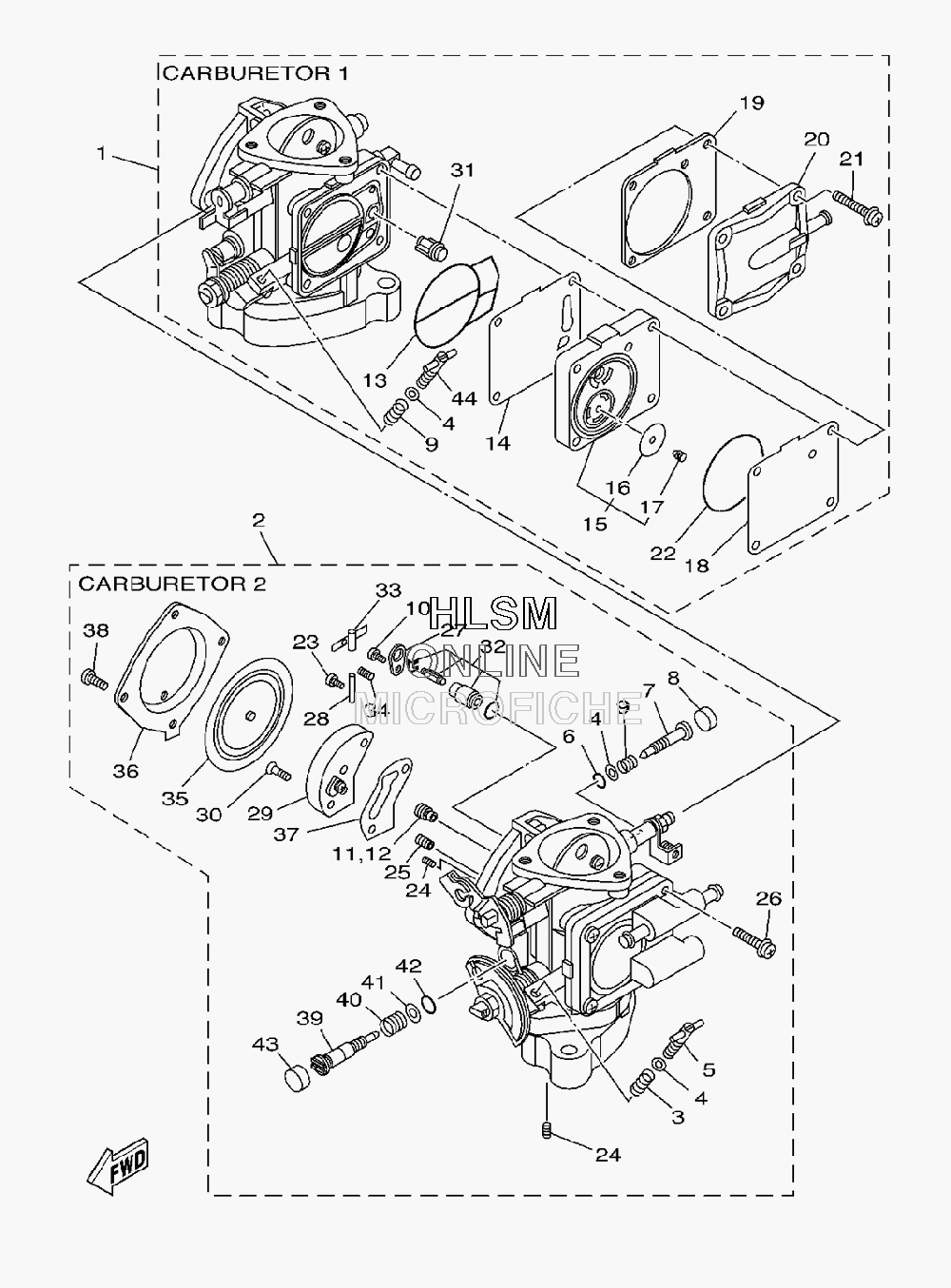

CARBURETOR для Yamaha SUPER JET - 2009 года выпуска
-
№АртикулНазвание
-
164U-14301-10-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
264U-14302-10-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
347X-14133-00-00 SPRING, THROTTLE STOP CARBURATOR 2SPRING, THROTTLE STOP CARBURATOR 2
-
4812-14235-00-00 WASHER, NEEDLEWASHER, NEEDLE
-
56M6-14521-01-00 SCREW, ADJUST CARBURATOR 2SCREW, ADJUST CARBURATOR 2
-
6812-14147-00-00 O-RINGO-RING
-
764U-14946-00-00 PLATE, NEEDLE FITTINGPLATE, NEEDLE FITTING
-
864U-1432A-00-00 PLUGPLUG
-
93KW-14932-00-00 SPRING, THROTTLE 2SPRING, THROTTLE 2
-
106M6-14503-00-00 SCREWSCREW
-
113G2-14231-26-00 JET, MAIN (#130) CARBURATOR 1JET, MAIN (#130) CARBURATOR 1
-
123G2-14231-26-00 JET, MAIN (#130) CARBURATOR 2JET, MAIN (#130) CARBURATOR 2
-
136K8-14564-00-00 O-RINGO-RING
-
146K8-24411-20-00 DIAPHRAGM CARBURATOR 1DIAPHRAGM CARBURATOR 1
-
156M6-24413-02-00 BODY 2 CARBURATOR 1BODY 2 CARBURATOR 1
-
1665U-24421-00-00 VALVE, CHECK CARBURATOR 1VALVE, CHECK CARBURATOR 1
-
1765U-24492-00-00 BUSH, FUEL PUMP CARBURATOR 1BUSH, FUEL PUMP CARBURATOR 1
-
186K8-24421-10-00 VALVE, CHECK CARBURATOR 1VALVE, CHECK CARBURATOR 1
-
196K8-24431-20-00 GASKET, FUEL PUMP 1 CARBURATOR 1GASKET, FUEL PUMP 1 CARBURATOR 1
-
206K8-24452-10-00 COVER CARBURATOR 1COVER CARBURATOR 1
-
2197980-05330-00 SCREW, WITH WASHER CARBURATOR 1SCREW, WITH WASHER CARBURATOR 1
-
226K8-14563-00-00 O-RINGO-RING
-
236K8-14503-02-00 SCREWSCREW
-
246K8-14521-10-00 SCREWSCREW
-
25830-14231-14-00 JET, MAIN (#70)JET, MAIN (#70)
-
2698580-05018-00 SCREW, PAN HEAD CARBURATOR 2SCREW, PAN HEAD CARBURATOR 2
-
276K8-14527-11-00 PLATEPLATE
-
28439-14186-00-00 PIN, FLOATPIN, FLOAT
-
296R7-24412-02-00 BODY 1BODY 1
-
306K8-14523-11-00 SCREW, STOPSCREW, STOP
-
316R7-14569-00-00 STRAINERSTRAINER
-
3261X-14916-16-00 NEEDLENEEDLE
-
336K8-14547-01-00 ARM, FLOATARM, FLOAT
-
346R7-14253-00-00 SPRINGSPRING
-
356R7-14541-00-00 DIAPHRAGM, PUMPDIAPHRAGM, PUMP
-
366R7-14542-00-00 BODY, PUMP 1BODY, PUMP 1
-
376K8-14536-11-00 GASKETGASKET
-
3897880-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3964U-14923-10-00 SCREW, PILOTSCREW, PILOT
-
406K8-14589-00-00 SPRINGSPRING
-
41822-14235-00-00 WASHER, NEEDLEWASHER, NEEDLE
-
42583-14561-00-00 O-RINGO-RING
-
4364U-1432A-10-00 PLUGPLUG
-
446K8-14521-01-00 SCREW, ADJUST CARBURATOR 1SCREW, ADJUST CARBURATOR 1
