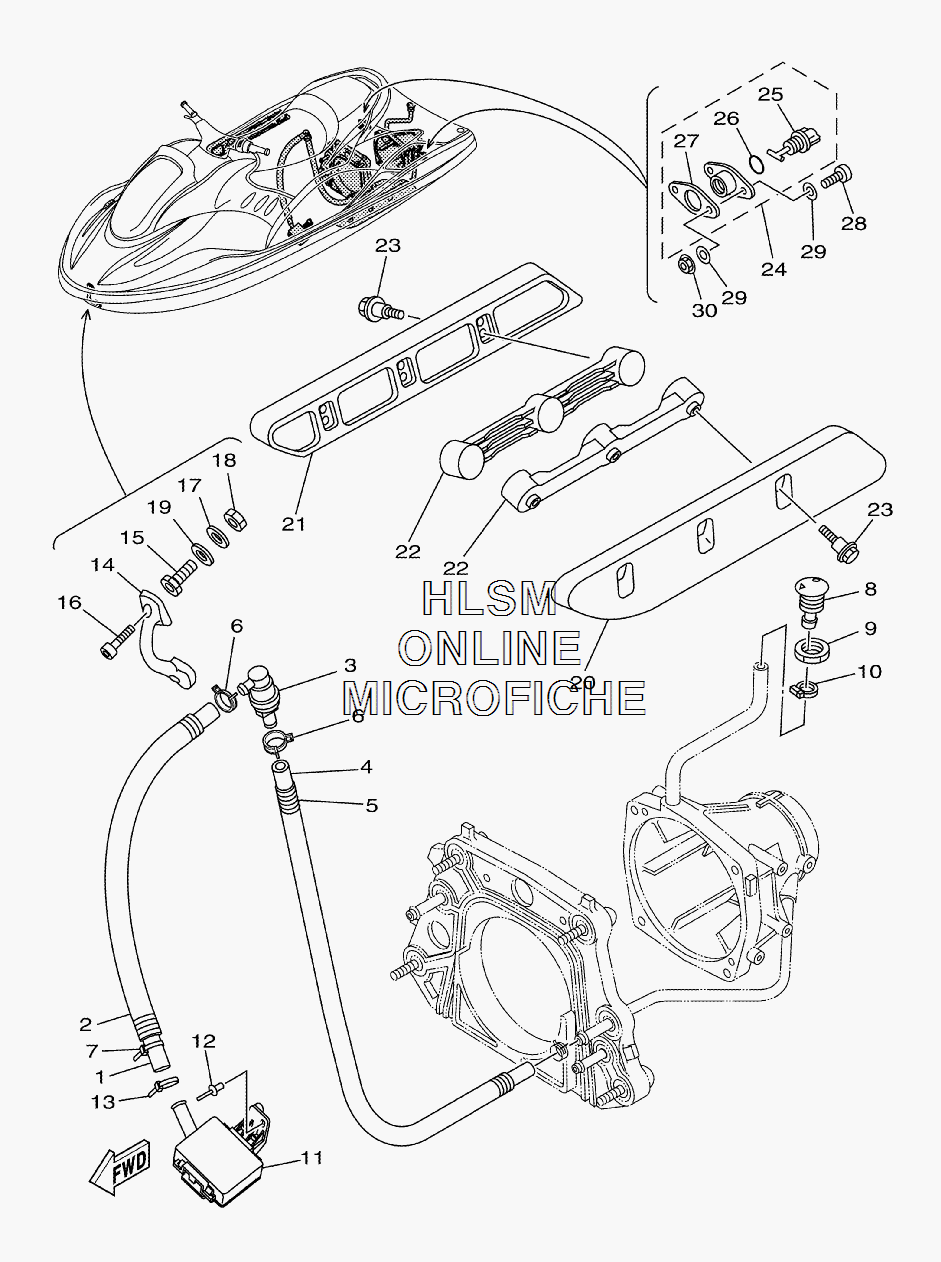

HULL FITTINGS W/ SPONSONS для Yamaha GP1300R - 2008 года выпуска`
-
№АртикулНазвание
-
190445-198C0-00 HOSE (L1000)HOSE (L1000)
-
290446-27M95-00 HOSE (L800)HOSE (L800)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-198B6-00 HOSE (L860)HOSE (L860)
-
590446-27M95-00 HOSE (L800)HOSE (L800)
-
690467-18804-00 CLIPCLIP
-
790601-200U1-00 BAND HOSE 50BAND HOSE 50
-
8FN8-6269B-00-00 SPOUTSPOUT
-
9EU0-61652-00-00 NUTNUT
-
1090601-118UF-00 NYLON CLIP 1NYLON CLIP 1
-
11F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1290267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1390601-200U1-00 BAND HOSE 50BAND HOSE 50
-
14F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
15F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
1690110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
17F0X-61637-00-00 WASHERWASHER
-
1899780-12600-00 NUT.HEX.(COARSE)NUT.HEX.(COARSE)
-
1992990-12200-00 WASHER, PLAINWASHER, PLAIN
-
20F0X-U883N-00-00 STABILIZER LH (BLACK)STABILIZER LH (BLACK)
-
21F0X-U883P-00-00 STABILIZER RH (BLACK)STABILIZER RH (BLACK)
-
22F1B-U883T-02-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
23F1G-U2624-10-00 BOLTBOLT
-
24EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
25EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
26EU0-62283-00-00 ...O-RING...O-RING
-
27EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
289788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
299299R-05200-00 WASHERWASHER
-
309572R-05300-00 NUT, FLANGENUT, FLANGE
