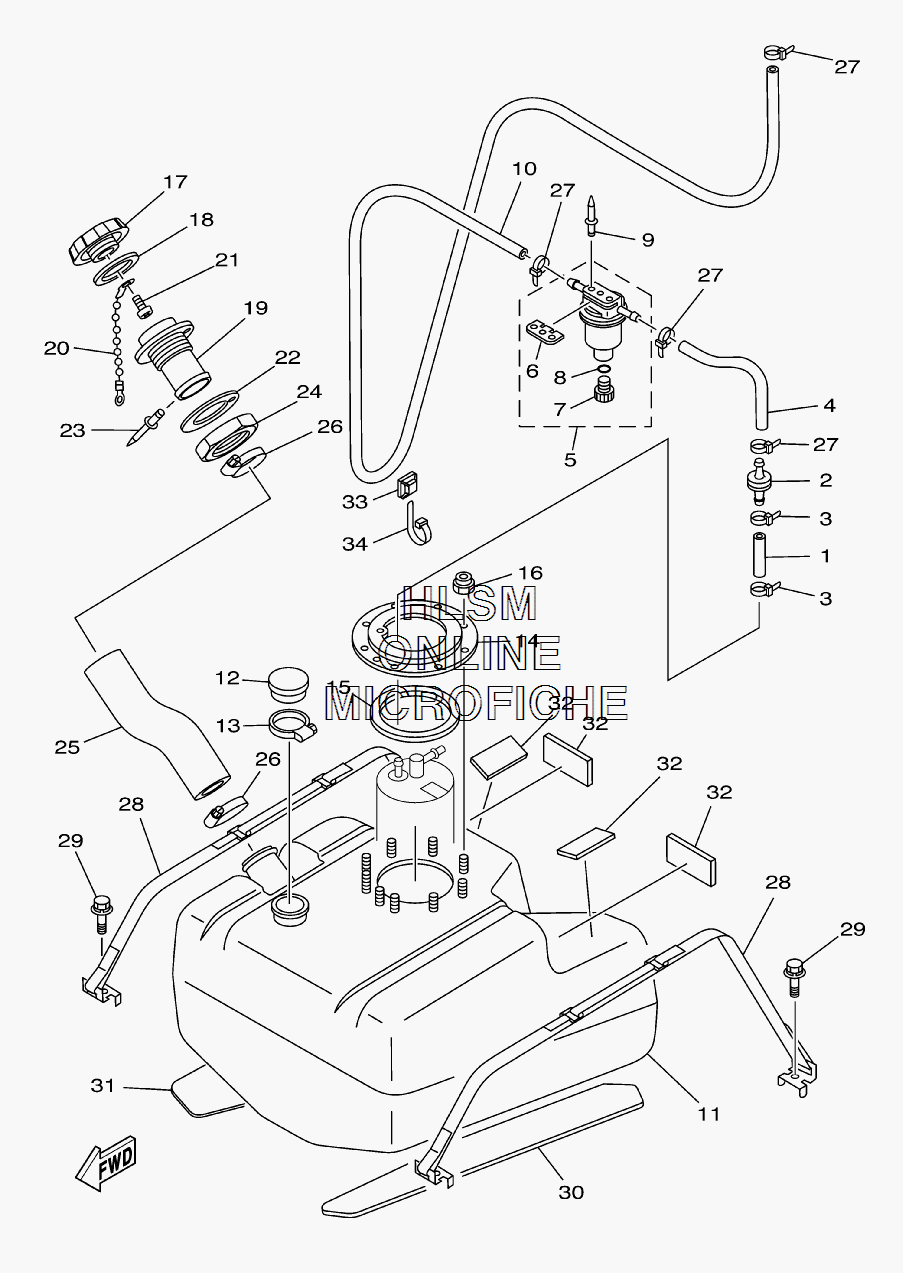

FUEL TANK для Yamaha GP1300R - 2008 года выпуска`
-
№АртикулНазвание
-
1GP7-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
2EU0-67767-31-00 CHECK VALVECHECK VALVE
-
390465-11829-00 CLAMPCLAMP
-
4GJ3-U7856-10-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
5EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
6EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
770R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
870R-24489-00-00 ...O-RING...O-RING
-
990267-489U2-00 RIVET, BLINDRIVET, BLIND
-
10GP7-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
11F1G-U7711-00-00 TANK, FUELTANK, FUEL
-
12FN8-6771K-00-00 COVERCOVER
-
1390601-162U5-00 BAND, HOSE 62BAND, HOSE 62
-
14F1B-U7773-00-00 RINGRING
-
15F1B-67747-00-00 PACKING, SEALPACKING, SEAL
-
169572R-06300-00 NUT, NYLONNUT, NYLON
-
17GP7-U7831-11-00 CAP, FUEL FILLER (BLACK)CAP, FUEL FILLER (BLACK)
-
18GP7-U7832-01-00 PACKINGPACKING
-
19GP7-U7833-10-00 SOCKET (BLACK)SOCKET (BLACK)
-
20GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
2190169-049U1-00 TAPPING SCREWTAPPING SCREW
-
22GP7-U7834-00-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
2390267-329UR-00 RIVET, BLINDRIVET, BLIND
-
24GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
-
25F0X-U7844-10-00 HOSEHOSE
-
2690601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
2790465-11829-00 CLAMPCLAMP
-
28F0X-67743-00-00 BELT, TANK 1BELT, TANK 1
-
2990119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F0X-U759B-00-00 MAT 1MAT 1
-
31F0X-U759C-00-00 MAT 2MAT 2
-
32GJ1-U759C-00-00 MAT 2MAT 2
-
3390600-900U6-00 BASE, CLAMPBASE, CLAMP
-
3490464-40825-00 CLAMPCLAMP
