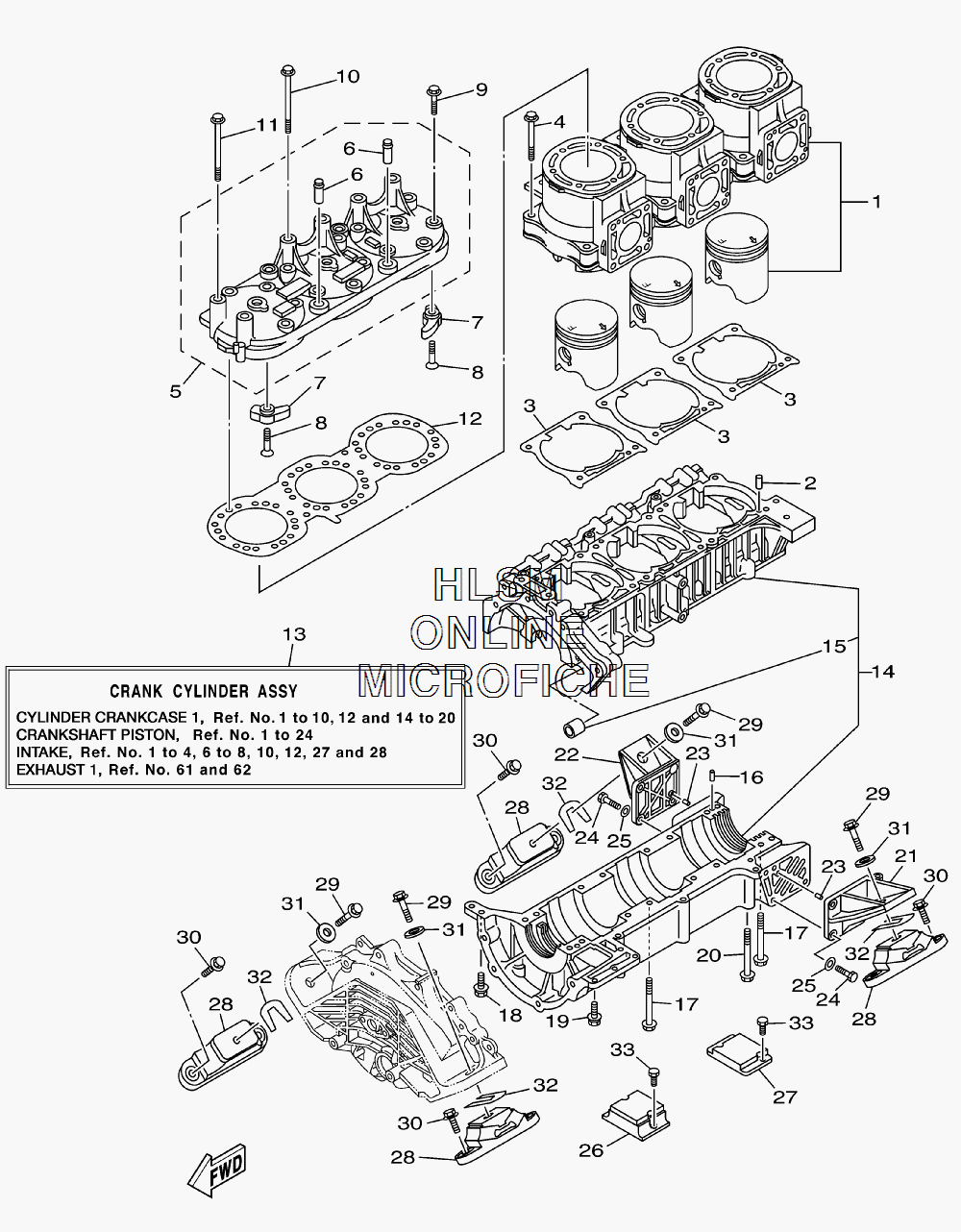

CYLINDER W/ CRANKCASE для Yamaha GP1300R - 2008 года выпуска`
-
№АртикулНазвание
-
160T-W1130-10-8S CYLINDER & PISTON SETCYLINDER & PISTON SET
-
293606-12019-00 PIN, DOWELPIN, DOWEL
-
366E-11351-02-00 GASKET, CYLINDERGASKET, CYLINDER
-
490119-10M07-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
560T-11111-10-8S HEAD, CYLINDER 1HEAD, CYLINDER 1
-
666E-51129-00-00 ...NIPPLE...NIPPLE
-
766E-11325-00-00 ANODEANODE
-
898780-05020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
990119-08MA1-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090119-08064-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190119-08M67-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1260T-11181-10-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1360T-W0090-04-8S CRANK CYLINDER ASSYCRANK CYLINDER ASSY
-
1460T-15100-00-8S CRANKCASE ASSYCRANKCASE ASSY
-
1590380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
1693606-12019-00 PIN, DOWELPIN, DOWEL
-
1790119-08M63-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890119-08M18-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990119-06M13-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090119-06M84-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2168N-21425-00-94 BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
2268N-21426-00-94 BRACKET, REAR UPPER 2BRACKET, REAR UPPER 2
-
2393606-12019-00 PIN, DOWELPIN, DOWEL
-
2497013-08025-00 BOLTBOLT
-
2592903-08600-00 WASHER, PLATEWASHER, PLATE
-
2666V-44532-00-94 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
2766V-44574-00-94 STOPPER, LOWER MOUNT RUBBERSTOPPER, LOWER MOUNT RUBBER
-
2867X-44517-10-94 MOUNT RUBBERMOUNT RUBBER
-
2990119-089UR-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190201-099U3-00 WASHER, PLATEWASHER, PLATE
-
32EU0-U7354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
32EU0-U7354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
32EU0-U7354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
32EU0-U7354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
32EU0-U7354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
-
3390101-06917-00 BOLTBOLT
