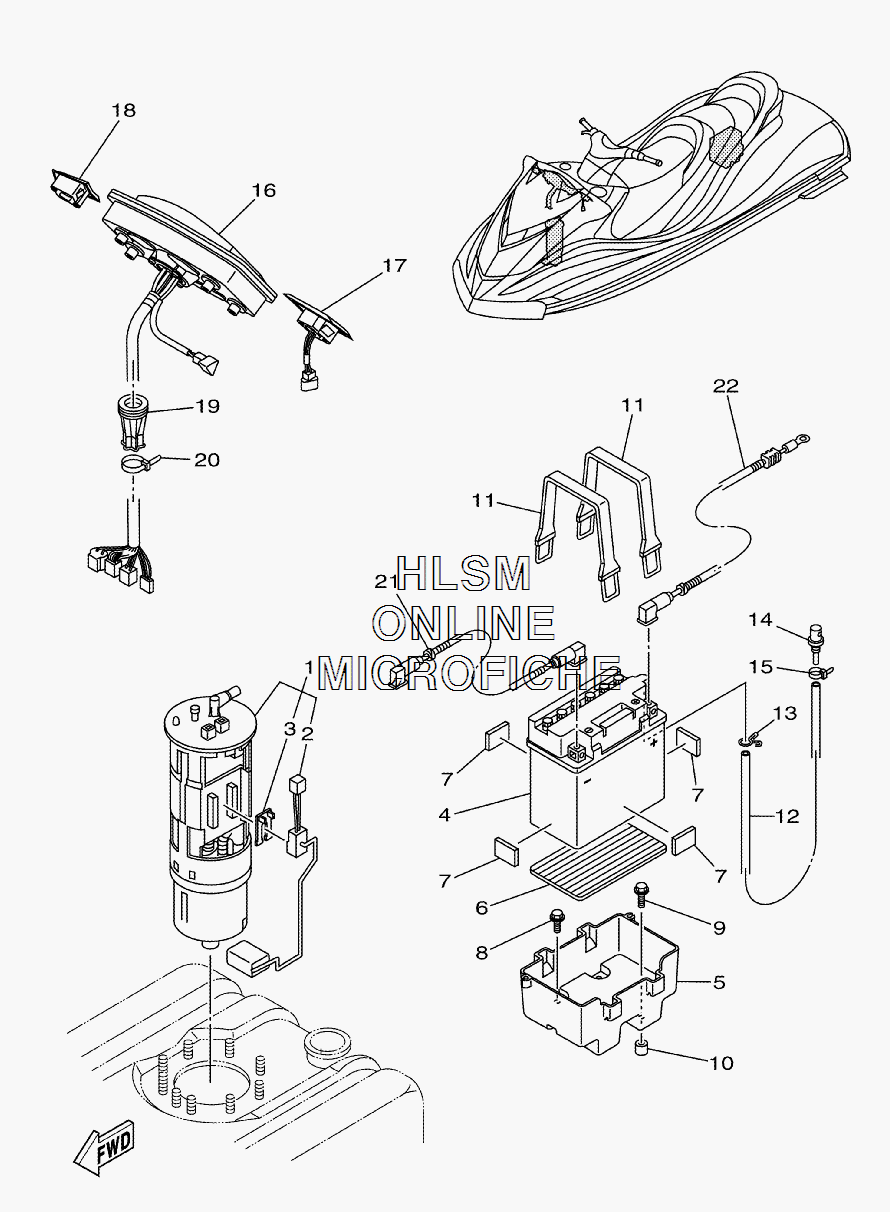

ELECTRICAL 3 для Yamaha FX - 2008 года выпуска`
-
№АртикулНазвание
-
160E-13907-02-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
260E-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
4EU0-82110-09-00 BATTERY ASSY (YB16CL-B)BATTERY ASSY (YB16CL-B)
-
5GP7-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
6F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
7EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
890119-069US-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990119-06832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10F1B-6821G-01-00 PLATE, BATTERYPLATE, BATTERY
-
11EU0-U821D-00-00 BAND, BATTERY 1BAND, BATTERY 1
-
12F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1390467-089U1-00 CLIPCLIP
-
14GJ3-6215F-00-00 NIPPLENIPPLE
-
1590465-11829-00 CLAMPCLAMP
-
16F1Y-6820A-10-00 METER ASSYMETER ASSY
-
17F1X-68090-00-00 SWITCH ASSYSWITCH ASSY
-
18F1Y-68322-00-00 PANELPANEL
-
19F1X-U822E-00-00 GROMMETGROMMET
-
2090464-32801-00 CLAMPCLAMP
-
216D3-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2260E-82117-10-00 WIRE, LEADWIRE, LEAD
