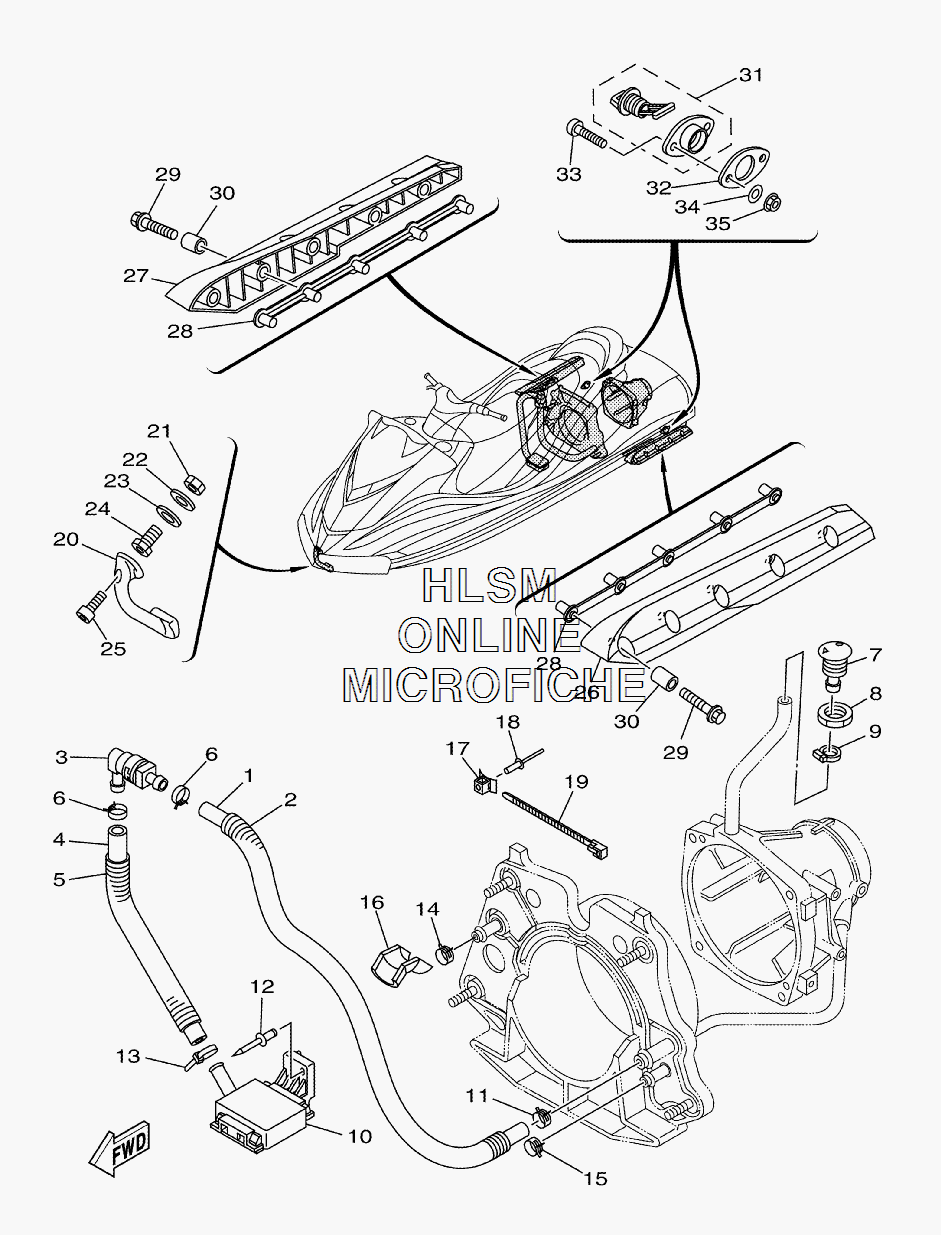

HULL FITTINGS W/ SPONSONS для Yamaha FX - 2008 года выпуска`
-
№АртикулНазвание
-
190445-20804-00 HOSE (L860)HOSE (L860)
-
290446-27M73-00 HOSE (L700)HOSE (L700)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20800-00 HOSE (L500)HOSE (L500)
-
590446-27M55-00 TUBE (L400)TUBE (L400)
-
690467-18804-00 CLIPCLIP
-
7FN8-6269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 NYLON CLIP 1NYLON CLIP 1
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190467-21800-00 CLIP, SCISSORCLIP, SCISSOR
-
1290267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1390601-200U1-00 BAND HOSE 50BAND HOSE 50
-
1490467-21800-00 CLIP, SCISSORCLIP, SCISSOR
-
1590467-200A0-00 CLIPCLIP
-
16F1S-U828H-01-00 TRIM, 1TRIM, 1
-
1790600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1890267-48802-00 RIVET, BLINDRIVET, BLIND
-
1990464-32801-00 CLAMPCLAMP
-
20F0X-61624-00-00 BOWEYE 1BOWEYE 1
-
2199780-12600-00 NUT, HEX. (COARSE)NUT, HEX. (COARSE)
-
2292990-12200-00 WASHER, PLAINWASHER, PLAIN
-
23F0X-61637-00-00 WASHERWASHER
-
24F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2590110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
26F1S-U883N-01-00 STABILIZER LH (BLACK)STABILIZER LH (BLACK)
-
27F1S-U883P-01-00 STABILIZER RH (BLACK)STABILIZER RH (BLACK)
-
28F1X-U883T-00-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
2990105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
30F1K-U8169-00-00 SPACERSPACER
-
31F1S-U2280-00-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
32F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
339788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
349299R-05200-00 WASHERWASHER
-
359572R-05300-00 NUT, FLANGENUT, FLANGE
