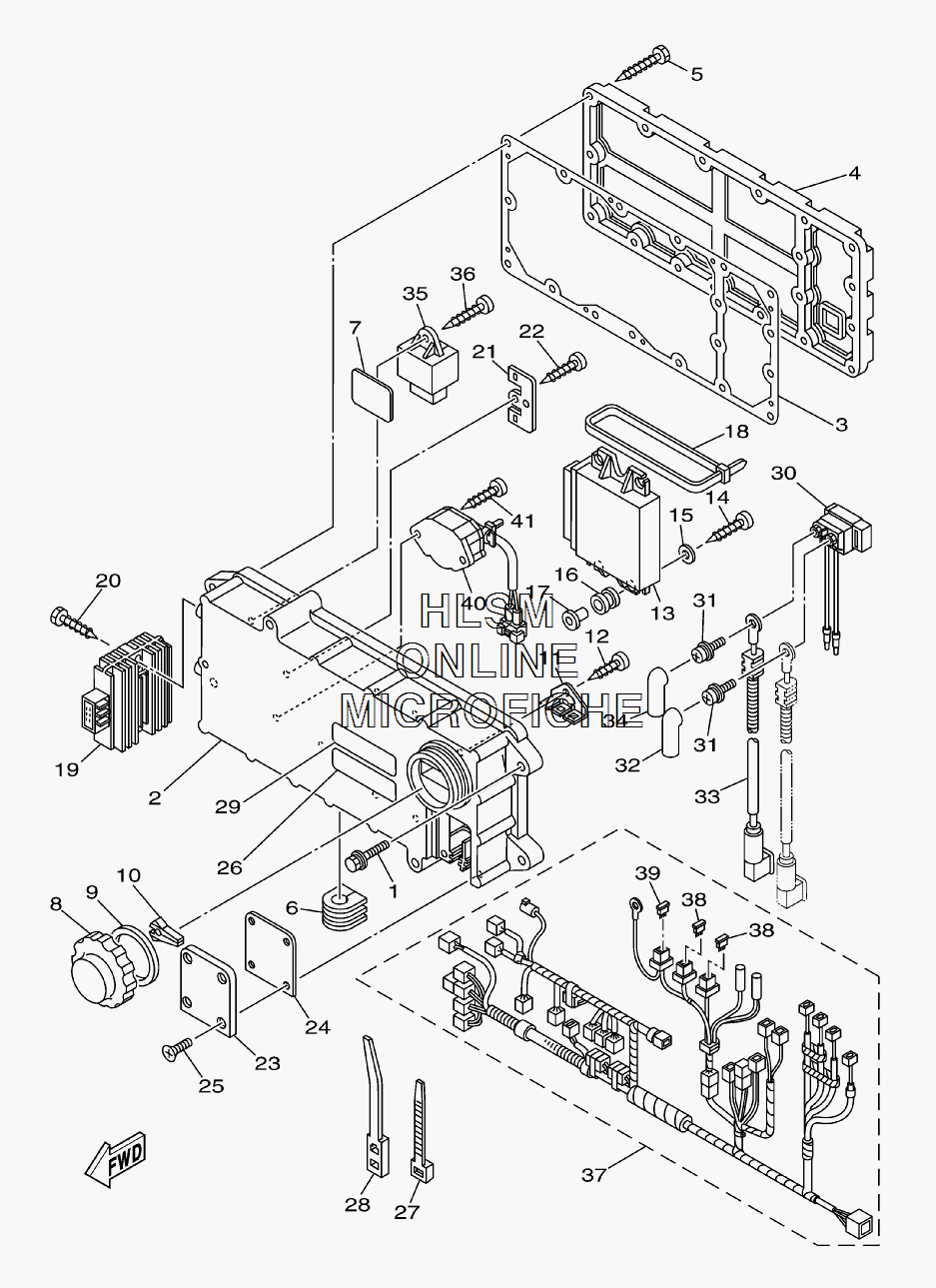

ELECTRICAL 1 для Yamaha FX - 2008 года выпуска`
-
№АртикулНазвание
-
190119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26B6-8552A-00-00 HOUSINGHOUSING
-
360E-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
460E-8552E-00-00 COVER, CASECOVER, CASE
-
597780-60430-00 SCREW, TAPPINGSCREW, TAPPING
-
690480-01012-00 GROMMETGROMMET
-
760E-84742-00-00 SEAT, BASESEAT, BASE
-
866V-8132W-00-00 CAPCAP
-
966V-81844-00-00 GASKETGASKET
-
1067F-2812A-00-00 PULLER, FUSEPULLER, FUSE
-
1160E-82153-00-00 STAY, FUSE HOLDERSTAY, FUSE HOLDER
-
1297780-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
1360E-8591A-30-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
1497780-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
1590201-06M05-00 WASHER, PLATEWASHER, PLATE
-
166A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
1790387-06119-00 COLLARCOLLAR
-
1890464-99003-00 CLAMPCLAMP
-
196D3-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2097780-60430-00 SCREW, TAPPINGSCREW, TAPPING
-
2160E-87179-00-00 PLATE, COUPLERPLATE, COUPLER
-
2297780-60516-00 SCREW, TAPPINGSCREW, TAPPING
-
2360E-81916-00-00 COVER, TERMINALCOVER, TERMINAL
-
2460E-82533-00-00 GASKETGASKET
-
2598680-05520-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
266B6-83623-00-00 MARK 3MARK 3
-
2790465-13M97-00 CLAMPCLAMP
-
2890464-50002-00 CLAMPCLAMP
-
2960E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
306B6-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
3190159-06008-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
3266V-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
3360E-82117-20-00 WIRE, LEADWIRE, LEAD
-
3466V-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
3560E-81950-00-00 RELAY ASSYRELAY ASSY
-
3697780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
3760E-8259L-22-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
3867F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
3967F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
4060E-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
4197780-60520-00 SCREW, TAPPINGSCREW, TAPPING
