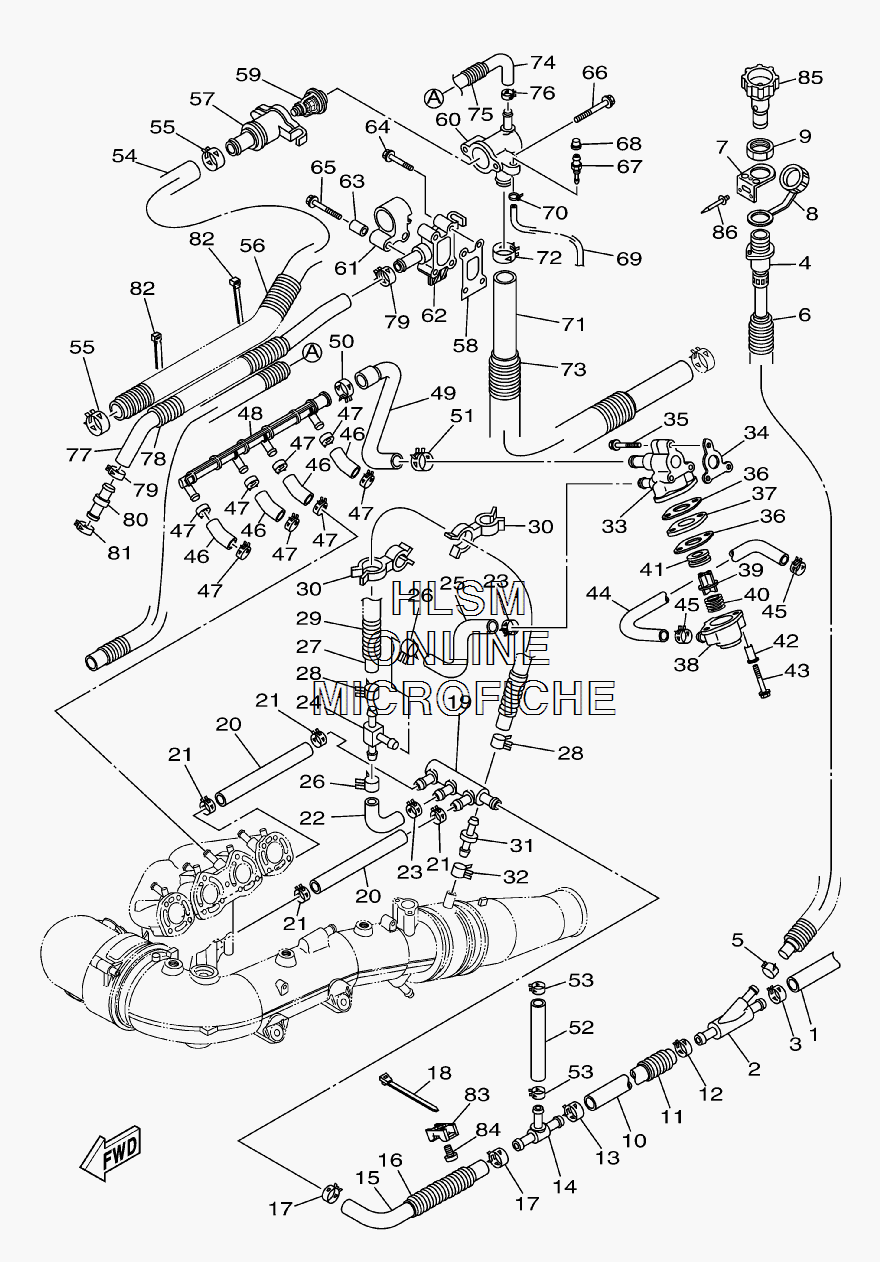

EXHAUST - HOSES для Yamaha FX CRUISER - 2008 года выпуска
-
№АртикулНазвание
-
160E-E243A-00-00 HOSE 1HOSE 1
-
260E-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
390467-200A0-00 CLIPCLIP
-
460E-12580-00-00 JOINT ASSYJOINT ASSY
-
590467-150A0-00 CLIPCLIP
-
690446-24M79-00 HOSE (L230)HOSE (L230)
-
760E-12443-00-00 STAYSTAY
-
8682-84385-01-00 CAP, 1CAP, 1
-
9EU0-61652-00-00 NUTNUT
-
1090445-21804-00 HOSE (L370)HOSE (L370)
-
1190447-22003-00 HOSE, WITH SPRING (L300)HOSE, WITH SPRING (L300)
-
1290467-200A0-00 CLIPCLIP
-
1390467-200A0-00 CLIPCLIP
-
1460E-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
1560E-1243E-00-00 HOSE 2HOSE 2
-
1690447-22001-00 HOSE, WITH SPRING (L100)HOSE, WITH SPRING (L100)
-
1790467-200A0-00 CLIPCLIP
-
1890464-55001-00 CLAMPCLAMP
-
1960E-12582-00-00 JOINT, HOSE 2JOINT, HOSE 2
-
2090445-18003-00 HOSE (L150)HOSE (L150)
-
2190467-160A0-00 CLIPCLIP
-
2260E-1243F-10-00 HOSE, 3HOSE, 3
-
2390467-160A0-00 CLIPCLIP
-
2460E-12598-00-00 JOINT, HOSE 5JOINT, HOSE 5
-
2590445-18M03-00 HOSE (L108)HOSE (L108)
-
2690467-160A0-00 CLIPCLIP
-
2790445-14M26-00 HOSE (L880)HOSE (L880)
-
2890467-130A0-00 CLIPCLIP
-
2990446-20M70-00 HOSE (L800)HOSE (L800)
-
3090464-21001-00 CLAMPCLAMP
-
3160E-1247A-00-00 JOINT 2JOINT 2
-
3290467-160A0-00 CLIPCLIP
-
3360E-12479-00-94 JOINTJOINT
-
3460E-12434-00-00 GASKETGASKET
-
3597595-06545-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3660E-12414-00-00 GASKET, COVERGASKET, COVER
-
3760E-12535-00-00 PLATEPLATE
-
3860E-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
396G5-12416-00-00 VALVE, PRESSURE CONTROLVALVE, PRESSURE CONTROL
-
4090501-16M11-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4190480-20M05-00 GROMMETGROMMET
-
4290387-06M65-00 COLLARCOLLAR
-
4397595-06540-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4490445-18M13-00 HOSE (L350)HOSE (L350)
-
4590467-160A0-00 CLIPCLIP
-
4660E-12576-00-00 HOSE 1HOSE 1
-
4790467-150A1-00 CLIPCLIP
-
4860E-12469-00-00 JOINT 1JOINT 1
-
4960E-12577-00-00 HOSE 2HOSE 2
-
5090467-220A2-00 CLIPCLIP
-
5190467-200A0-00 CLIPCLIP
-
5290445-18004-00 HOSE (L130)HOSE (L130)
-
5390467-160A0-00 CLIPCLIP
-
5490445-26003-00 HOSE (L365)HOSE (L365)
-
5590467-240A0-00 CLIPCLIP
-
5690447-28006-00 HOSE, WITH SPRING (L280)HOSE, WITH SPRING (L280)
-
5760E-12417-10-94 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
5860E-12435-00-00 GASKETGASKET
-
5960E-12411-01-00 THERMOSTATTHERMOSTAT
-
6060E-12413-10-94 COVER, THERMOSTATCOVER, THERMOSTAT
-
616B6-12499-00-00 JOINTJOINT
-
626D3-12446-00-00 JOINTJOINT
-
6390387-06083-00 COLLARCOLLAR
-
6490105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
6590105-06054-00 BOLT, FLANGEBOLT, FLANGE
-
6690105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
6761L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
68663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
6990445-09M33-00 HOSE (L580)HOSE (L580)
-
7090465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
7190445-25003-00 HOSE (L900)HOSE (L900)
-
7290467-240A0-00 CLIPCLIP
-
7390447-28002-00 HOSE, WITH SPRING (L800)HOSE, WITH SPRING (L800)
-
7460E-12552-00-00 HOSE 8HOSE 8
-
7590447-22002-00 HOSE, WITH SPRING (L1150)HOSE, WITH SPRING (L1150)
-
7690467-120A0-00 CLIPCLIP
-
7790445-21004-00 HOSE (L530)HOSE (L530)
-
7890446-27M55-00 TUBE (L400)TUBE (L400)
-
7990467-200A0-00 CLIPCLIP
-
8060E-51142-00-00 CONNECTIONCONNECTION
-
8190467-200A0-00 CLIPCLIP
-
8290465-14M66-00 CLAMPCLAMP
-
8360E-1244E-00-00 BRACKET 1BRACKET 1
-
8497980-05210-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
8567X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
8690267-489U1-00 RIVET, BLINDRIVET, BLIND
